7962A Series
Manufacturer: Belden Inc.
Beta
⌘K

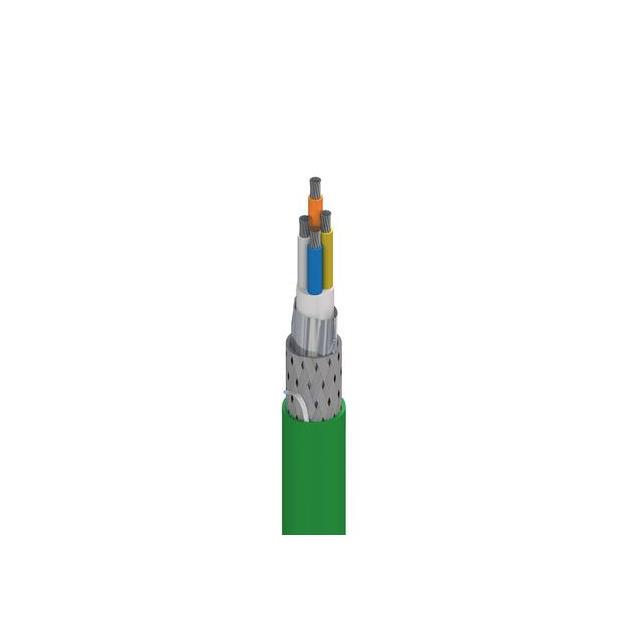

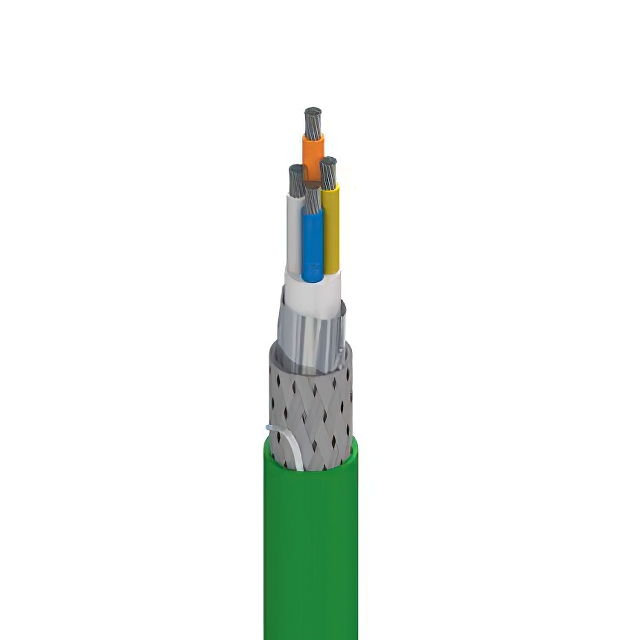

CABLE CAT5E 4COND 22AWG
| Part | Shield Coverage | Shield Material | Number of Conductors | Ratings | Conductor Material | Conductor Insulation | Conductor Insulation | Usage | Jacket (Insulation) Material | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] | Shield Type | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | 4 | UL Style 20626 | Copper Tinned | Polyolefin | PO | Industrial Network | Thermoplastic Elastomer (TPE) | Multi-Pair Cat5e | 80 °C | -40 C | 22 AWG | 34 AWG | 19 | 2000 ft | 609.6 m | Braid Foil | Flame Retardant Oil Resistant Rip Cord UV Resistant | 0.272 in | 6.91 mm | Green | 300 VDC | ||
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | 4 | UL Style 20626 | Copper Tinned | Polyolefin | PO | Industrial Network | Thermoplastic Elastomer (TPE) | Multi-Pair Cat5e | 80 °C | -40 C | 22 AWG | 34 AWG | 19 | Braid Foil | Flame Retardant Oil Resistant Rip Cord UV Resistant | 0.272 in | 6.91 mm | Green | 300 VDC | 304.8 m | 1000 ft |
