Z-PACK Series

Catalog

HIGH SPEED / MODULAR CONNECTORS HM-ZD 4PR HDR 96P 5.3

Part	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Connector Type	Number of Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Pitch	Pitch	Connector Usage	Number of Positions Loaded	Number of Columns	Connector Style	Termination	Features	Color	Pitch [x]	Pitch [x]

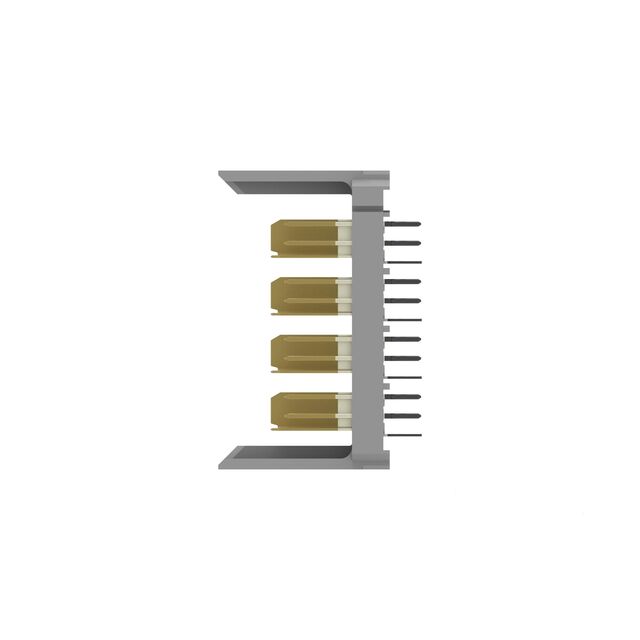

TE Connectivity AMP Connectors 6469287-1	UL94 V-0	105 ░C	-65 ░C	0.7 A	250 V	96	48	Header Male Pins and Blades	8	Through Hole	30 Áin	0.76 Ám	Gold	144	2.5 mm	0.098 in	Backplane	All	12	High Speed	Press-Fit
TE Connectivity AMP Connectors 223000-3								Header Male Pins	5	Through Hole	30 Áin	0.76 Ám	Gold	90				All		Futurebus	Solder	Board Guide	Natural	0.079 in	2 mm
