Junior Timer Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

AUTOMOTIVE CONNECTORS JR TMR WIRE SEAL CO

Part	Note	Mounting Type	Number of Positions	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Rows [custom]	Insulation Material	Color	Contact Type	Contact Termination	Row Spacing [x]	Row Spacing [x]	Features	Number of Rows	Fastening Type	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [custom]	Wire Gauge [custom]	Type
TE Connectivity AMP Connectors 281810-1	Contacts Not Included	Free Hanging (In-Line)	25	0.197 in	5 mm	-30 ░C	105 ░C	Receptacle	2	Glass Filled Nylon 6/6 Polyamide (PA66)	Black	Female Socket	Crimp	5 mm	0.197 in	Splash-Proof

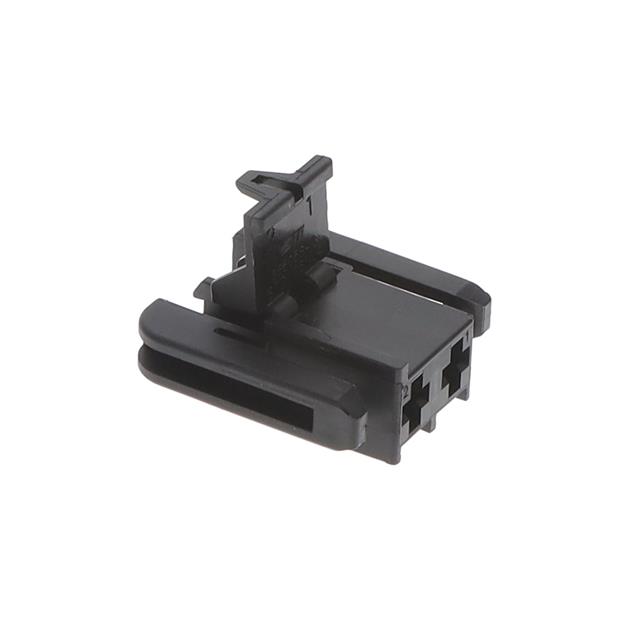

TE Connectivity AMP Connectors 365058-3		Free Hanging (In-Line)	2					Receptacle		Nylon 6/6 Polyamide (PA66)	Black	Female Socket	Crimp				1
TE Connectivity AMP Connectors 365058-3	Contacts Not Included	Free Hanging (In-Line)	2					Receptacle		Nylon 6/6 Polyamide (PA66)	Black	Female Socket	Crimp				1
TE Connectivity AMP Connectors 827603-1	Contacts Not Included	Free Hanging (In-Line)	12	0.197 in	5 mm			Receptacle	2	Glass Filled Nylon 6/6 Polyamide (PA66)	Black	Female Socket	Crimp	5 mm	0.197 in
TE Connectivity AMP Connectors 1-825414-5		Free Hanging (In-Line)	2					Receptacle		Glass Filled Nylon 6/6 Polyamide (PA66)	Black	Female Socket	Crimp				1	Latch Holder
TE Connectivity AMP Connectors 827551-3		Free Hanging (In-Line)	2	0.197 in	5 mm			Receptacle		Glass Filled Nylon 6/6 Polyamide (PA66)	Black	Female Socket	Crimp				1
TE Connectivity AMP Connectors 881647-1		Panel Mount	8	0.197 in	5 mm	-40 C	80 °C	Receptacle	2	Nylon Polyamide (PA)				5.8 mm	0.228 "
TE Connectivity AMP Connectors 925596-2													Crimp						Socket	15 AWG	20 AWG	Tin
TE Connectivity AMP Connectors 927770-3													Crimp						Socket			Tin	1 Ám	39.4 Áin	17	20 AWG	Power
TE Connectivity AMP Connectors 962191-1		Free Hanging (In-Line)	8	0.236 in	6 mm			Receptacle	2	Nylon 6/6 Polyamide (PA66)	Beige	Female Socket	Crimp	5 mm	0.197 in			Latch Lock
