RA41631 Series
Manufacturer: E-Switch
Beta
⌘K

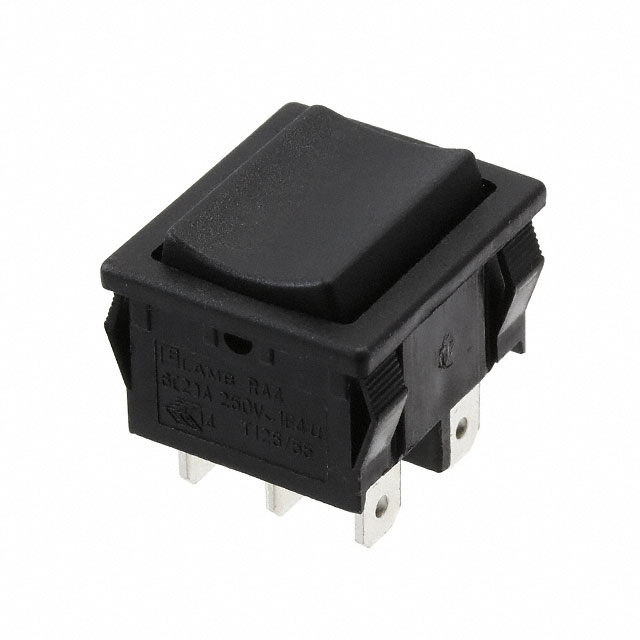

SWITCH ROCKER DPDT 10A 125V
| Part | Electrical Life | Voltage Rating - AC | Actuator Type | Color - Actuator/Cap | Approval Agency | Termination Style | Actuator Marking | Current Rating (Amps) | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Switch Function | Mounting Type | Circuit | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | 125 V | Concave (Curved) | Black | cUL UL | Quick Connect | No Marking | 10 A | 19.2 mm | 22 mm | On-Off-On | Panel Mount Snap-In | DPDT | -20 ░C | 105 ░C |
