HLW9S Series

Catalog

CONN FFC FPC VERT 9POS 1MM PCB

Part	Mating Cycles	Housing Color	FFC, FCB Thickness	Connector/Contact Type	Flat Flex Type	Pitch	Pitch	Number of Positions	Mounting Type	Material Flammability Rating	Contact Material	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Voltage Rating	Housing Material	Height Above Board [z]	Height Above Board [z]

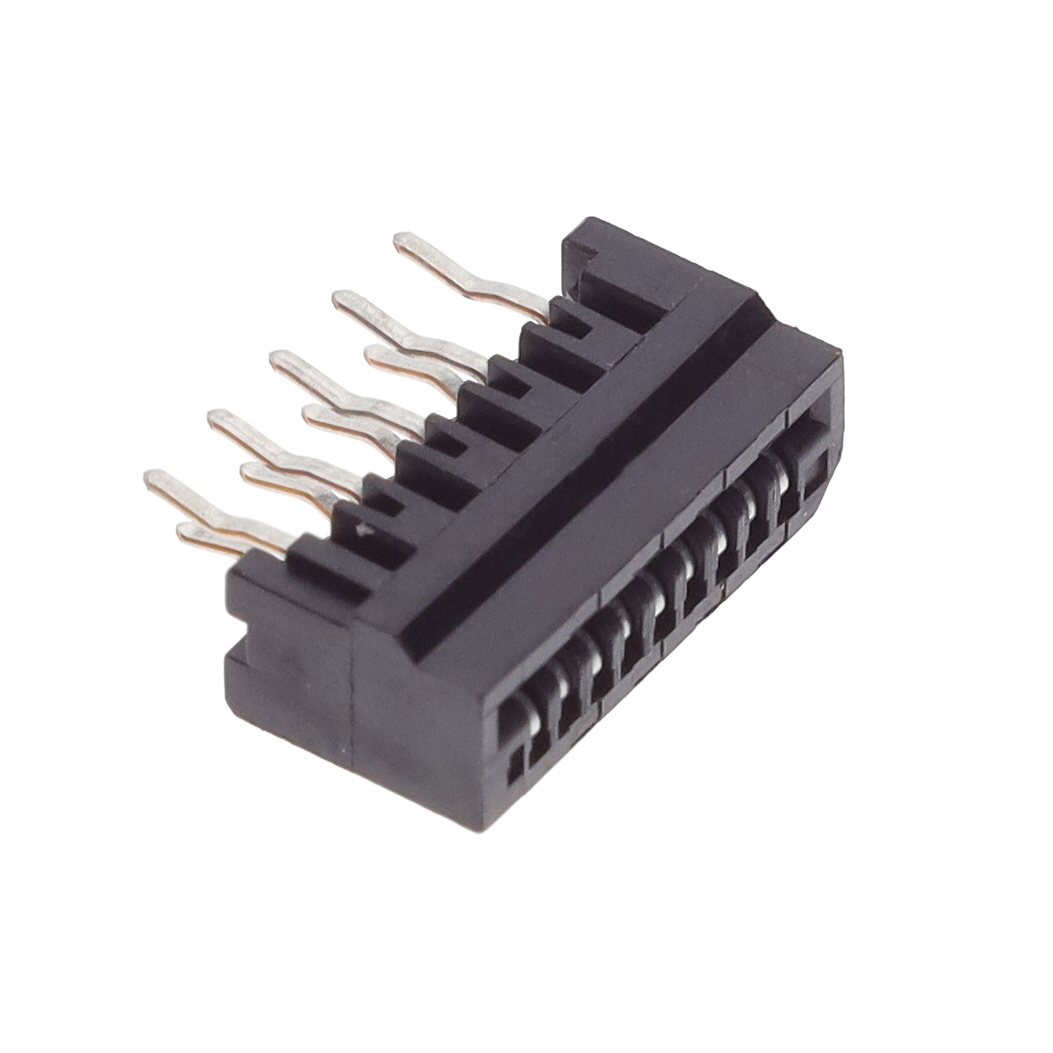

Amphenol ICC (FCI) HLW9S-2C7LF	30	Black	0.33 mm	Contacts Vertical - 1 Sided	FFC FPC	1 mm	0.039 in	9	Through Hole	UL94 V-0	Phosphor Bronze	Tin	-55 C	85 °C	Kinked Pin	100 V	Polybutylene Terephthalate (PBT) Glass Filled	5.9 mm	0.232 "
