2SA1552 Series

Bipolar Transistor, (-)160V, (-)1.5A, Low VCE(sat) (PNP)NPN Single TP/TP-FA

Catalog

Bipolar Transistor, (-)160V, (-)1.5A, Low VCE(sat) (PNP)NPN Single TP/TP-FA

Part	Current - Collector (Ic) (Max) [Max]	Mounting Type	Package / Case	Operating Temperature	Current - Collector Cutoff (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce	Transistor Type	Frequency - Transition	Power - Max [Max]	Vce Saturation (Max) @ Ib, Ic	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]

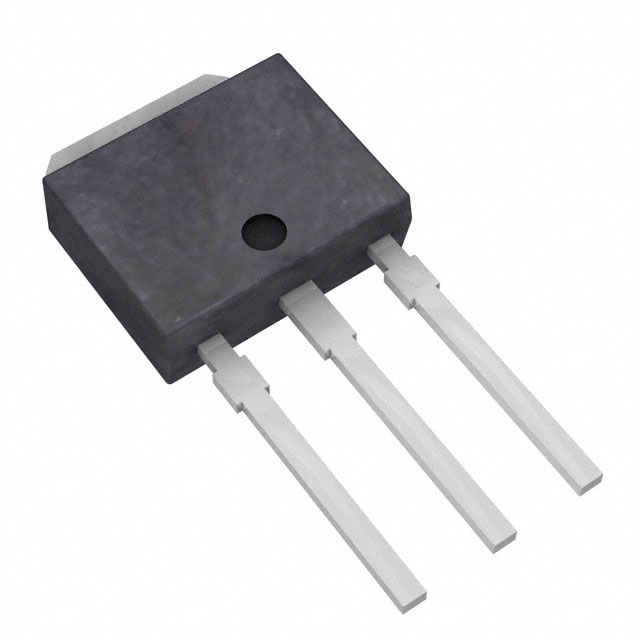

ON Semiconductor 2SA1552T-H	1.5 A	Through Hole	IPAK TO-251-3 Short Leads TO-251AA	150 °C	1 µA	200 hFE	PNP	120 MHz	1 W	500 mV	TP	160 V
ON Semiconductor 2SA1552T-TL-E	1.5 A	Surface Mount	DPAK (2 Leads + Tab) SC-63 TO-252-3	150 °C	1 µA	200 hFE	PNP	120 MHz	1 W	500 mV	TP-FA	160 V
ON Semiconductor 2SA1552S-TL-E	1.5 A	Surface Mount	DPAK (2 Leads + Tab) SC-63 TO-252-3	150 °C	1 µA		PNP	120 MHz	1 W	500 mV	TP-FA	160 V	140

Catalog

Bipolar Transistor, (-)160V, (-)1.5A, Low VCE(sat) (PNP)NPN Single TP/TP-FA

Key Features

• Adoption of FBET, MBIT processes

• High voltage and large current capacity.

• Ultrahigh-speed switching.

• Small and slim package permitting 2SA1552/2SC4027-applied sets to be made more compact.

Description

2SC4027 is Bipolar Transistor, (-)160V, (-)1.5A, Low VCE(sat) (PNP)NPN Single TP/TP-FA for high-Voltage switching applications. 2SA1552 is a complementary PNP bipolar transistor.
