71K542 Series
Manufacturer: Rosenberger
Beta
⌘K

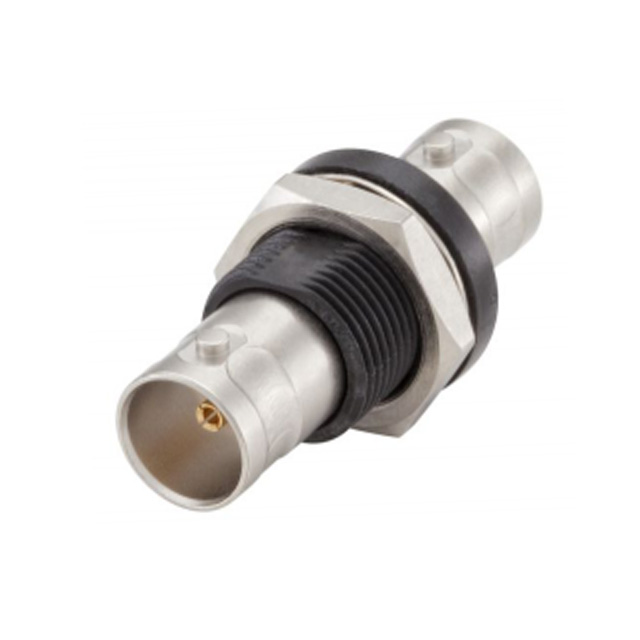

CONN ADAPT JACK-JACK BNC 75 OHM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Includes | Dielectric Material | Body Material | Body Finish | Style | Fastening Type | Convert From (Adapter End) | Mounting Type | Impedance | Frequency - Max [Max] | Adapter Series | Convert To (Adapter End) | Center Contact Plating | Conversion Type | Adapter Type | Center Gender | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | -25 °C | 110 °C | 500 | 1 Connector 1 Lockwasher 1 Nut | Polytetrafluoroethylene (PTFE) | Brass | Nickel | Straight | Bayonet Lock | BNC Jack Female Socket | Panel Mount | 75 Ohms | 4 GHz | BNC to BNC | BNC Jack Female Socket | Gold | Same Series | Jack to Jack | Female to Female | Flange |
