1571984 Series

Catalog

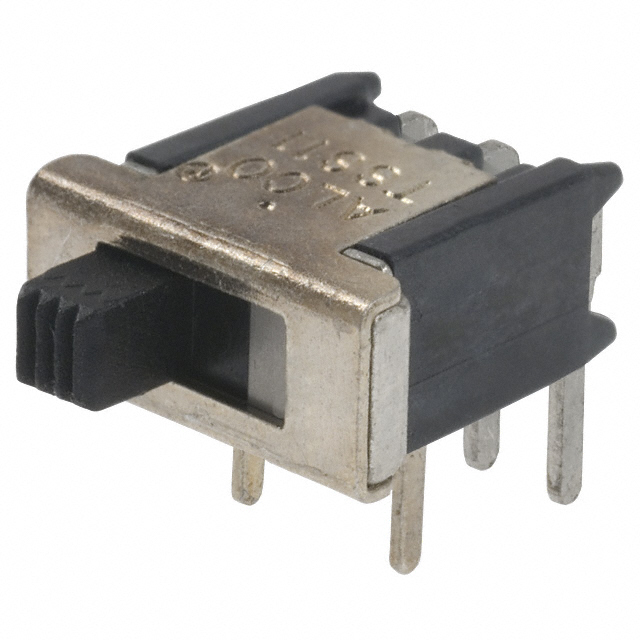

SWITCH SLIDE SPDT 0.4VA 20V

Part	Actuator Type	Circuit	Switch Travel	Electrical Life	Contact Timing	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Actuator Length [x]	Switch Function	Voltage Rating - DC	Contact Material	Mounting Type	Mechanical Life	Termination Style	Current Rating (Amps)	Operating Force [Max]	Operating Force [Min]	Voltage Rating - AC	Contact Finish	Features
TE Connectivity Raychem Cable Protection 1571984-1	Standard	SPDT	3.05 mm	60000 Cycles	Non-Shorting	-20 C	80 C	Polybutylene Terephthalate (PBT)	2.79 mm	On-On	20 V	Copper	Through Hole Right Angle	60000 Cycles	PC Pin	0.4 VA	600 gf	150 gf	20 V	Gold	Epoxy Sealed Terminals
TE Connectivity Raychem Cable Protection 1571984-2	Standard	SPDT	3.05 mm	60000 Cycles	Non-Shorting	-20 C	80 C	Polybutylene Terephthalate (PBT)	2.79 mm	On-Off-On	20 V	Copper	Through Hole Right Angle	60000 Cycles	PC Pin	0.4 VA	600 gf	150 gf	20 V	Gold	Epoxy Sealed Terminals
