1571986 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

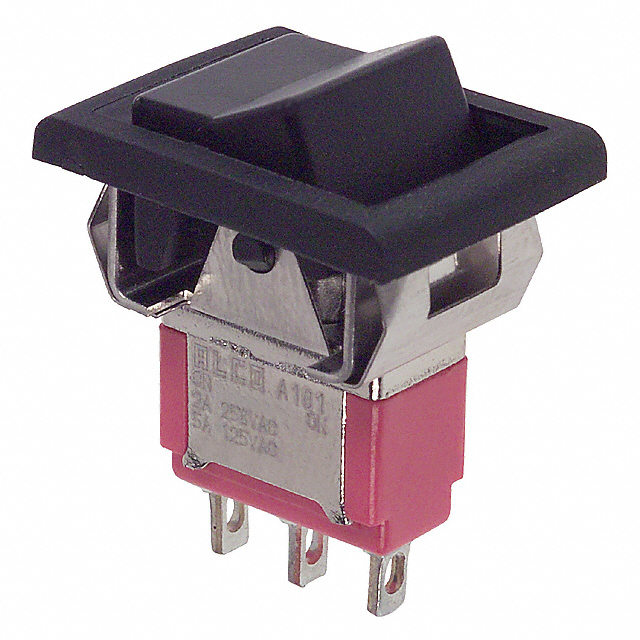

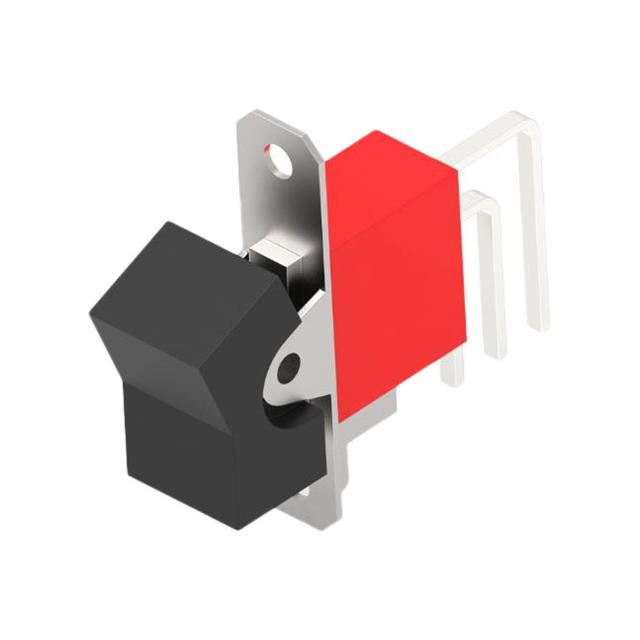

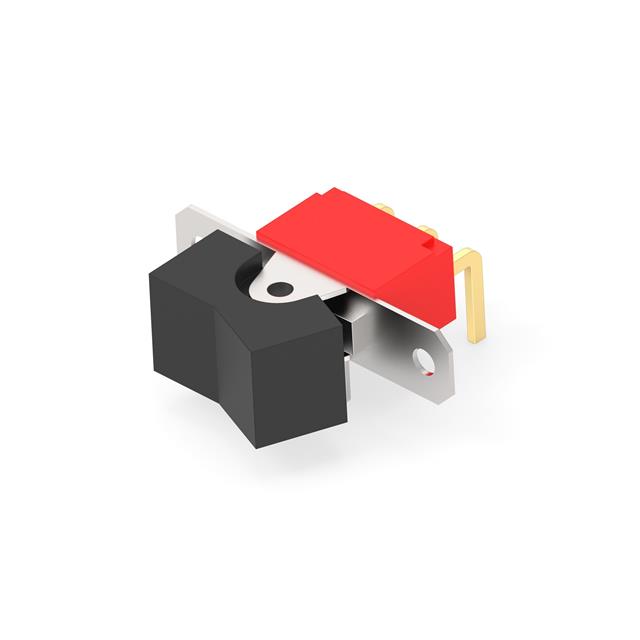

SWITCH ROCKER SPDT 5A 120V
| Part | Mounting Type | Actuator Type | Actuator Marking | Switch Function | Voltage Rating - DC | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Current Rating (Amps) | Electrical Life | Color - Actuator/Cap | Voltage Rating - AC | Termination Style | Features | Circuit | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Panel Mount Snap-In | Concave (Standard V) | No Marking | On-On | 28 V | 15.75 mm | 12.7 mm | 5 A | 6000 Cycles | Red | 120 V | Solder Lug | Epoxy Sealed Terminals | SPDT | -30 ░C | 85 °C |
 TE Connectivity Raychem Cable Protection | Panel Mount Snap-In | Concave (Standard V) | No Marking | On-On | 28 V | 15.24 mm | 12.7 mm | 5 A | 6000 Cycles | Black | 120 V | Solder Lug | Epoxy Sealed Terminals | SPDT | -30 ░C | 85 °C |
TE Connectivity Raychem Cable Protection | Flange Panel Mount | Concave (Standard V) | No Marking | On-On | 28 V | 17.96 mm | 10.62 mm | 5 A | 6000 Cycles | Black | 120 V | PC Pin | Epoxy Sealed Terminals | SPDT | -30 ░C | 85 °C |
TE Connectivity Raychem Cable Protection | Panel Mount Snap-In | Concave (Standard V) | No Marking | On-On | 20 V | 15.75 mm | 12.7 mm | 0.4 VA | 6000 Cycles | Black | 20 V | PC Pin | Epoxy Sealed Terminals | SPDT | -30 ░C | 85 °C |
TE Connectivity Raychem Cable Protection | Flange Panel Mount | Concave (Standard V) | No Marking | On-On | 20 V | 17.96 mm | 10.62 mm | 0.4 VA | 6000 Cycles | Black | 20 V | Solder Lug | Epoxy Sealed Terminals | SPDT | -30 ░C | 85 °C |
TE Connectivity Raychem Cable Protection | Through Hole | Concave (Standard V) | No Marking | On-On | 28 V | 5 A | 6000 Cycles | Red | 120 V | PC Pin | Epoxy Sealed Terminals | SPDT | -30 ░C | 85 °C | ||
TE Connectivity Raychem Cable Protection | Flange Panel Mount | Concave (Standard V) | No Marking | Mom-Off-Mom | 28 V | 27.81 mm | 16.46 mm | 5 A | 6000 Cycles | Black | 120 V | Solder Lug | Epoxy Sealed Terminals | SPDT | -30 ░C | 85 °C |
 TE Connectivity Raychem Cable Protection | Right Angle Through Hole Vertical | Concave (Standard V) | No Marking | On-On | 28 V | 5 A | 6000 Cycles | Black | 120 V | PC Pin | Epoxy Sealed Terminals | SPDT | -30 ░C | 85 °C | ||
TE Connectivity Raychem Cable Protection | Through Hole | Concave (Standard V) | No Marking | On-On | 28 V | 5 A | 6000 Cycles | Black | 120 V | PC Pin | Epoxy Sealed Terminals | SPDT | -30 ░C | 85 °C | ||
 TE Connectivity Raychem Cable Protection | Through Hole Right Angle | Concave (Standard V) | No Marking | On-On | 20 V | 0.4 VA | 6000 Cycles | Black | 20 V | PC Pin | Epoxy Sealed Terminals | SPDT | -30 ░C | 85 °C |
