051065 Series

Manufacturer: Molex

Catalog

CONN RCPT HSG 2POS 2.00MM

Part	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Connector Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Insulation Material	Fastening Type	Contact Type	Note	Number of Positions

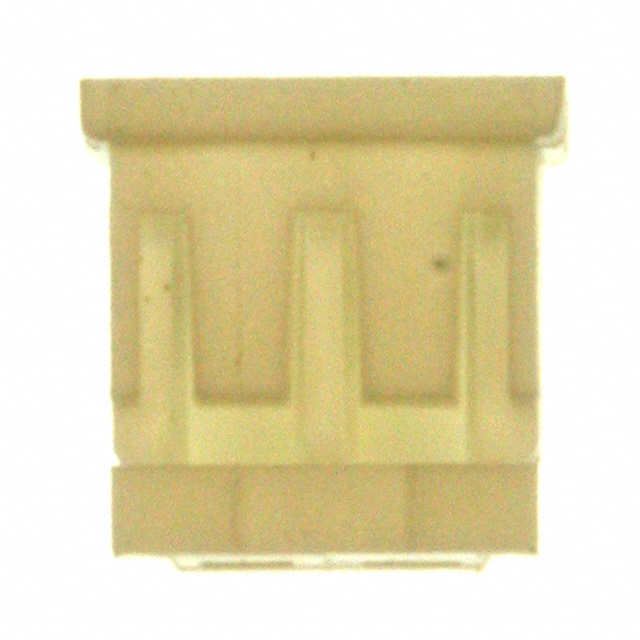

Molex 0510650200	0.079 in	2 mm	Free Hanging (In-Line)	1	Receptacle	Natural	105 ░C	-55 °C	Crimp	Polybutylene Terephthalate (PBT) Polyester	Friction Lock	Female Socket	Contacts Not Included	2
Molex 0510650602

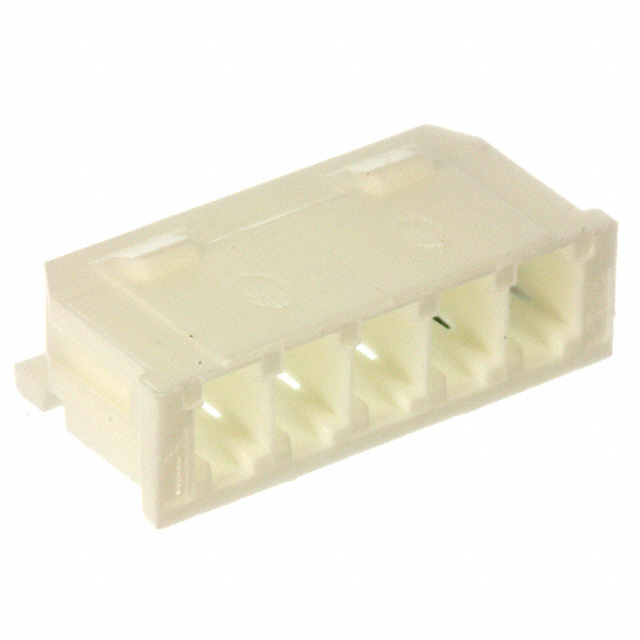

Molex 0510650500	0.079 in	2 mm	Free Hanging (In-Line)	1	Receptacle	Natural	105 ░C	-55 °C	Crimp	Polybutylene Terephthalate (PBT) Polyester	Friction Lock	Female Socket	Contacts Not Included
Molex 0510650300	0.079 in	2 mm	Free Hanging (In-Line)	1	Receptacle	Natural	105 ░C	-55 °C	Crimp	Polybutylene Terephthalate (PBT) Polyester	Friction Lock	Female Socket	Contacts Not Included

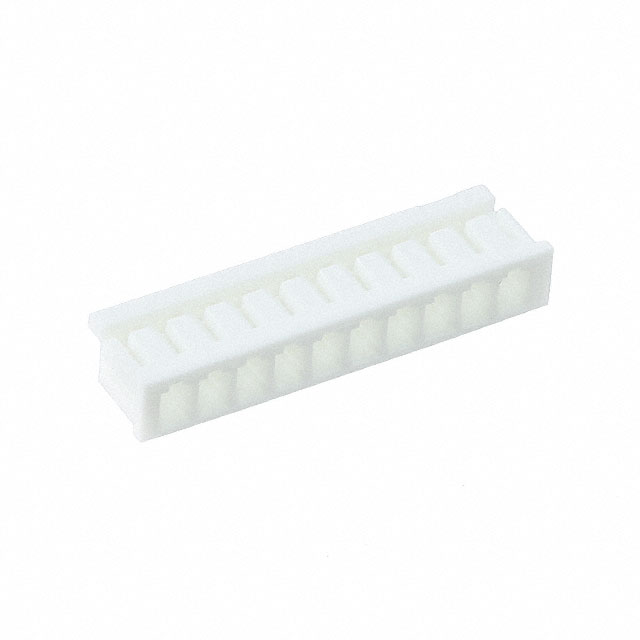

Molex 0510651000	0.079 in	2 mm	Free Hanging (In-Line)	1	Receptacle	Natural	105 ░C	-55 °C	Crimp	Polybutylene Terephthalate (PBT) Polyester	Friction Lock	Female Socket	Contacts Not Included	10

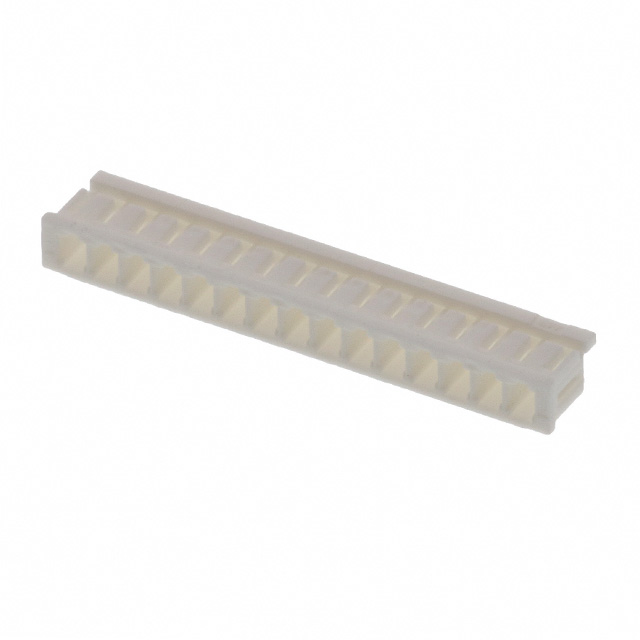

Molex 0510651500	0.079 in	2 mm	Free Hanging (In-Line)	1	Receptacle	Natural	105 ░C	-55 °C	Crimp	Polybutylene Terephthalate (PBT) Polyester	Friction Lock	Female Socket	Contacts Not Included	15

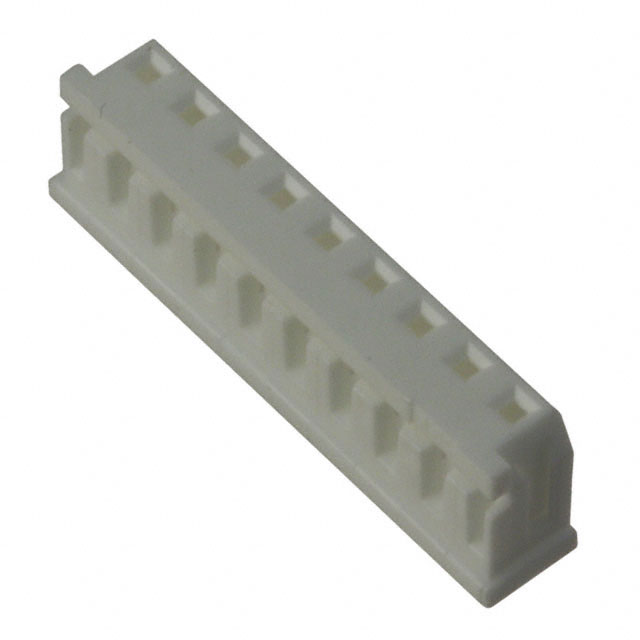

Molex 0510650900	0.079 in	2 mm	Free Hanging (In-Line)	1	Receptacle	Natural	105 ░C	-55 °C	Crimp	Polybutylene Terephthalate (PBT) Polyester	Friction Lock	Female Socket	Contacts Not Included	9
