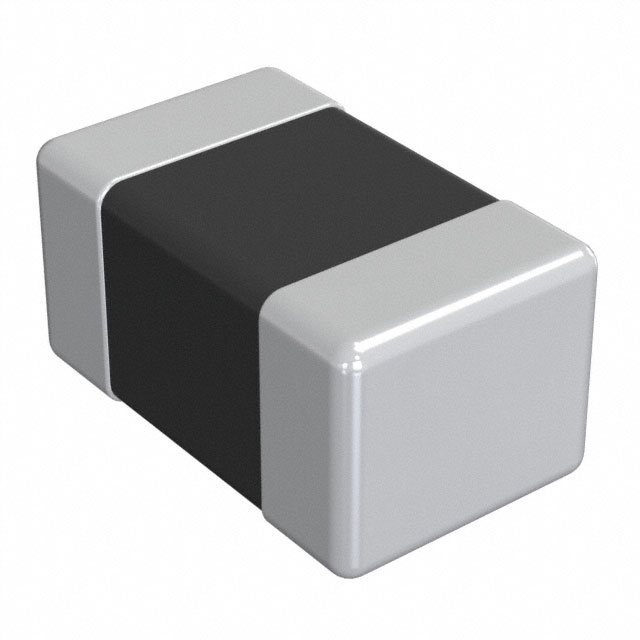

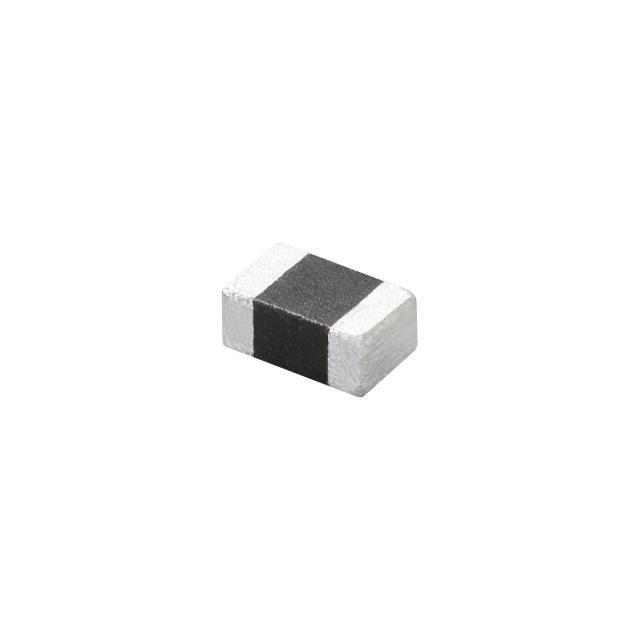

DFE201210S Series

Catalog

FIXED IND 1UH 2.3A 70 MOHM SMD

Part	DC Resistance (DCR)	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Saturation (Isat)	Package / Case	Tolerance	Material - Core	Type	Supplier Device Package	Shielding	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Inductance Frequency - Test	DC Resistance (DCR) [Max]
Murata Electronics DFE201210S-1R0M=P2	70 mOhm	Surface Mount	0.039 in	1 mm	0.079 in	0.047 in	1.2 mm	2 mm	3.2 A	0805	20 %	Metal	Drum Core Wirewound	0805 (2012 Metric)	Shielded	1 µH	125 °C	-40 C	2.3 A	1 MHz
Murata Electronics DFE201210S-1R5M=P2		Surface Mount	0.039 in	1 mm	0.079 in	0.047 in	1.2 mm	2 mm	2.7 A	0805	20 %	Metal	Drum Core Wirewound	0805	Shielded	1.5 µH	125 °C	-40 C	2 A	1 MHz	96 mOhm
