L6R24 Series

Catalog

AC/DC DESKTOP ADAPTER 24V 24W

Part	Weight	Weight	Standard Number	Approval Agency	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Voltage - Output	Polarization	Efficiency	Region Utilized	Cord Length	Cord Length	Input Type	Voltage - Input [Max]	Voltage - Input [Min]	No Load Power Consumption	Form	Output Connector	Output Connector [diameter]	Output Connector [x]	Current - Output (Max) [Max]	Applications	Input Connector
Tri-Mag, LLC L6R24D-240-C8	0.309 lb	140 g	62368-1	cUL FCC UL	24 W	3.62 "	91.9 mm	45.4 mm	1.08 "	1.79 in	27.5 mm	40 °C	24 V	Positive Center	Level VI	International	1.5 m	59 in	Cord (Sold Separately)	264 VAC	90 VAC	100 mW	Desktop (Class II)	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	1 A	ITE (Commercial)	IEC 320-C8
Tri-Mag, LLC L6R24D-360-C8	0.309 lb	140 g	62368-1	cUL FCC UL	25 W	3.62 "	91.9 mm	45.4 mm	1.08 "	1.79 in	27.5 mm	40 °C	36 V	Positive Center	Level VI	International	1.5 m	59 in	Cord (Sold Separately)	264 VAC	90 VAC	100 mW	Desktop (Class II)	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	700 mA	ITE (Commercial)	IEC 320-C8
Tri-Mag, LLC L6R24D-300-C8	0.309 lb	140 g	62368-1	cUL FCC UL	24 W	3.62 "	91.9 mm	45.4 mm	1.08 "	1.79 in	27.5 mm	40 °C	30 V	Positive Center	Level VI	International	1.5 m	59 in	Cord (Sold Separately)	264 VAC	90 VAC	100 mW	Desktop (Class II)	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	0.8 A	ITE (Commercial)	IEC 320-C8
Tri-Mag, LLC L6R24D-180-C8	0.309 lb	140 g	62368-1	cUL FCC UL	23 Watts	3.62 "	91.9 mm	45.4 mm	1.08 "	1.79 in	27.5 mm	40 °C	18 V	Positive Center	Level VI	International	1.5 m	59 in	Cord (Sold Separately)	264 VAC	90 VAC	100 mW	Desktop (Class II)	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	1.3 A	ITE (Commercial)	IEC 320-C8

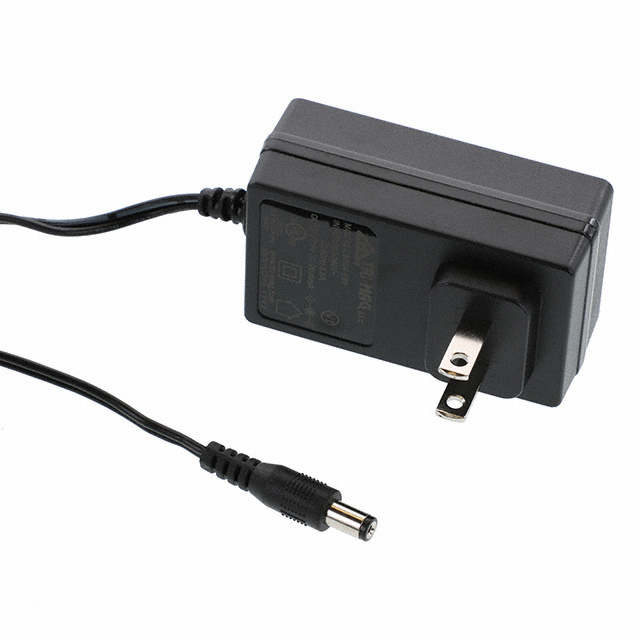

Tri-Mag, LLC L6R24-240			62368-1	cUL FCC UL	24 W	2.8 in	71.1 mm	43.2 mm	1.3 in	1.7 in	33 mm	40 °C	24 V	Positive Center	Level VI	North America	1.5 m	59 in	Fixed Blade	264 VAC	90 VAC	100 mW	Wall Mount	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	1 A	ITE (Commercial)	NEMA 1-15P
