CSM-360-W Series
Manufacturer: Luminus Devices Inc.
Beta
⌘K

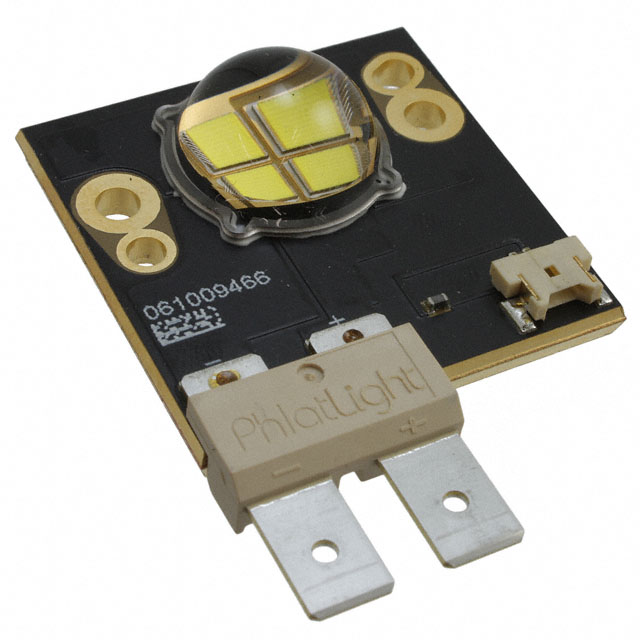

LED MOD CSM-360 WHT SQ 4000K
| Part | Luminous Flux @ Current/Temperature [Min] | Luminous Flux @ Current/Temperature [Max] | CRI (Color Rendering Index) | Lumens/Watt @ Current - Test | Size / Dimension [x] | Size / Dimension [y] | Height [z] | Configuration | Current - Test | Light Emitting Surface (LES) [diameter] | Temperature - Test | Type | Features | Lens Type | Color | Voltage - Forward (Vf) (Typ) | CCT (K) | Current - Max [Max] | CCT (K) [Min] | CCT (K) [Max] | Viewing Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Luminus Devices Inc. | 3000 lm | 3600 lm | 70 | 74 lm/W | 51 mm | 36 mm | 12.2 mm | Square | 3.15 A | 16 mm | 25 °C | LED Module | With Connector | Domed | Neutral White | 14.15 V | 4000 K | 6.3 A | |||
Luminus Devices Inc. | 70 | 36 mm | 51 mm | 5.61 mm | Rectangle | 3.15 A | 16 mm | 40 °C | LED Module | With Connector | Domed | Neutral White | 13.14 V | 6.3 A | 4000 K | 4500 K | 115 ° |
