HSTT25 Series

Catalog

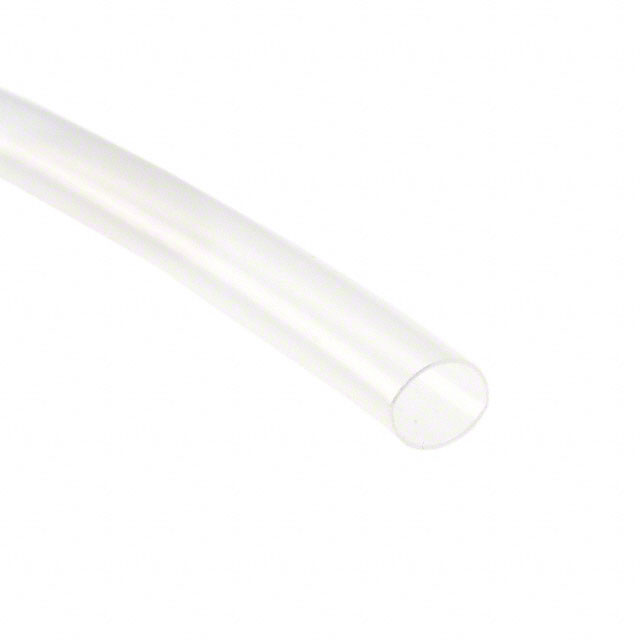

HEATSHRINK 1/4" X 0.5' CLEAR

Part	Shelf Life Start	Length	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Shelf Life	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color	Shrink Temperature	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Material	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Features	Length [x]	Length [x]
Panduit Corp HSTT25-YC	Date of Manufacture	152.4 mm	0.5 '	6 "	-55 C	135 °C	60 Months	0.025 in	0.64 mm	0.125 in	3.18 mm	Clear	90 °C	1	2	Polyolefin (PO) Irradiated	Tubing Flexible	0.25 "	6.35 mm

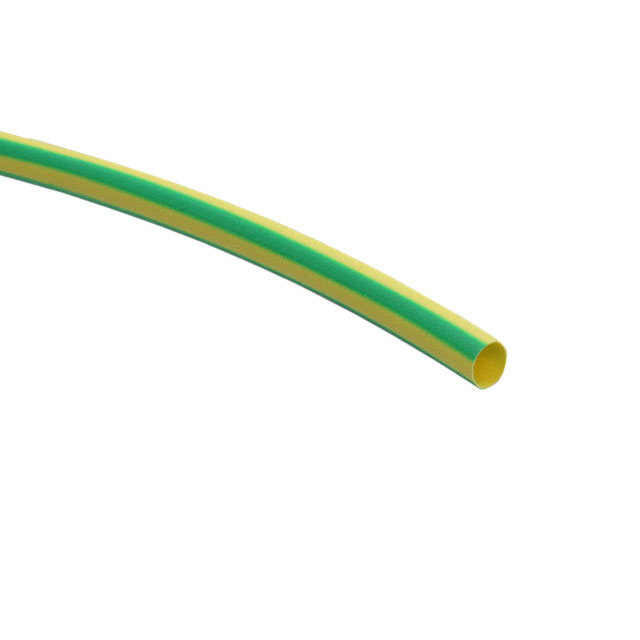

Panduit Corp HSTT25-D45	Date of Manufacture	152.4 m	500 ft		-55 C	135 °C	60 Months 120 Months	0.025 in	0.64 mm	0.125 in	3.18 mm	Green Yellow	90 °C	1	2	Polyolefin (PO) Irradiated	Tubing Flexible	0.25 "	6.35 mm	Flame Retardant
Panduit Corp HSTT25-C4	Date of Manufacture				-55 C	135 °C	60 Months	0.025 in	0.64 mm	0.125 in	3.18 mm	Yellow	90 °C	1	2	Polyolefin (PO) Irradiated	Tubing Flexible	0.25 "	6.35 mm	Flame Retardant	100 ft	30.5 m
Panduit Corp HSTT25-48-TL	Date of Manufacture				-55 C	135 °C	60 Months	0.025 in	0.64 mm	0.125 in	3.18 mm	Black	90 °C	1	2	Polyolefin (PO) Irradiated	Tubing Flexible	0.25 "	6.35 mm	Flame Retardant UV Resistant	4 ft	1.22 m
Panduit Corp HSTT25-QC	Date of Manufacture	7.6 m	25 ft		-55 C	135 °C	60 Months	0.025 in	0.64 mm	0.125 in	3.18 mm	Clear	90 °C	1	2	Polyolefin (PO) Irradiated	Tubing Flexible	0.25 "	6.35 mm
Panduit Corp HSTT25-D10	Date of Manufacture	152.4 m	500 ft		-55 C	135 °C	60 Months	0.025 in	0.64 mm	0.125 in	3.18 mm	White	90 °C	1	2	Polyolefin (PO) Irradiated	Tubing Flexible	0.25 "	6.35 mm	Flame Retardant
Panduit Corp HSTT25-Q45	Date of Manufacture	7.6 m	25 ft		-55 C	135 °C	120 Months	0.025 in	0.64 mm	0.125 in	3.18 mm	Green Yellow	90 °C	1	2	Polyolefin (PO) Irradiated	Tubing Flexible	0.25 "	6.35 mm	Flame Retardant
Panduit Corp HSTT25-D6	Date of Manufacture	152.4 m	500 ft		-55 C	135 °C	60 Months	0.025 in	0.64 mm	0.125 in	3.18 mm	Blue	90 °C	1	2	Polyolefin (PO) Irradiated	Tubing Flexible	0.25 "	6.35 mm	Flame Retardant
