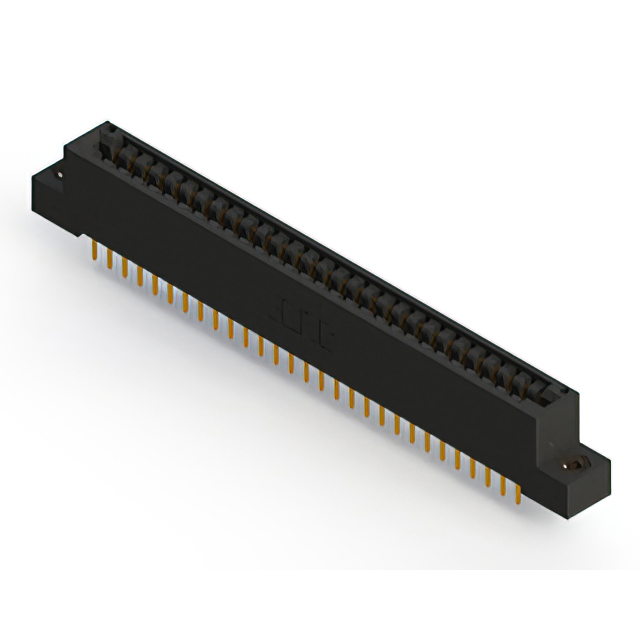

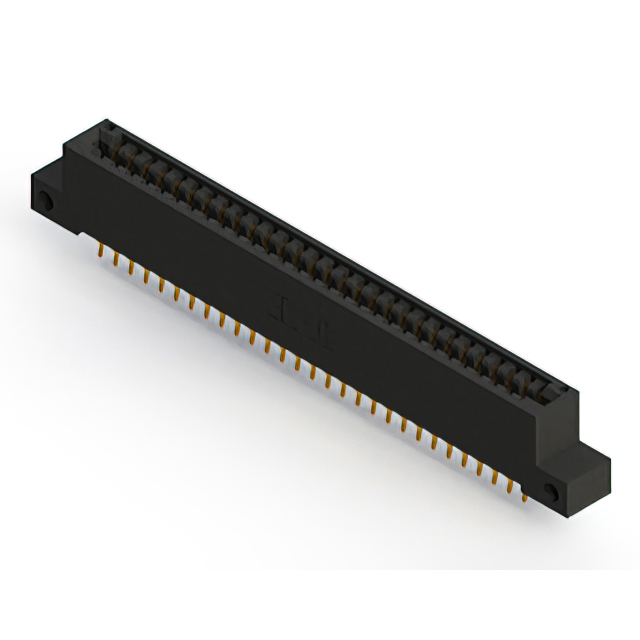

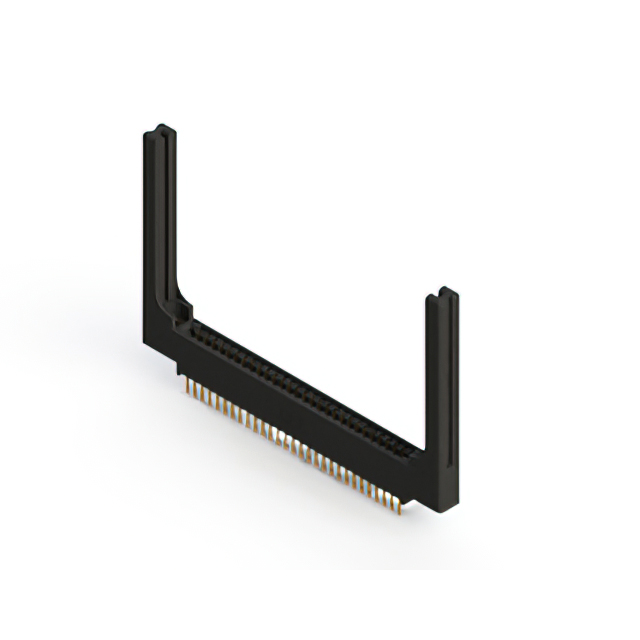

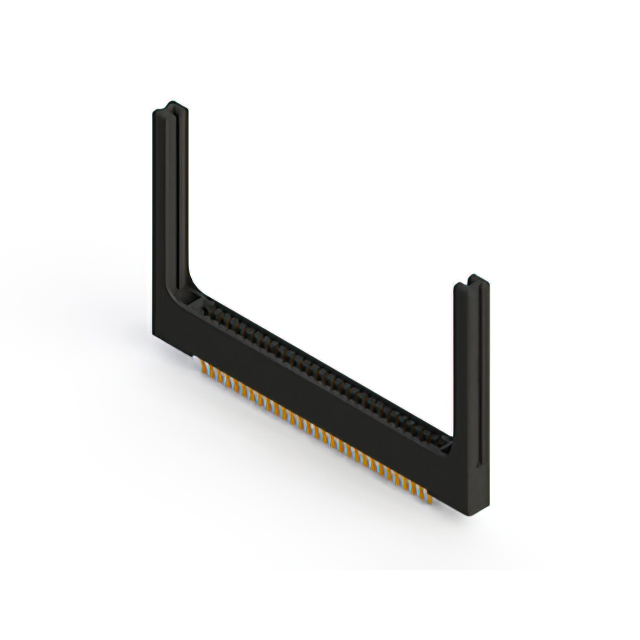

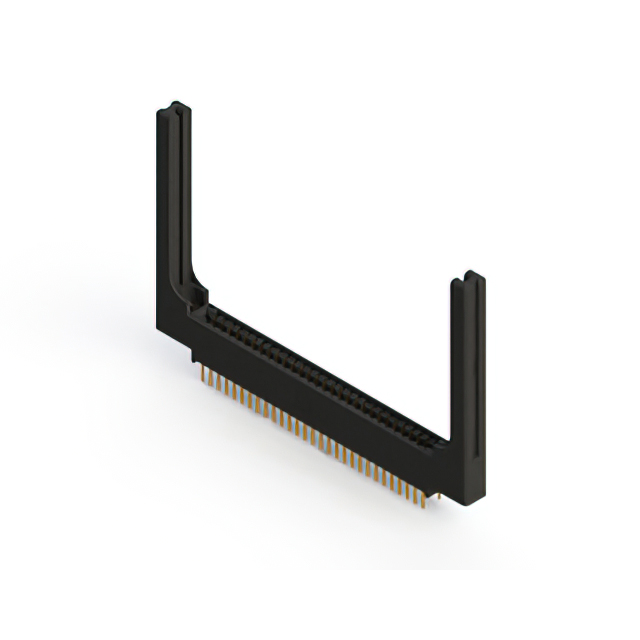

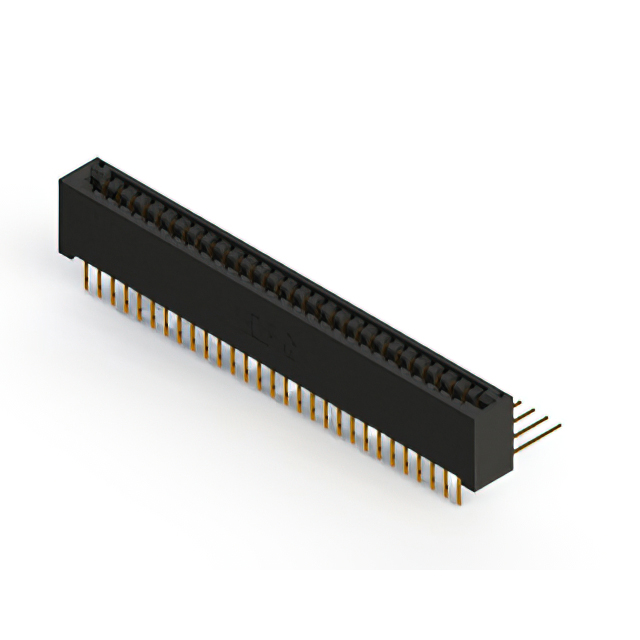

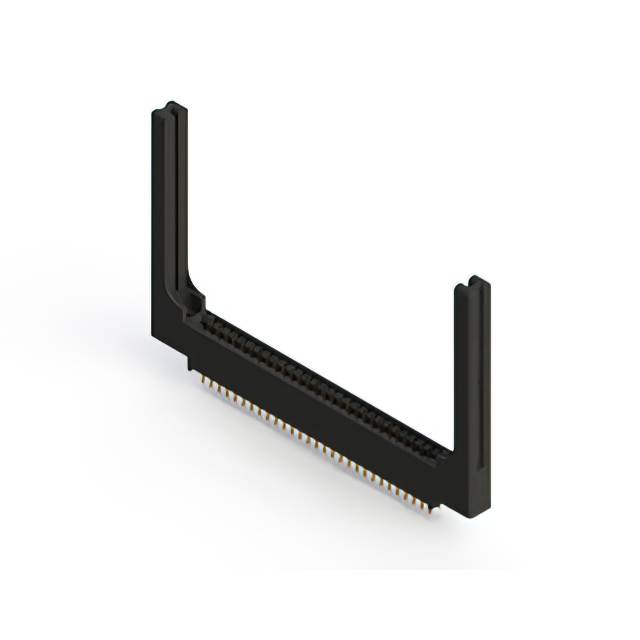

396-058 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 58POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Pitch | Pitch | Number of Positions | Number of Positions/Bay/Row | Read Out | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Features | Card Type | Termination | Number of Rows [custom] | Contact Type | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] | Color | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.18 mm | 0.125 in | 58 | 29 | Dual | 0.25 Ám | 10 Áin | Copper Alloy | Card Extender | Non Specified - Dual Edge | Solder | 2 | Cantilever | Gold | 3.25 mm | 0.128 " | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Board Edge Straddle Mount | -40 C | 105 ░C | Female | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.18 mm | 0.125 in | 58 | 29 | Dual | 0.25 Ám | 10 Áin | Copper Alloy | Card Extender | Non Specified - Dual Edge | Solder | 2 | Cantilever | Gold | 3.25 mm | 0.128 " | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Board Edge Straddle Mount | -40 C | 105 ░C | Female | Flush Mount Top Opening Unthreaded |
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.18 mm | 0.125 in | 58 | 29 | Dual | 0.25 Ám | 10 Áin | Copper Alloy | Non Specified - Dual Edge | Solder | 2 | Cantilever | Gold | 3.25 mm | 0.128 " | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | -40 C | 105 ░C | Female | Flush Mount Side Opening Unthreaded | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.18 mm | 0.125 in | 58 | 29 | Dual | 0.25 Ám | 10 Áin | Copper Alloy | Non Specified - Dual Edge | Solder | 2 | Cantilever | Gold | 2.95 mm | 0.116 " | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | -40 C | 105 ░C | Female | Floating Bobbin Flush Mount | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.18 mm | 0.125 in | 58 | 29 | Dual | 0.25 Ám | 10 Áin | Copper Alloy | Card Extender Card Guides | Non Specified - Dual Edge | Solder | 2 | Cantilever | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Board Edge Straddle Mount | -40 C | 105 ░C | Female | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.18 mm | 0.125 in | 58 | 29 | Dual | 0.25 Ám | 10 Áin | Copper Alloy | Card Extender | Non Specified - Dual Edge | Solder | 2 | Cantilever | Gold | 3.25 mm | 0.128 " | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Board Edge Straddle Mount | -40 C | 105 ░C | Female | Flush Mount Side Opening Unthreaded |
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.18 mm | 0.125 in | 58 | 29 | Dual | 0.25 Ám | 10 Áin | Copper Alloy | Non Specified - Dual Edge | Solder | 2 | Cantilever | Gold | 2.95 mm | 0.116 " | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | -40 C | 105 ░C | Female | Floating Bobbin Flush Mount | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.18 mm | 0.125 in | 58 | 29 | Dual | 0.25 Ám | 10 Áin | Copper Alloy | Card Guides | Non Specified - Dual Edge | Solder Wire Wrap | 2 | Cantilever | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | -40 C | 105 ░C | Female | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.18 mm | 0.125 in | 58 | 29 | Dual | 0.25 Ám | 10 Áin | Copper Alloy | Card Guides | Non Specified - Dual Edge | Solder | 2 | Cantilever | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | -40 C | 105 ░C | Female | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.18 mm | 0.125 in | 58 | 29 | Dual | 0.25 Ám | 10 Áin | Copper Alloy | Card Extender | Non Specified - Dual Edge | Solder | 2 | Cantilever | Gold | 3.25 mm | 0.128 " | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Board Edge Straddle Mount | -40 C | 105 ░C | Female | Flush Mount Side Opening Unthreaded |
