165565 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

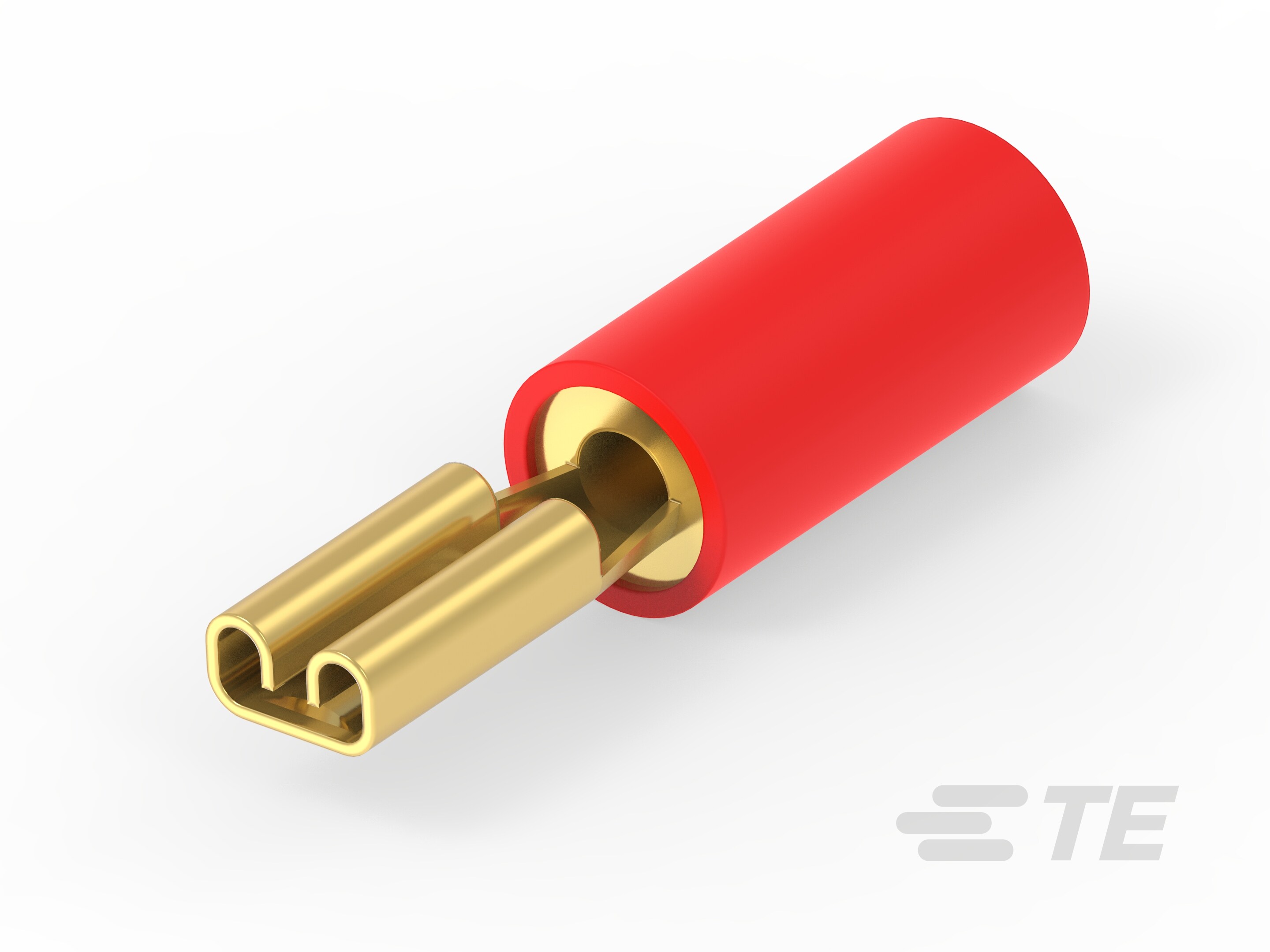

TERM,RECPT,PIDG,110 FAST, 22-16, PHBR,AU
| Part | Color | Termination | Tab Length | Tab Length | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Gender | Contact Finish | Tab Thickness | Tab Thickness | Tab Width | Tab Width | Insulation | Length - Overall [x] | Length - Overall [x] | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Terminal Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Red | Crimp | 0.248 in | 6.3 mm | 3.56 mm | 0.14 in | Female | Gold | 0.02 " | 0.51 mm | 2.79 mm | 0.11 " | Non-Mating End Insulated | 0.78 in | 19.81 mm | Free Hanging (In-Line) | 22 AWG | 16 AWG | Standard | Phosphor Bronze |
