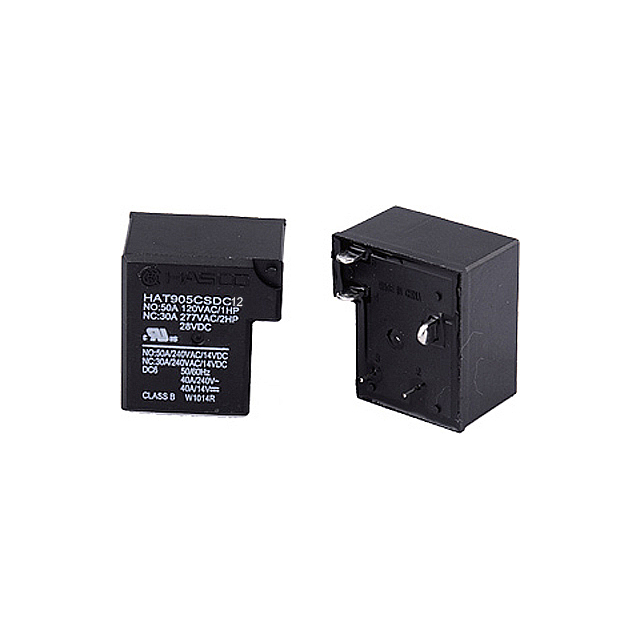

HAT905 Series
Manufacturer: Hasco Relays
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY SPDT 50A 12V
| Part | Termination Style | Coil Current | Switching Voltage AC (Max) | Contact Form | Mounting Type | Contact Material | Operating Temperature (Max) | Operating Temperature (Min) | Operate Time | Must Operate Voltage | Coil Voltage | Release Time | Contact Rating (Current) | Coil Type | Must Release Voltage | Coil Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hasco Relays | PC Pin | 100 mA | 277 VAC | 1 C Form SPDT | Through Hole | Silver Alloy | 85 °C | -20 °C | 15 ms | 9 VDC | 12 VAC | 10 ms | 50 A | Non Latching | 1.2 V | Class B |
