SRP6060FA Series

Catalog

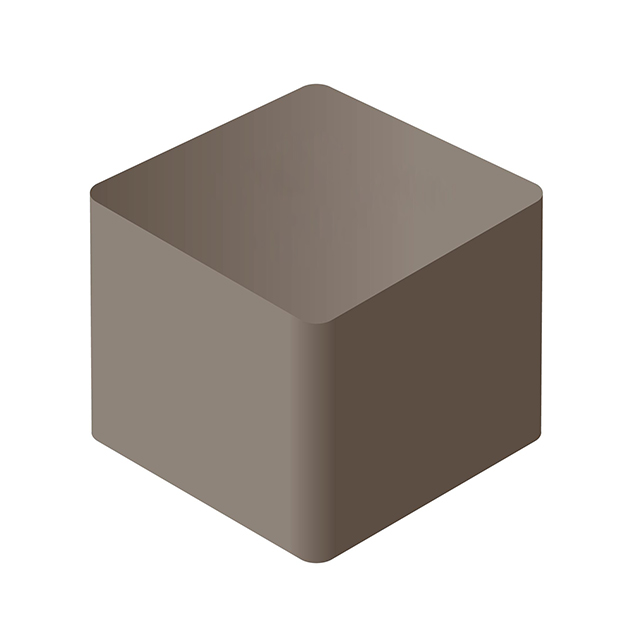

INDUCTOR, SHLD, 15UH, 6A, AEC-Q200

Part	Inductance	Height - Seated (Max)	Height - Seated (Max) [Max]	Material - Core	Current Rating (Amps)	Inductance Frequency - Test	Package / Case	Shielding	Current - Saturation (Isat)	Mounting Type	DC Resistance (DCR) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Ratings	Frequency - Self Resonant
Bourns Inc. SRP6060FA-150M	15 µH	6 mm	0.236 "	Iron Powder	6 A	100 kHz	Nonstandard	Shielded	5.8 A	Surface Mount	43 mOhm	155 C	-55 C	20 %	Drum Core Wirewound	6.4 mm	6.6 mm	0.26 in	0.252 in	AEC-Q200	11 MHz
Bourns Inc. SRP6060FA-6R8M	6.8 µH	6 mm	0.236 "	Iron Powder	9 A	100 kHz	Nonstandard	Shielded	9.2 A	Surface Mount	20.8 mOhm	155 C	-55 C	20 %	Drum Core Wirewound	6.4 mm	6.6 mm	0.26 in	0.252 in	AEC-Q200	16 MHz
Bourns Inc. SRP6060FA-100M	10 µH	6 mm	0.236 "	Iron Powder	7 A	100 kHz	Nonstandard	Shielded	7.6 A	Surface Mount	29.3 mOhm	155 C	-55 C	20 %	Drum Core Wirewound	6.4 mm	6.6 mm	0.26 in	0.252 in	AEC-Q200	12 MHz
