421-017 Series
Manufacturer: EDAC Inc.
Beta
⌘K

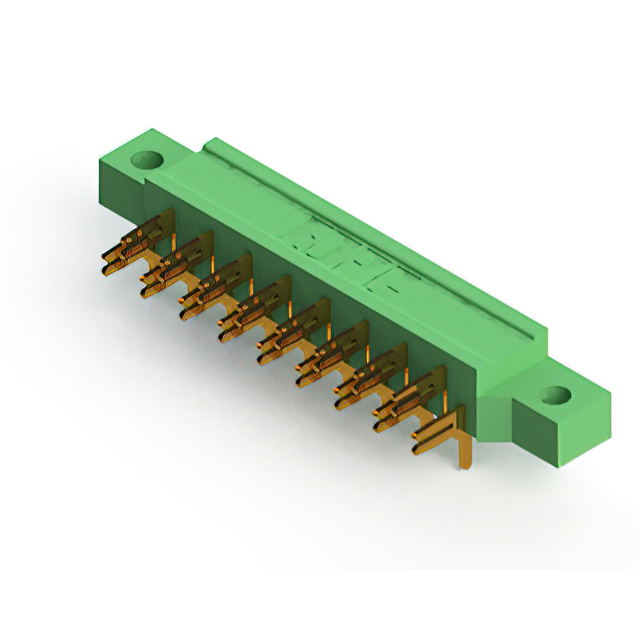

CONN EDGE DUAL FMALE 17POS 0.200
| Part | Material - Insulation | Termination Rows [custom] | Contact Material | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Type | Mounting Type | Gender | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Pitch | Pitch | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Copper Alloy | Gold | -65 ░C | 125 °C | Green | 0.25 Ám | 10 Áin | 0.093 " | 0.062 in | 1.57 mm | 2.36 mm | Non Specified - Dual Edge | Right Angle Through Hole | Female | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Solder | 5.08 mm | 0.2 in | 2 |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Copper Alloy | Gold | -65 ░C | 125 °C | Green | 0.25 Ám | 10 Áin | 0.093 " | 0.062 in | 1.57 mm | 2.36 mm | Non Specified - Dual Edge | Right Angle Through Hole | Female | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Solder | 5.08 mm | 0.2 in | 2 |
