- Series
Manufacturer: Pomona Electronics
Catalog
CONN BNC TRIAX RCPT STR 50 OHM
...
| Part | Fastening Type | Housing Color | Contact Termination | Number of Ports | Shield Termination | Mounting Feature | Center Contact Material | Connector Style | Impedance | Mounting Type | Connector Type | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Center Contact Plating | Body Material | Body Finish | Includes Total Count | Includes | Convert From (Adapter End) | Adapter Series | Center Gender | Frequency - Max | Conversion Type | Convert To (Adapter End) Type | Convert To (Adapter End) Gender | Style | Adapter Type | Mating Cycles | Cable Group | Voltage Rating | Termination | Shell Size - Insert | Contact Finish - Mating | Features | Primary Material | Shell Finish | Color | Orientation | Shell Material | Number of Positions | Convert To (Adapter End) Count | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

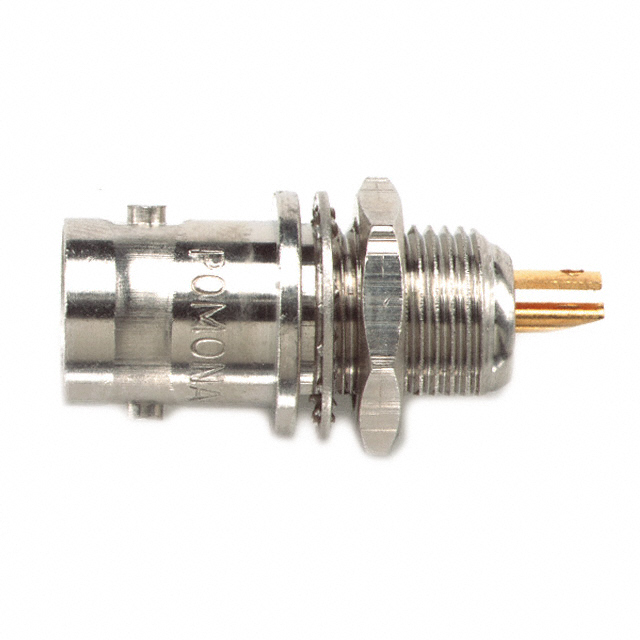

 Pomona Electronics | Bayonet Lock | Silver | Solder Cup | 1 | Solder | Bulkhead Front Side Nut | Beryllium Copper | BNC Triaxial | 50 Ohm | Panel Mount | Female Socket Recepture | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Nickel | 3 pcs | Connector Lockwasher Nut | ||||||||||||||||||||||||

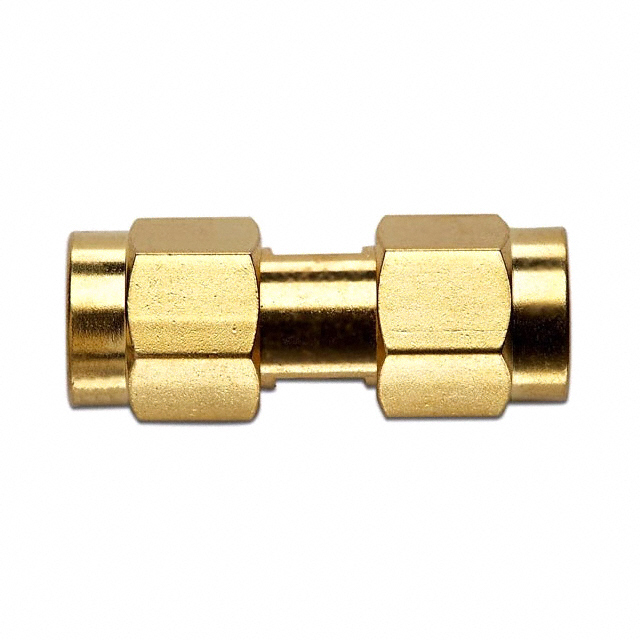

 Pomona Electronics | Threaded | Brass | 50 Ohm | Free Hanging (In-Line) | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Gold | Male Pin SMA Plug | SMA to SMA | Male | 6000 MHz | Same Series | SMA Plug | Male Pin | Straight | Plug to Plug | 500 cycles | |||||||||||||||||||||||

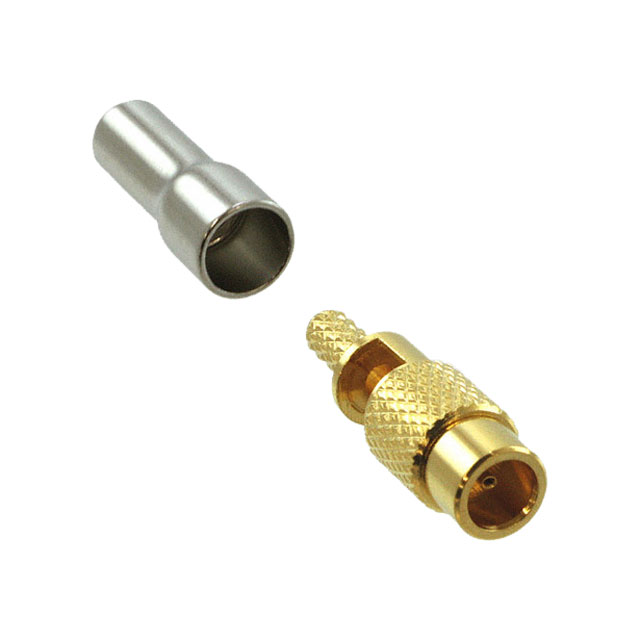

 Pomona Electronics | Snap-On | Gold | Push On | 1 | Crimp | Beryllium Copper | MCX | 75 Ohm | Free Hanging (In-Line) | Female Socket Jack | -55 °C | 155 °C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Gold | 3 pcs | Connector Ferrule Heat Shrink | 2 GHz | 500 cycles | RG-179 | 170 V | |||||||||||||||||||||

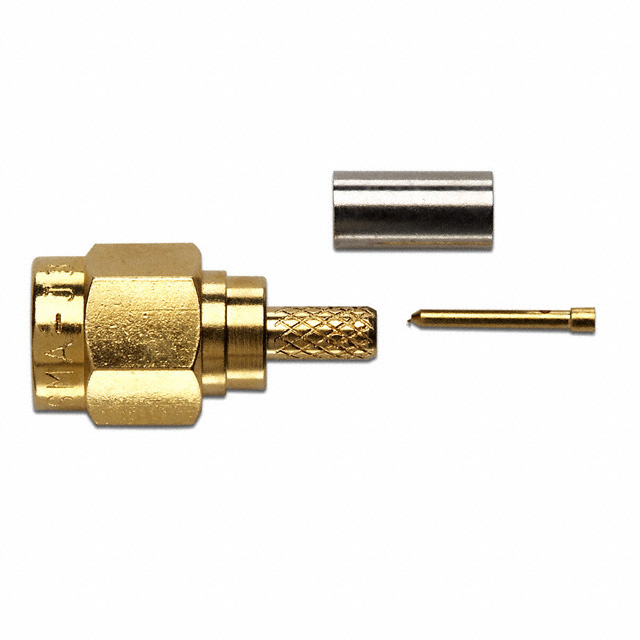

 Pomona Electronics | Threaded | Gold | Crimp Solder | 1 | Crimp | Brass | SMA | 50 Ohm | Free Hanging (In-Line) | Male Pin Plug | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Gold | 3 pcs | Connector Contact Ferrule | 12.4 GHz | 500 cycles | 187 316 RG-174 | 375 V | |||||||||||||||||||||

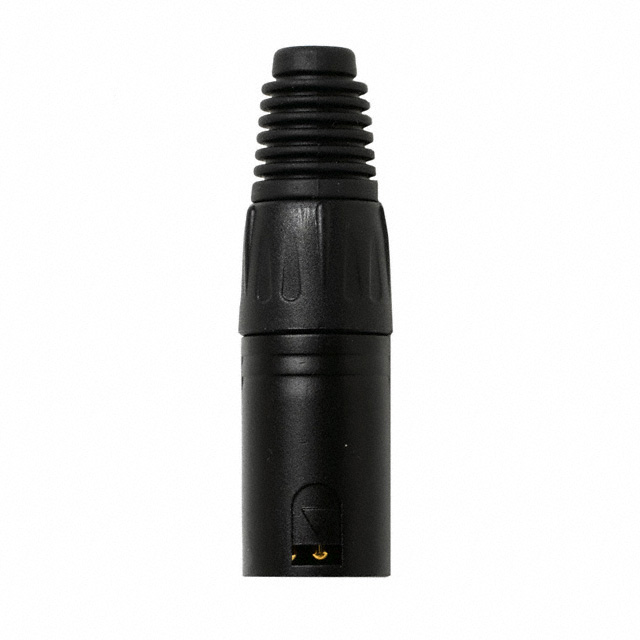

 Pomona Electronics | Latch Lock | Free Hanging (In-Line) | Male Pins Plug | Solder | XLR | Gold | Cable Clamp | Metal | Nickel | Black | Keyed | Zinc Die Cast | 3 | ||||||||||||||||||||||||||||||

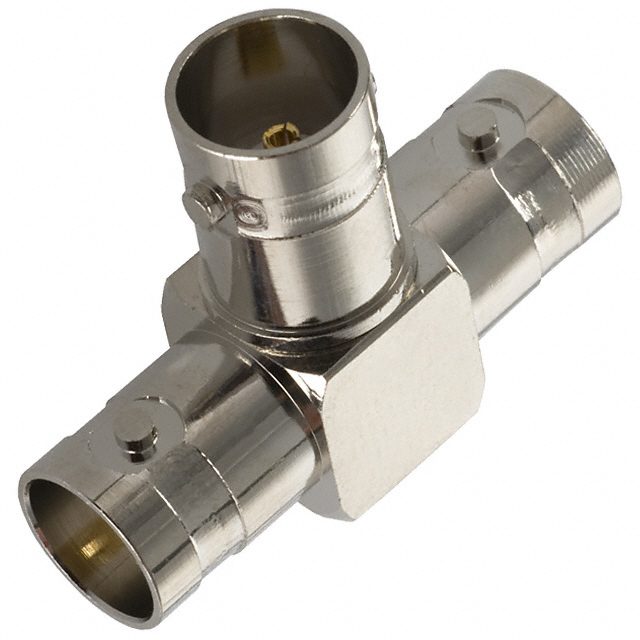

 Pomona Electronics | Bayonet Lock | Beryllium Copper | 75 Ohm | Free Hanging (In-Line) | -65 °C | 155 °C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Nickel | BNC Jack Female Socket | BNC to BNC Dual | Female | 3 GHz | Same Series | T-Shape | Jack to Jack | 500 cycles | 2 count | BNC Jack Female Socket | |||||||||||||||||||||||

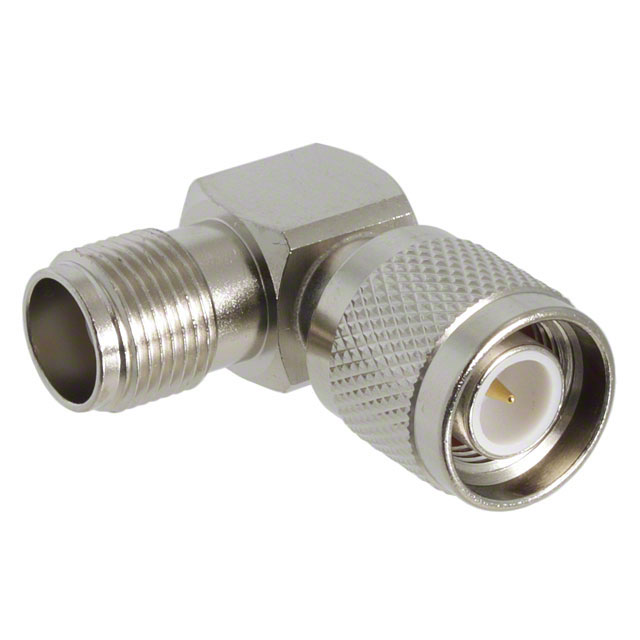

 Pomona Electronics | Threaded | Brass Phosphor Bronze | 50 Ohm | Free Hanging (In-Line) Right Angle | Polytetrafluoroethylene (PTFE) | Gold | Brass | Nickel | Male Pin TNC Plug | TNC to TNC | Female Male | 4 GHz | Same Series | Right Angle | Plug to Jack | 500 cycles | Female Socket TNC Jack | ||||||||||||||||||||||||||

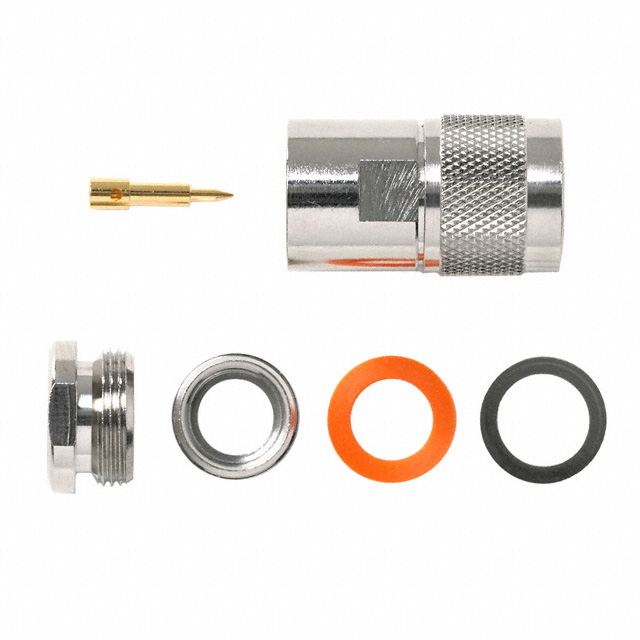

 Pomona Electronics | Threaded | Silver | Crimp | 1 | Clamp | Brass | N Type | 50 Ohm | Free Hanging (In-Line) | Male Pin Plug | Polytetrafluoroethylene (PTFE) | Gold | Brass | Nickel | 6 pcs | Braid Clamp Clamp Connector Contact Gasket Washer | 11 GHz | 500 cycles | 144 165 213 214 216 225 9 RG-8 | 1000 V | |||||||||||||||||||||||
 Pomona Electronics | Threaded | Silver | Solder | 1 | Clamp | Brass | N Type | 50 Ohm | Free Hanging (In-Line) | Male Pin Plug | Polytetrafluoroethylene (PTFE) | Gold | Brass | 6 pcs | Braid Clamp Clamp Connector Contact Gasket Washer | 141 142 223 RG-58 | |||||||||||||||||||||||||||

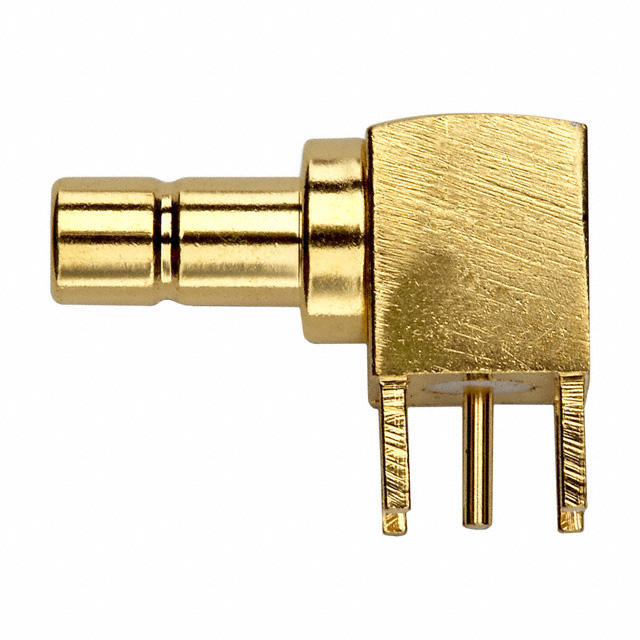

 Pomona Electronics | Snap-On | Gold | Solder | 1 | Solder | Beryllium Copper | SMB | 50 Ohm | Right Angle Through Hole | Male Pin Receptacle | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Gold | 3 GHz | 500 cycles | 250 V |
