CT1102V6 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Outline [y]	Outline [x]	Actuator Type	Operating Force	Actuator Orientation	Illumination	Contact Rating @ Voltage	Actuator Length, Right Angle	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Switch Function	Circuit

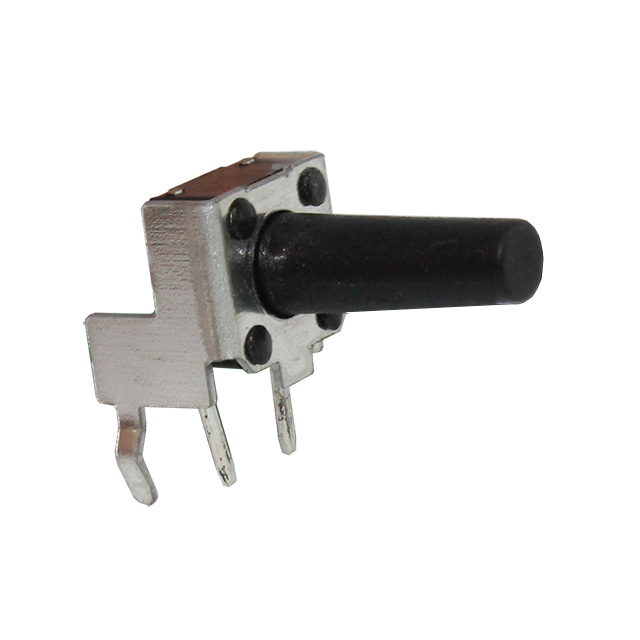

CIT Relay and Switch CT1102V6.35F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	6.3 mm	7.5 mm	Plunger for Cap	100 gf	Side Actuated	Non-Illuminated	0.05 A 50 VDC	6.35 mm	Right Angle Through Hole	85 °C	-40 C	PC Pin	Off-Mom	SPST-NO
CIT Relay and Switch CT1102V6.85F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	6.3 mm	7.5 mm	Plunger for Cap	160 gf	Side Actuated	Non-Illuminated	0.05 A 50 VDC	6.85 mm	Right Angle Through Hole	85 °C	-40 C	PC Pin	Off-Mom	SPST-NO
CIT Relay and Switch CT1102V6.35F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	6.3 mm	7.5 mm	Plunger for Cap	260 gf	Side Actuated	Non-Illuminated	0.05 A 50 VDC	6.35 mm	Right Angle Through Hole	85 °C	-40 C	PC Pin	Off-Mom	SPST-NO
CIT Relay and Switch CT1102V6.85F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	6.3 mm	7.5 mm	Plunger for Cap	100 gf	Side Actuated	Non-Illuminated	0.05 A 50 VDC	6.85 mm	Right Angle Through Hole	85 °C	-40 C	PC Pin	Off-Mom	SPST-NO
