6659-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Contact Material	Socket Depth	Socket Depth	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 6659-0-15-80-34-27-10-0	-55 C	125 °C	No Tail	Beryllium Copper	0.296 "	7.52 mm	1.63 mm	0.064 in	Gold	1.17 mm	0.81 mm	0.046 "	0.032 "	Solder	0.102 in	2.59 mm	8.26 mm	0.325 in	30 Áin	0.76 Ám	3 mm	0.118 in

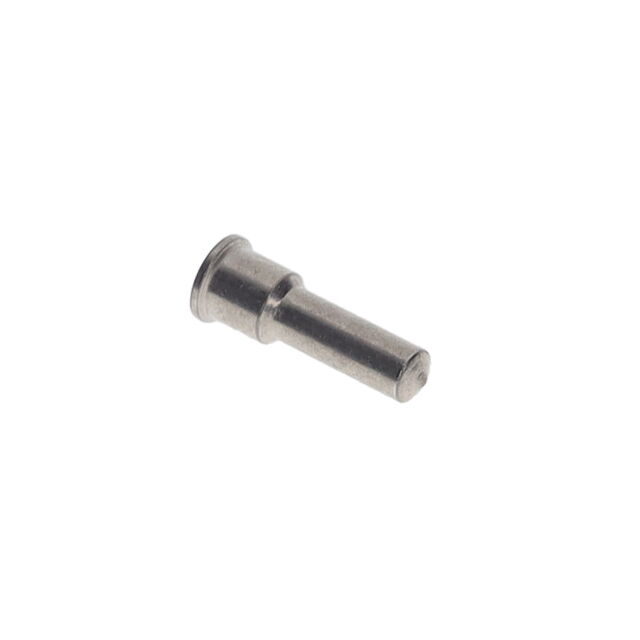

Mill-Max Manufacturing Corp. 6659-0-15-80-34-80-10-0	-55 C	125 °C	No Tail	Beryllium Copper	0.296 "	7.52 mm	1.63 mm	0.064 in	Tin	1.17 mm	0.81 mm	0.046 "	0.032 "	Solder	0.102 in	2.59 mm	8.26 mm	0.325 in	200 Áin	5.08 Ám	3 mm	0.118 in
Mill-Max Manufacturing Corp. 6659-0-15-01-34-14-10-0	-55 C	125 °C	No Tail	Beryllium Copper	0.296 "	7.52 mm	1.63 mm	0.064 in	Gold	1.17 mm	0.81 mm	0.046 "	0.032 "	Solder	0.102 in	2.59 mm	8.26 mm	0.325 in	10 Áin	0.25 Ám	3 mm	0.118 in
Mill-Max Manufacturing Corp. 6659-0-15-15-34-14-10-0	-55 C	125 °C	No Tail	Beryllium Copper	0.296 "	7.52 mm	1.63 mm	0.064 in	Gold	1.17 mm	0.81 mm	0.046 "	0.032 "	Solder	0.102 in	2.59 mm	8.26 mm	0.325 in	10 Áin	0.25 Ám	3 mm	0.118 in
