HL Series

Catalog

RF TXRX MODULE CELL SMD

Part	Current - Transmitting	Protocol	Package / Case	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	RF Family/Standard	Data Rate	Antenna Type	Power - Output	Current - Receiving	Sensitivity
Semtech Corporation HL8548_1102810	475 mA	3G (AT&T)	146-LGA Module	UART USB	85 °C	-40 C	1.8 GHz 1.9 GHz 850 MHz 900 MHz	Surface Mount	3.2 V	4.5 V	Cellular
Semtech Corporation HL8518_1103928		EDGE GPRS GSM	146-LGA Module	UART USB	85 °C	-40 C	1.8 GHz 900 MHz	Surface Mount			Cellular	7.2 Mbps	Antenna Not Included
Semtech Corporation HL7692_1103157		EDGE GLONASS GNSS GPRS GPS GSM	Module	UART USB	85 °C	-40 C	1.8 GHz 900 MHz	Surface Mount			Cellular	10 Mbps
Semtech Corporation HL8518_1102589		EDGE GLONASS GNSS GPRS GPS GSM	Module	UART USB	85 °C	-40 C	1.8 GHz 900 MHz	Surface Mount			Cellular	10 Mbps
Semtech Corporation HL8528_1103960	700 mA	GPRS GSM	146-LGA Module	UART	85 °C	-40 C	1.8 GHz 1.9 GHz 850 MHz 900 MHz	Surface Mount	3.2 V	4.5 V	Cellular			33 dBm	700 mA
Semtech Corporation HL7519_1102497		GLONASS GNSS GPS	Module	UART USB	85 °C	-40 C		Surface Mount			Cellular	10 Mbps

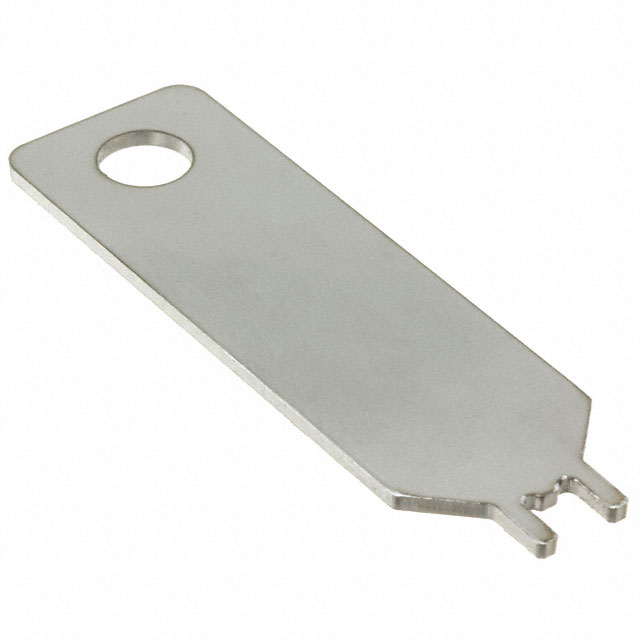

Semtech Corporation HL SNAP-IN TOOL_6000600
Semtech Corporation HL8518_1103929		EDGE GPRS GSM	146-LGA Module	UART USB	85 °C	-40 C	1.8 GHz 900 MHz	Surface Mount			Cellular	7.2 Mbps	Antenna Not Included
Semtech Corporation HL8548-G_1102150		EDGE GLONASS GPRS GPS GSM HSDPA HSUPA UMTS	Module	I2C PWM SPI UART USB	85 °C	-40 C	1.8 GHz 1.9 GHz 850 MHz 900 MHz	Surface Mount	3.2 V	4.5 V	Cellular	7.2 Mbps		23 dBm		-162 dBm
Semtech Corporation HL8548_1102149		EDGE GLONASS GNSS GPRS GPS GSM	Module	UART USB	85 °C	-40 C	1.8 GHz 1.9 GHz 850 MHz 900 MHz	Surface Mount			Cellular	10 Mbps
