86381 Series

Catalog

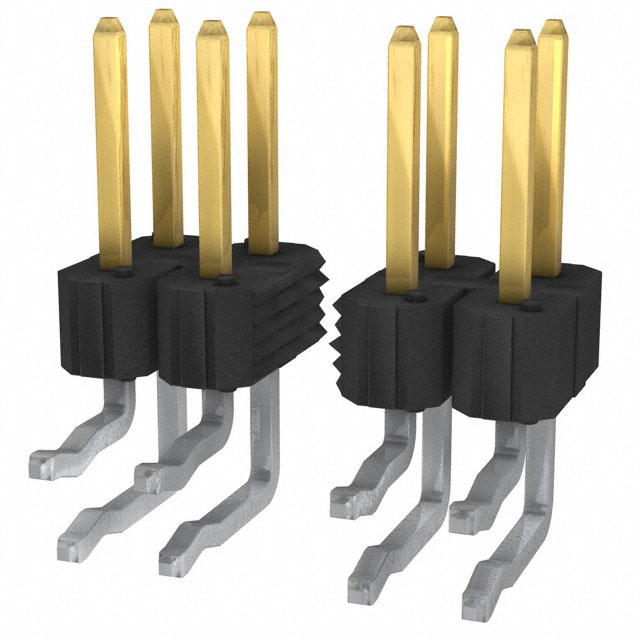

CONN HEADER R/A 72POS 2.54MM

Part	Fastening Type	Insulation Color	Material Flammability Rating	Contact Shape	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish - Mating	Number of Rows	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Shrouding	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Termination	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material
Amphenol ICC (FCI) 86381-172	Push-Pull	Black	UL94 V-0	Square	Through Hole Right Angle	0.1 in	2.54 mm	Phosphor Bronze	Gold or Gold GXT™	2	4.83 mm	0.19 in	0.12 in	3.05 mm	All	Unshrouded	6.35 mm	0.25 in	Header	30 Áin	0.76 Ám	Male Pin	Press-Fit Solder	72	2.54 mm	0.1 in
Amphenol ICC (FCI) 86381-112	Push-Pull	Black	UL94 V-0	Square	Through Hole Right Angle	0.1 in	2.54 mm	Phosphor Bronze	Gold or Gold GXT™	2	4.83 mm	0.19 in	0.12 in	3.05 mm	All	Unshrouded	6.35 mm	0.25 in	Header	30 Áin	0.76 Ám	Male Pin	Press-Fit Solder	12	2.54 mm	0.1 in
Amphenol ICC (FCI) 86381-420	Push-Pull	Black	UL94 V-0	Square	Through Hole Right Angle	0.1 in	2.54 mm	Phosphor Bronze		2	4.83 mm	0.19 in	0.12 in	3.05 mm	All	Unshrouded	6.35 mm	0.25 in	Header	100 çin	2.54 çm	Male Pin	Press-Fit Solder	20	2.54 mm	0.1 in
Amphenol ICC (FCI) 86381-106HLF	Push-Pull	Black	UL94 V-0	Square	Through Hole Right Angle	0.1 in	2.54 mm	Phosphor Bronze	Gold or Gold GXT™	2	4.83 mm	0.19 in	0.12 in	3.05 mm	All	Unshrouded	6.35 mm	0.25 in	Header	30 Áin	0.76 Ám	Male Pin	Press-Fit Solder	6	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT)
Amphenol ICC (FCI) 86381-120	Push-Pull	Black	UL94 V-0	Square	Through Hole Right Angle	0.1 in	2.54 mm	Phosphor Bronze	Gold or Gold GXT™	2	4.83 mm	0.19 in	0.12 in	3.05 mm	All	Unshrouded	6.35 mm	0.25 in	Header	30 Áin	0.76 Ám	Male Pin	Press-Fit Solder	20	2.54 mm	0.1 in
Amphenol ICC (FCI) 86381-104HLF	Push-Pull	Black	UL94 V-0	Square	Through Hole Right Angle	0.1 in	2.54 mm	Phosphor Bronze	Gold or Gold GXT™	2	4.83 mm	0.19 in	0.12 in	3.05 mm	All	Unshrouded	6.35 mm	0.25 in	Header	30 Áin	0.76 Ám	Male Pin	Press-Fit Solder	4	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT)

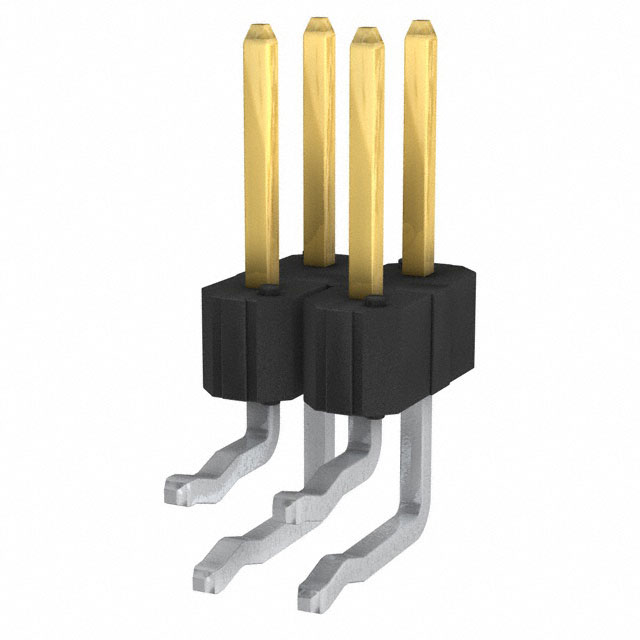

Amphenol ICC (FCI) 86381-104	Push-Pull	Black	UL94 V-0	Square	Through Hole Right Angle	0.1 in	2.54 mm	Phosphor Bronze	Gold or Gold GXT™	2	4.83 mm	0.19 in	0.12 in	3.05 mm	All	Unshrouded	6.35 mm	0.25 in	Header	30 Áin	0.76 Ám	Male Pin	Press-Fit Solder	4	2.54 mm	0.1 in

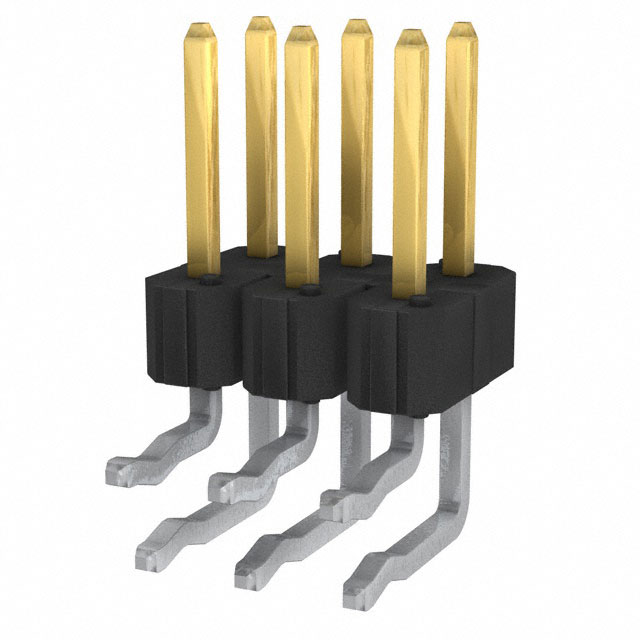

Amphenol ICC (FCI) 86381-106	Push-Pull	Black	UL94 V-0	Square	Through Hole Right Angle	0.1 in	2.54 mm	Phosphor Bronze	Gold or Gold GXT™	2	4.83 mm	0.19 in	0.12 in	3.05 mm	All	Unshrouded	6.35 mm	0.25 in	Header	30 Áin	0.76 Ám	Male Pin	Press-Fit Solder	6	2.54 mm	0.1 in
Amphenol ICC (FCI) 86381-404	Push-Pull	Black	UL94 V-0	Square	Through Hole Right Angle	0.1 in	2.54 mm	Phosphor Bronze		2	4.83 mm	0.19 in	0.12 in	3.05 mm	All	Unshrouded	6.35 mm	0.25 in	Header	100 çin	2.54 çm	Male Pin	Press-Fit Solder	4	2.54 mm	0.1 in
Amphenol ICC (FCI) 86381-112HLF	Push-Pull	Black	UL94 V-0	Square	Through Hole Right Angle	0.1 in	2.54 mm	Phosphor Bronze	Gold or Gold GXT™	2	4.83 mm	0.19 in	0.12 in	3.05 mm	All	Unshrouded	6.35 mm	0.25 in	Header	30 Áin	0.76 Ám	Male Pin	Press-Fit Solder	12	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT)
