TLV70028 Series
Manufacturer: Texas Instruments
Beta
⌘K
AUTOMOTIVE 200-MA, HIGH-PSRR, LOW-IQ, LOW-DROPOUT VOLTAGE REGULATOR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Output Type | Voltage Dropout (Max) [Max] | Qualification | Output Configuration | Number of Regulators | PSRR | Protection Features | Voltage - Output (Min/Fixed) | Current - Quiescent (Iq) | Mounting Type | Current - Supply (Max) [Max] | Voltage - Input (Max) [Max] | Control Features | Grade | Current - Output | Package / Case | Supplied Contents | Voltage - Output | Regulator Type | Channels per IC | Board Type | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | -40 °C | 125 °C | SOT-23-THIN | 1.81 mOhm | 0.25 V | AEC-Q100 | Positive | 1 | 68 dB | Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO) | 2.8 V | 55 µA | Surface Mount | 270 µA | 5.5 V | Enable | Automotive | 200 mA | SOT-23-5 Thin TSOT-23-5 | ||||||
 Texas Instruments | -40 °C | 125 ¯C | SC-70-5 | 1.81 mOhm | 0.25 V | Positive | 1 | 68 dB | Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO) | 2.8 V | 55 µA | Surface Mount | 270 µA | 5.5 V | Enable | 200 mA | 5-TSSOP SC-70-5 SOT-353 | ||||||||
 Texas Instruments | -40 °C | 125 ¯C | 1.81 mOhm | 0.25 V | Positive | 1 | 68 dB | Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO) | 2.8 V | 55 µA | Surface Mount | 270 µA | 5.5 V | Enable | 200 mA | 6-WFDFN | |||||||||
Texas Instruments | -40 °C | 125 ¯C | SC-70-5 | 1.81 mOhm | 0.25 V | Positive | 1 | 68 dB | Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO) | 2.8 V | 55 µA | Surface Mount | 270 µA | 5.5 V | Enable | 200 mA | 5-TSSOP SC-70-5 SOT-353 | ||||||||
 Texas Instruments | -40 °C | 125 ¯C | SOT-23-THIN | 1.81 mOhm | 0.25 V | Positive | 1 | 68 dB | Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO) | 2.8 V | 55 µA | Surface Mount | 270 µA | 5.5 V | Enable | 200 mA | SOT-23-5 Thin TSOT-23-5 | ||||||||

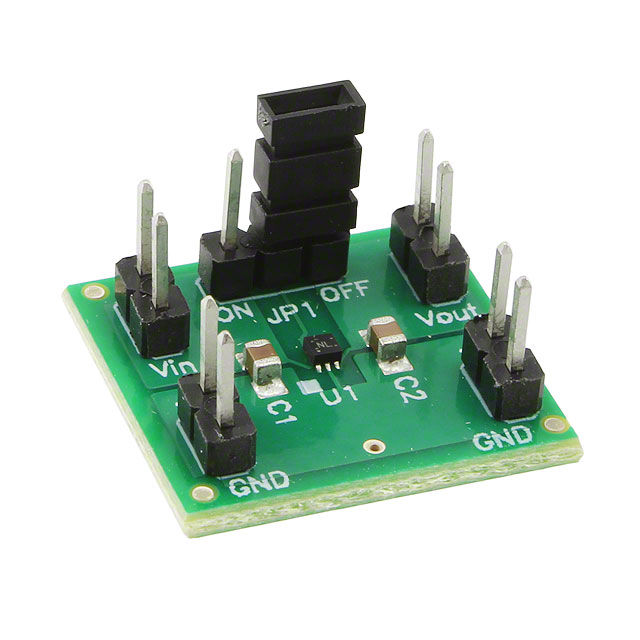

 Texas Instruments | 200 mA | Board(s) | 2.8 V | Positive Fixed | 1 - Single | Fully Populated | TLV70028 | ||||||||||||||||||
Texas Instruments | -40 °C | 125 ¯C | 1.81 mOhm | 0.25 V | Positive | 1 | 68 dB | Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO) | 2.8 V | 55 µA | Surface Mount | 270 µA | 5.5 V | Enable | 200 mA | 6-WFDFN |
