EGA.0B Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT FMALE 2POS GOLD CRIMP
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Ingress Protection | Primary Material | Contact Finish - Mating | Connector Type | Color | Insert Material | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Shell Finish | Orientation | Termination | Material Flammability Rating | Contact Material | Mounting Feature | Fastening Type | Shell Material | Number of Positions | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

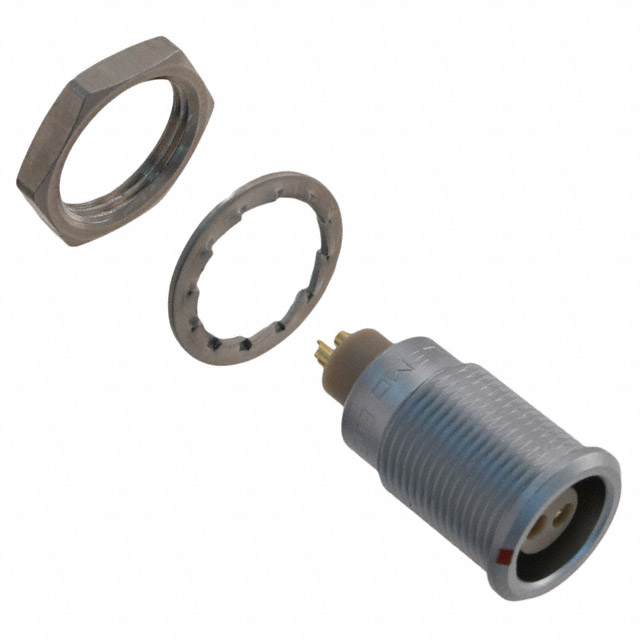

LEMO | 1.5 Ám | 59 Áin | Panel Mount | IP50 - Dust Protected | Metal | Gold | Receptacle Female Sockets | Silver | Polyetheretherketone (PEEK) | 10 A | -55 C | 250 °C | Shielded | Chrome | A | Crimp | UL94 V-0 | Bronze | Bulkhead - Rear Side Nut | Push-Pull | Brass | 2 | 302 |
 LEMO | 1.5 Ám | 59 Áin | Panel Mount | IP50 - Dust Protected | Metal | Gold | Receptacle Female Sockets | Silver | Polyetheretherketone (PEEK) | 10 A | -55 C | 250 °C | Shielded | Chrome | A | UL94 V-0 | Bronze | Bulkhead - Rear Side Nut | Push-Pull | Brass | 2 | 302 | |

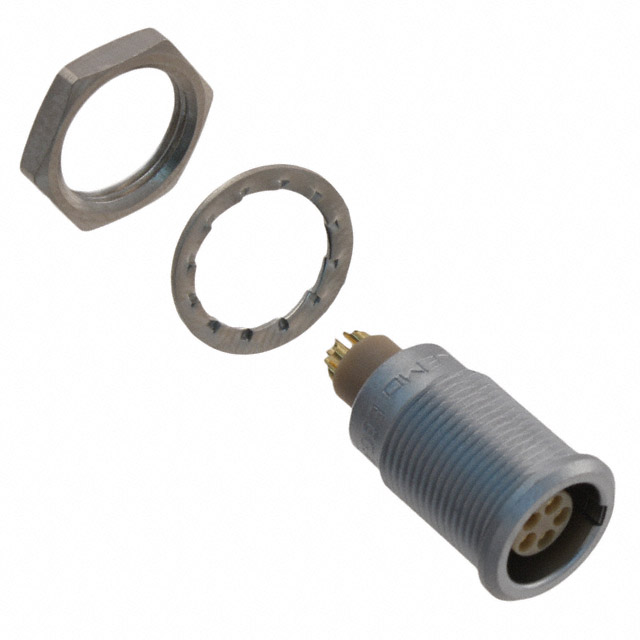

 LEMO | 1.5 Ám | 59 Áin | Panel Mount | IP50 - Dust Protected | Metal | Gold | Receptacle Female Sockets | Silver | Polyetheretherketone (PEEK) | 6.5 A | -55 C | 250 °C | Shielded | Chrome | A | UL94 V-0 | Bronze | Bulkhead - Rear Side Nut | Push-Pull | Brass | 5 | 305 | |
LEMO | 1.5 Ám | 59 Áin | Panel Mount Through Hole | IP50 - Dust Protected | Metal | Gold | Receptacle Female Sockets | Silver | Polyetheretherketone (PEEK) | 2 A | -55 C | 250 °C | Shielded | Chrome | A | Solder | UL94 V-0 | Bronze | Bulkhead - Rear Side Nut | Push-Pull | Brass | 9 | 309 |
