M2043TN Series
Manufacturer: NKK Switches
Beta
⌘K

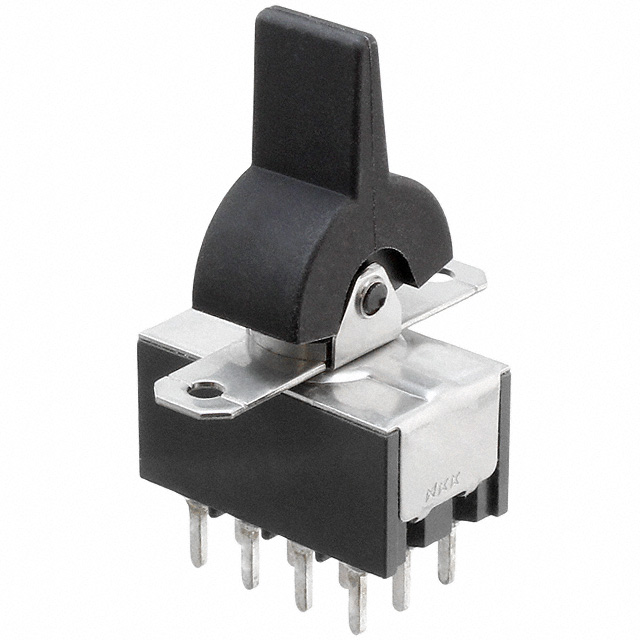

SWITCH ROCKER 4PDT 6A 125V
| Part | Electrical Life | Mechanical Life | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Termination Style | Actuator Marking | Voltage Rating - AC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Current Rating (Amps) | Switch Function | Approval Agency | Color - Actuator/Cap | Circuit | Voltage Rating - DC | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 50000 Cycles | Paddle | 85 °C | -30 ░C | Epoxy Sealed Terminals | PC Pin | No Marking | 125 V | 10.1 mm | 17.8 mm | 3 A 6 A | On-Off-On | CSA UL | Black | 4PDT | 30 V | Flange Panel Mount |
 NKK Switches | 25000 Steps | 50000 Cycles | Actuator Arm Cap Required | 85 °C | -30 ░C | Epoxy Sealed Terminals | PC Pin | Varies by Cap | 125 V | 3 A 6 A | On-Off-On | CSA UL | 4PDT | 30 V | Flange Panel Mount | |||
 NKK Switches | 25000 Steps | 50000 Cycles | Paddle | 85 °C | -30 ░C | Epoxy Sealed Terminals | Solder Lug | No Marking | 125 V | 10.1 mm | 17.8 mm | 3 A 6 A | On-Off-On | CSA UL | Black | 4PDT | 30 V | Flange Panel Mount |
