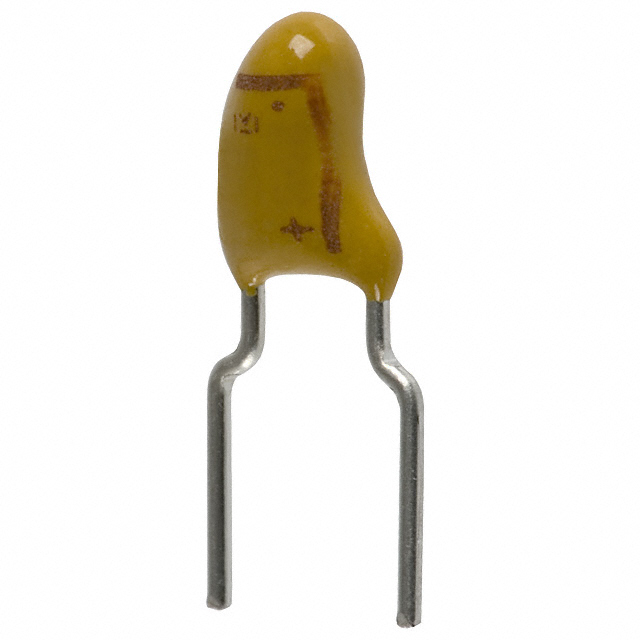

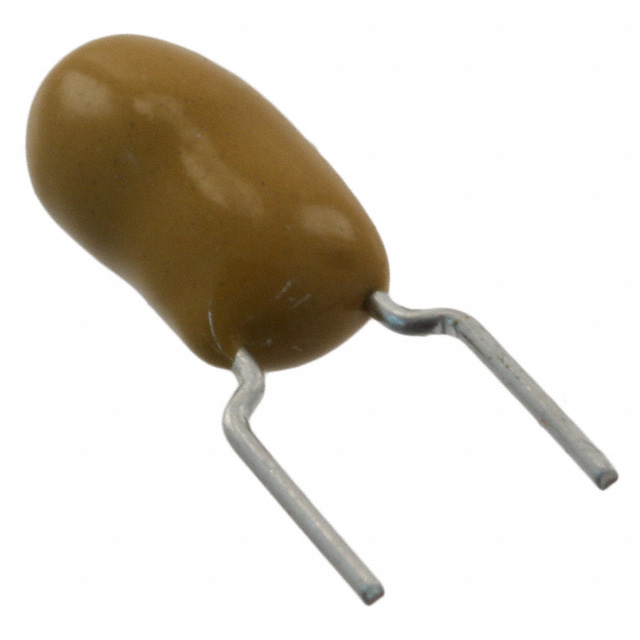

T356A Series

Manufacturer: KEMET

Catalog

CAP TANT 3.3UF 10% 10V RADIAL

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Voltage - Rated	Manufacturer Size Code	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Features	Mounting Type	Capacitance	Package / Case
KEMET T356A335K010AS	0.339 in	8.6 mm	Conformal Coated	-55 C	125 °C	0.2 in	5.08 mm	10 Ohm	10 V	A	4.5 mm	0.177 "	10 %	General Purpose	Through Hole	3.3 µF	Radial
KEMET T356A155K025AT	0.339 in	8.6 mm	Conformal Coated	-55 C	125 °C	0.2 in	5.08 mm	8 Ohm	25 VDC	A	4.5 mm	0.177 "	10 %	General Purpose	Through Hole	1500 nF	Radial
KEMET T356A224K050AT	0.339 in	8.6 mm	Conformal Coated	-55 C	125 °C	0.2 in	5.08 mm	17 Ohm	50 VDC	A	4.5 mm	0.177 "	10 %	General Purpose	Through Hole	0.22 µF	Radial
KEMET T356A154K050AT	0.339 in	8.6 mm	Conformal Coated	-55 C	125 °C	0.2 in	5.08 mm	21 Ohm	50 VDC	A	4.5 mm	0.177 "	10 %	General Purpose	Through Hole	0.15 ÁF	Radial
KEMET T356A474K035AS	0.339 in	8.6 mm	Conformal Coated	-55 C	125 °C	0.2 in	5.08 mm	13 Ohm	35 V	A	4.5 mm	0.177 "	10 %	General Purpose	Through Hole	0.47 µF	Radial
KEMET T356A104K035AS	0.339 in	8.6 mm	Conformal Coated	-55 C	125 °C	0.2 in	5.08 mm	26 Ohm	35 V	A	4.5 mm	0.177 "	10 %	General Purpose	Through Hole	100000 pF	Radial
KEMET T356A104K050AS	0.339 in	8.6 mm	Conformal Coated	-55 C	125 °C	0.2 in	5.08 mm	26 Ohm	50 VDC	A	4.5 mm	0.177 "	10 %	General Purpose	Through Hole	100000 pF	Radial
KEMET T356A155K025AS	0.339 in	8.6 mm	Conformal Coated	-55 C	125 °C	0.2 in	5.08 mm	8 Ohm	25 VDC	A	4.5 mm	0.177 "	10 %	General Purpose	Through Hole	1500 nF	Radial
KEMET T356A105K025AS	0.339 in	8.6 mm	Conformal Coated	-55 C	125 °C	0.2 in	5.08 mm	10 Ohm	25 VDC	A	4.5 mm	0.177 "	10 %	General Purpose	Through Hole	1 µF	Radial
KEMET T356A475K006AT	0.339 in	8.6 mm	Conformal Coated	-55 C	125 °C	0.2 in	5.08 mm	10 Ohm	6.3 VDC	A	4.5 mm	0.177 "	10 %	General Purpose	Through Hole	4.7 µF	Radial
