MAX14851 Series

Catalog

SIX-CHANNEL DIGITAL ISOLATOR EVK

Part	Type	Supplied Contents	Function	Utilized IC / Part	Primary Attributes [custom]	Data Rate	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Rise / Fall Time (Typ) [Max] [custom]	Rise / Fall Time (Typ) [custom]	Inputs - Side 1/Side 2 [y]	Inputs - Side 1/Side 2 [x]	Number of Channels [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Voltage - Isolation	Channel Type	Package / Case	Package / Case	Package / Case	Technology	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Pulse Width Distortion (Max) [Max]	Supplier Device Package

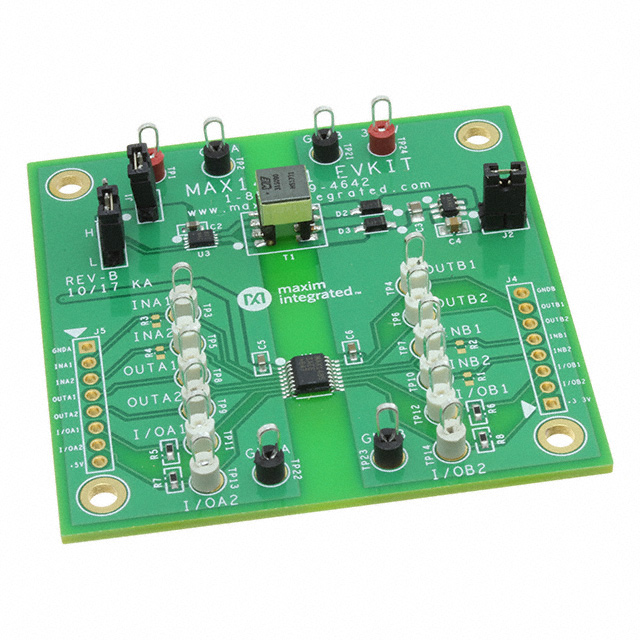

Analog Devices Inc./Maxim Integrated MAX14851EVKIT#	Interface	Board(s)	Digital Isolator	MAX14851	6
Analog Devices Inc./Maxim Integrated MAX14851AEE+T	General Purpose					2 Mbps 50 Mbps	11.6 ns	11.8 ns	5 ns	5 ns	4	4	6	5.5 V	3 V	600 Vrms	Bidirectional Unidirectional	0.154 in	16-SSOP	3.9 mm	Capacitive Coupling	Surface Mount	125 °C	-40 °C	2.9 ns	16-QSOP
Analog Devices Inc./Maxim Integrated MAX14851AEE+	General Purpose					2 Mbps 50 Mbps	11.6 ns	11.8 ns	5 ns	5 ns	4	4	6	5.5 V	3 V	600 Vrms	Bidirectional Unidirectional	0.154 in	16-SSOP	3.9 mm	Capacitive Coupling	Surface Mount	125 °C	-40 °C	2.9 ns	16-QSOP
