S33F1C-P Series
Manufacturer: ODU
Beta
⌘K

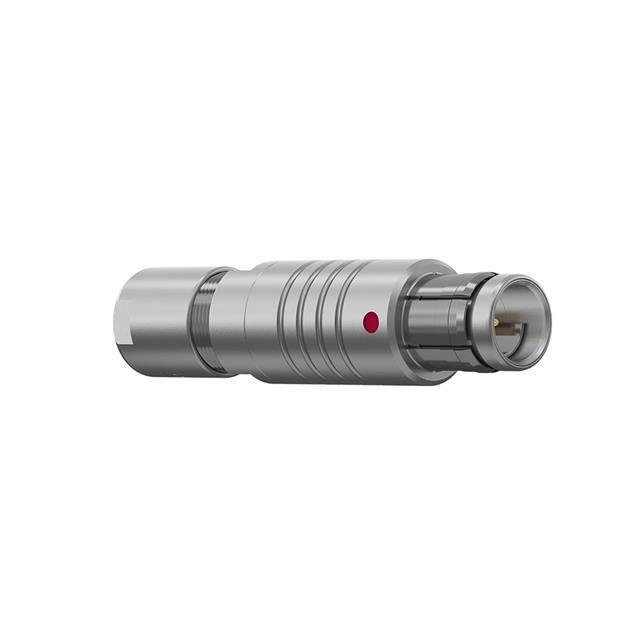

ODU MINI-SNAP STRAIGHT PLUG, SZ3
| Part | Contact Finish - Mating | Shell Material | Contact Material | Features | Number of Positions | Shielding | Backshell Material, Plating | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Orientation [custom] | Current Rating (Amps) | Insert Material | Color | Fastening Type | Material Flammability Rating | Primary Material | Mounting Type | Connector Type | Applications | Voltage Rating | Shell Finish | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | Brass | Brass | Backshell | 27 | Unshielded | Brass Chrome over Nickel | 0.177 " | 0.157 in | 4 mm | 4.5 mm | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 1 | 7.5 A | Polyetheretherketone (PEEK) | Silver | Push-Pull | UL94 V-0 | Metal | Free Hanging (In-Line) | Plug Male Pins | Industrial Medical Military Testing Equipment & Measurement | 300 VDC | Chrome over Nickel | 3 TPI | |
Gold | Brass | Brass | Backshell | 2 | Unshielded | Brass Chrome over Nickel | 0.138 in | 0.118 in | 3 mm | 3.5 mm | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 1 | 32 A | Polyetheretherketone (PEEK) | Silver | Push-Pull | UL94 V-0 | Metal | Free Hanging (In-Line) | Plug Male Pins | Industrial Medical Military Testing Equipment & Measurement | 600 V | Chrome over Nickel | 3 TPI | |
Gold | Brass | Brass | Backshell | 27 | Unshielded | Brass Chrome over Nickel | 0.138 in | 0.118 in | 3 mm | 3.5 mm | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 1 | 7.5 A | Polyetheretherketone (PEEK) | Silver | Push-Pull | UL94 V-0 | Metal | Free Hanging (In-Line) | Plug Male Pins | Industrial Medical Military Testing Equipment & Measurement | 300 VDC | Chrome over Nickel | 3 TPI | |
Gold | Brass | Brass | Backshell | 18 | Unshielded | Brass Chrome over Nickel | 0.138 in | 0.118 in | 3 mm | 3.5 mm | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 1 | 7.5 A | Polyetheretherketone (PEEK) | Silver | Push-Pull | UL94 V-0 | Metal | Free Hanging (In-Line) | Plug Male Pins | Industrial Medical Military Testing Equipment & Measurement | 366 V | Chrome over Nickel | 3 TPI | |
Gold | Brass | Brass | Backshell | 12 | Unshielded | Brass Chrome over Nickel | 0.197 in | 0.177 in | 4.5 mm | 5 mm | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 1 | 12 Amps | Polyetheretherketone (PEEK) | Silver | Push-Pull | UL94 V-0 | Metal | Free Hanging (In-Line) | Plug Male Pins | Industrial Medical Military Testing Equipment & Measurement | 450 V | Chrome over Nickel | 3 TPI | |
Gold | Brass | Brass | Backshell | 27 | Unshielded | Brass Chrome over Nickel | 0.453 in | 0.413 in | 10.5 mm | 11.5 mm | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 1 | 7.5 A | Polyetheretherketone (PEEK) | Silver | Push-Pull | UL94 V-0 | Metal | Free Hanging (In-Line) | Plug Male Pins | Industrial Medical Military Testing Equipment & Measurement | 300 VDC | Chrome over Nickel | 3 TPI | |
Gold | Brass | Brass | Backshell | 2 | Unshielded | Brass Chrome over Nickel | 0.157 in | 0.138 " | 3.5 mm | 4 mm | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 1 | 32 A | Polyetheretherketone (PEEK) | Silver | Push-Pull | UL94 V-0 | Metal | Free Hanging (In-Line) | Plug Male Pins | Industrial Medical Military Testing Equipment & Measurement | 600 V | Chrome over Nickel | 3 TPI | |
Gold | Brass | Brass | Backshell | 18 | Unshielded | Brass Chrome over Nickel | 0.177 " | 0.157 in | 4 mm | 4.5 mm | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 1 | 7.5 A | Polyetheretherketone (PEEK) | Silver | Push-Pull | UL94 V-0 | Metal | Free Hanging (In-Line) | Plug Male Pins | Industrial Medical Military Testing Equipment & Measurement | 366 V | Chrome over Nickel | 3 TPI | |
Gold | Brass | Brass | Backshell | 2 | Unshielded | Brass Chrome over Nickel | 0.335 in | 0.315 " | 8 mm | 8.5 mm | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 1 | 32 A | Polyetheretherketone (PEEK) | Silver | Push-Pull | UL94 V-0 | Metal | Free Hanging (In-Line) | Plug Male Pins | Industrial Medical Military Testing Equipment & Measurement | 600 V | Chrome over Nickel | 3 TPI | |
Gold | Brass | Brass | Backshell | 12 | Unshielded | Brass Chrome over Nickel | 0.157 in | 0.138 " | 3.5 mm | 4 mm | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 1 | 12 Amps | Polyetheretherketone (PEEK) | Silver | Push-Pull | UL94 V-0 | Metal | Free Hanging (In-Line) | Plug Male Pins | Industrial Medical Military Testing Equipment & Measurement | 450 V | Chrome over Nickel | 3 TPI |
