2384214 Series

Catalog

PCIE G5,164P,ASSY,1.5TAB+C-POS,3

Part	Contact Material	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Termination Rows	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Finish	Material - Insulation [custom]	Number of Positions	Card Thickness	Card Thickness	Gender	Card Type	Mounting Type	Features	Number of Rows	Termination	Color	Contact Finish Thickness	Contact Finish Thickness	Read Out	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Material - Insulation
TE Connectivity Raychem Cable Protection 5-2384214-4	Copper Alloy	71	11	2	0.039 in	1 mm	85 °C	-40 °C	Cantilever	Gold	Plastic	164	0.062 in	1.57 mm	Female	PCI Express™	Surface Mount	Board Guide Locking Ramp Solder Retention	2	Solder	Black	0.76 Ám	30 Áin	Dual

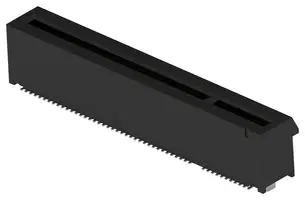

TE Connectivity Raychem Cable Protection 4-2384214-3	Copper Alloy			2	0.039 in	1 mm	85 °C	-40 °C	Cantilever	Gold		98	0.062 in	1.57 mm	Female	PCI Express™	Surface Mount	Board Guide Locking Ramp	2	Solder	Black	0.38 µm	15 µin	Dual	38	11	Thermoplastic
TE Connectivity Raychem Cable Protection 5-2384214-7	Copper Alloy			2	0.039 in	1 mm	85 °C	-40 °C	Cantilever	Gold	Plastic	98	0.062 in	1.57 mm	Female	PCI Express™	Surface Mount	Board Guide Locking Ramp Solder Retention	2	Solder	Black	0.76 Ám	30 Áin	Dual	38	11
TE Connectivity Raychem Cable Protection 1-2384214-3	Copper Alloy			2	0.039 in	1 mm	85 °C	-40 °C	Cantilever	Gold	Plastic	98	0.062 in	1.57 mm	Female	PCI Express™	Surface Mount	Board Guide Locking Ramp Solder Retention	2	Solder	Black	0.38 µm	15 µin	Dual	38	11
