5120/30C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

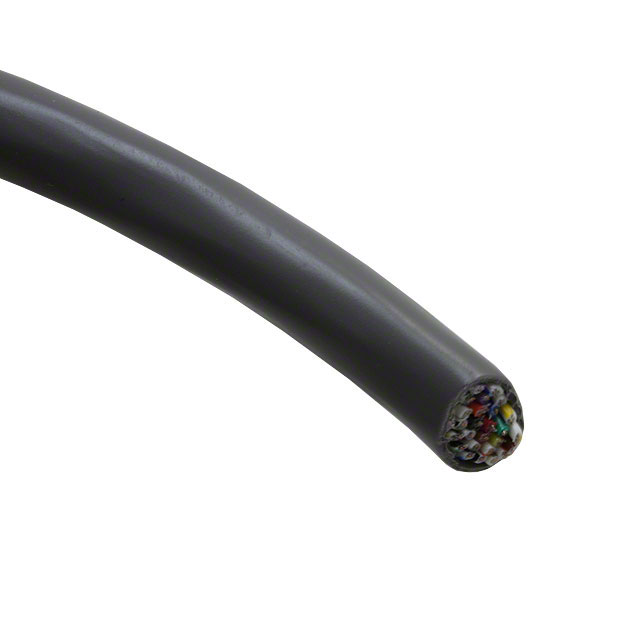

CABLE 30COND 24AWG SHLD
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Usage | Number of Conductors | Features | Jacket Color | Jacket (Insulation) Material | Conductor Material | Cable Type | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Wire Gauge | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 0.813 mm | 0.032 in | ISO 10993 | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Communication Control | 30 | Biological Compatibility Drain Wire Rip Cord | Slate | Poly-Vinyl Chloride (PVC) | Copper Tinned | Multi-Conductor | Braid Foil | -35 °C | 105 ░C | 300 VDC | 24 AWG | 152.4 m | 500 ft | 0.378 in | 9.6 mm | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 0.813 mm | 0.032 in | ISO 10993 | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Communication Control | 30 | Biological Compatibility Drain Wire Rip Cord | Slate | Poly-Vinyl Chloride (PVC) | Copper Tinned | Multi-Conductor | Braid Foil | -35 °C | 105 ░C | 300 VDC | 24 AWG | 0.378 in | 9.6 mm | 100 ft | 30.5 m | ||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 0.813 mm | 0.032 in | ISO 10993 | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Communication Control | 30 | Biological Compatibility Drain Wire Rip Cord | Black | Poly-Vinyl Chloride (PVC) | Copper Tinned | Multi-Conductor | Braid Foil | -35 °C | 105 ░C | 300 VDC | 24 AWG | 304.8 m | 1000 ft | 0.378 in | 9.6 mm |
