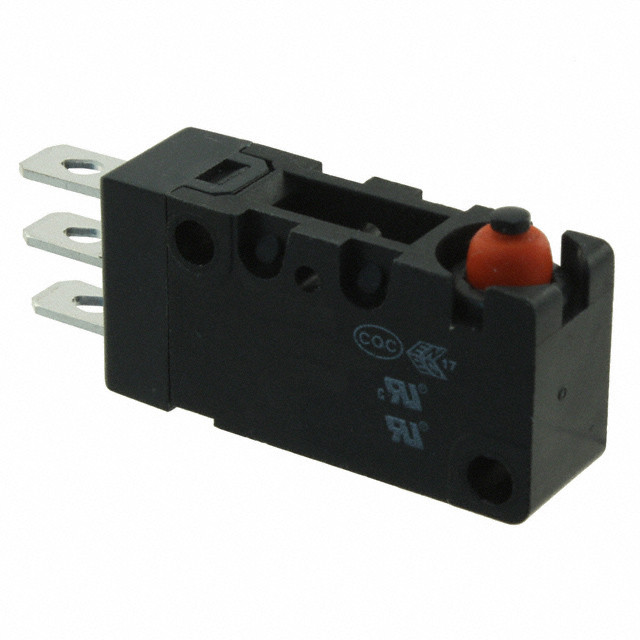

V15W1 Series

Basic / Snap Action Switches V Basics

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

Basic / Snap Action Switches V Basics

Catalog

Basic / Snap Action Switches V Basics

Part	Mechanical Life	Overtravel [custom]	Overtravel [custom]	Voltage Rating - AC	Pretravel	Pretravel	Circuit	Mounting Type	Actuator Type	Electrical Life	Operating Position	Operating Position	Switch Function	Operating Force	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Differential Travel	Differential Travel	Termination Style	Voltage Rating - DC	Release Force	Operating Position [x]	Operating Position [x]	Ingress Protection

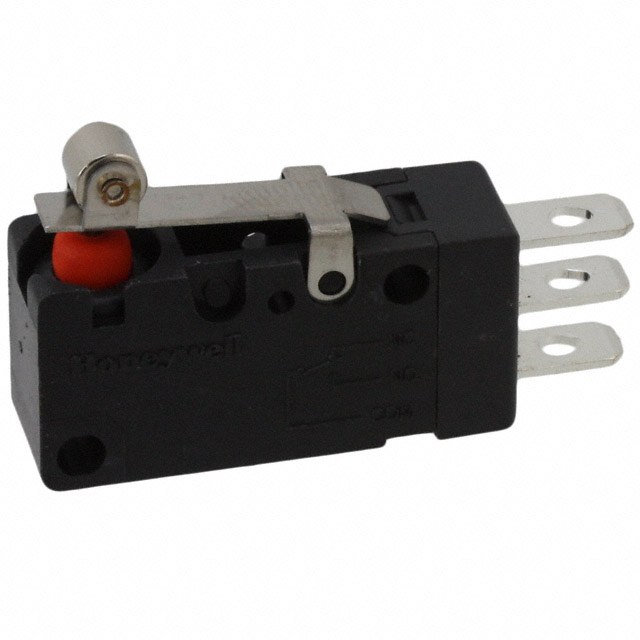

Honeywell Sensing and Productivity Solutions V15W11DZ200A05-AW1	1000000 Cycles	0.03 "	0.76 mm	125 V	0.063 in	1.6 mm	SPDT	Chassis Mount	Lever Roller	10000 Cycles	20.6 mm	0.812 in	On-Mom	240 gf	100 mA	85 °C	-40 C	0.016 in	0.4 mm	Quick Connect	48 V

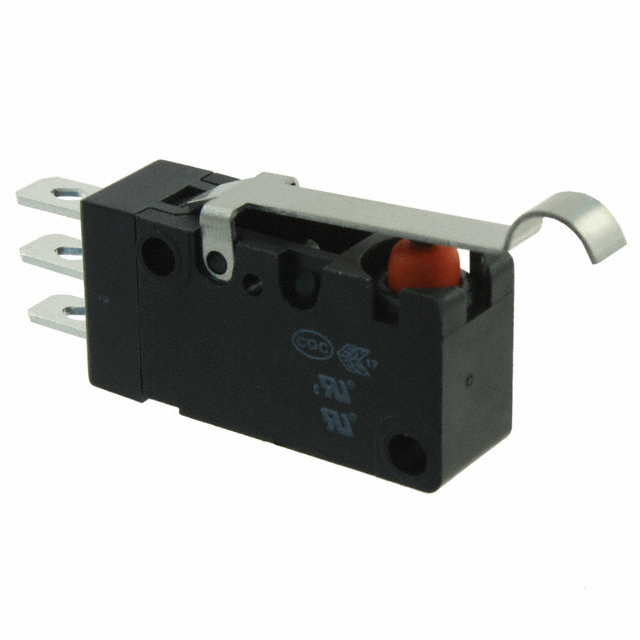

Honeywell Sensing and Productivity Solutions V15W11-DZ200A04-W2	1000000 Cycles	0.051 "	1.3 mm	125 V	0.125 in	3.2 mm	SPDT	Chassis Mount	Lever Simulated Roller	10000 Cycles			On-Mom	120 gf	5 A	85 °C	-40 C	0.047 in	1.2 mm	Quick Connect	30 V	20 gf	18.5 mm	0.73 in
Honeywell Sensing and Productivity Solutions V15W11-DZ200-AW1	1000000 Cycles	0.03 "	0.76 mm	125 V	0.063 in	1.6 mm	SPDT	Chassis Mount	Round (Pin Plunger)	10000 Cycles	14.7 mm	0.579 in	On-Mom	0.2 kgf	100 mA	85 °C	-40 C	0.016 in	0.4 mm	Quick Connect	48 V	50 gf
Honeywell Sensing and Productivity Solutions V15W11-DZ200-W3	1000000 Cycles	0.031 "	0.79 mm	125 V	0.063 in	1.6 mm	SPDT	Chassis Mount	Round (Pin Plunger)	10000 Cycles	14.7 mm	0.579 in	On-Mom	0.2 kgf	0.5 mA 10 A	85 °C	-40 C	0.016 in	0.4 mm	Quick Connect	125 VDC	50 gf
Honeywell Sensing and Productivity Solutions V15W11EZ015B03KAW1	1000000 Cycles	0.102 "	2.6 mm	125 V	0.252 in	6.4 mm	SPDT	Chassis Mount	Lever Straight	10000 Cycles	15.3 mm	0.602 in	On-Mom	5 gf	100 mA	85 °C	-40 C	0.094 in	2.4 mm	Quick Connect	48 V	2 gf
Honeywell Sensing and Productivity Solutions V15W11DZ200A02-AW1	1000000 Cycles	0.051 "	1.3 mm	125 V	0.125 in	3.2 mm	SPDT	Chassis Mount	Lever Straight	10000 Cycles	15.3 mm	0.602 in	On-Mom	120 gf	100 mA	85 °C	-40 C	0.047 in	1.2 mm	Quick Connect	48 V	10 gf

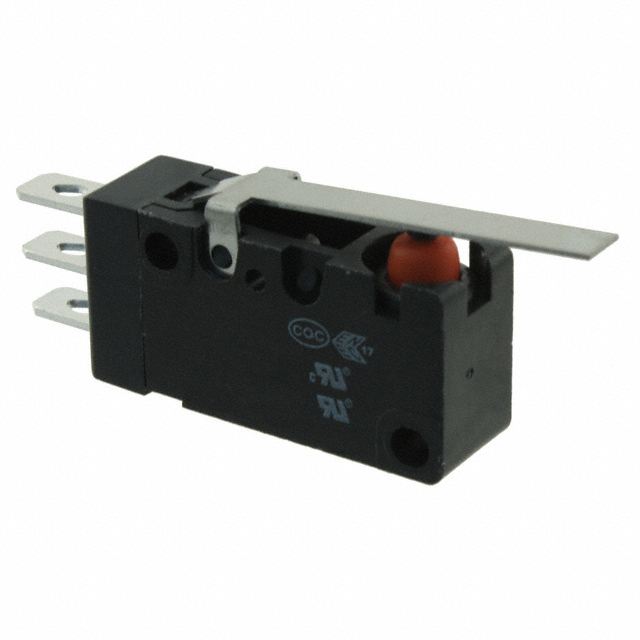

Honeywell Sensing and Productivity Solutions V15W11-DZ200A02-W2	1000000 Cycles	0.051 "	1.3 mm	125 V	0.125 in	3.2 mm	SPDT	Chassis Mount	Lever Straight	10000 Cycles	15.3 mm	0.602 in	On-Mom	120 gf	5 A	85 °C	-40 C	0.047 in	1.2 mm	Quick Connect	30 V	10 gf
Honeywell Sensing and Productivity Solutions V15W11EC025B01KAW1	1000000 Cycles	0.031 "	0.79 mm	125 V	0.063 in	1.6 mm	SPST-NC	Chassis Mount	Lever Straight	10000 Cycles	15.3 mm	0.602 in	On-Mom		100 mA	85 °C	-40 C	0.016 in	0.4 mm	Quick Connect	48 V
Honeywell Sensing and Productivity Solutions V15W11-EP015-AW1	1000000 Cycles	0.03 "	0.76 mm	125 V	0.063 in	1.6 mm	SPST-NO	Chassis Mount	Round (Pin Plunger)	10000 Cycles	14.7 mm	0.579 in	Off-Mom	15 gf	100 mA	85 °C	-40 C	0.016 in	0.4 mm	Quick Connect	48 V	3 gf
Honeywell Sensing and Productivity Solutions V15W11WP015A05-KW1	1000000 Cycles	0.031 "	0.79 mm	125 V	0.063 in	1.6 mm	SPST-NO	Chassis Mount	Lever Roller	10000 Cycles	20.6 mm	0.812 in	Off-Mom	18 gf	100 mA	85 °C	-40 C	0.016 in	0.4 mm	Wire Leads	48 V	3 gf			IP67 - Dust Tight Waterproof
