1241.6934 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

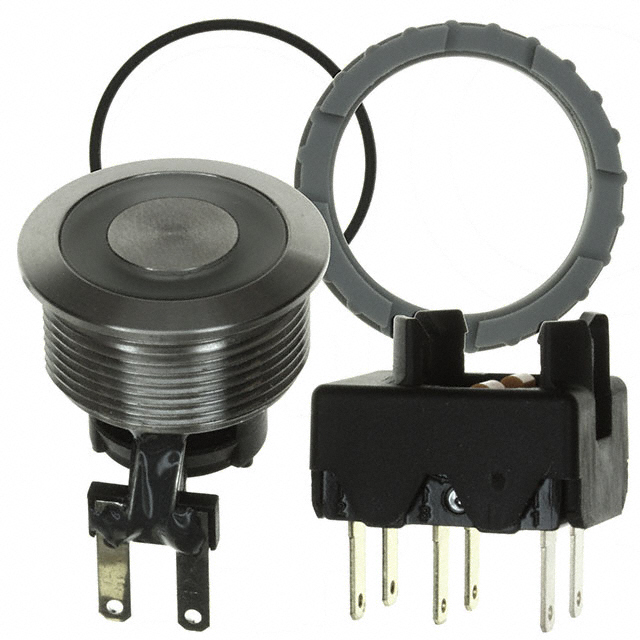

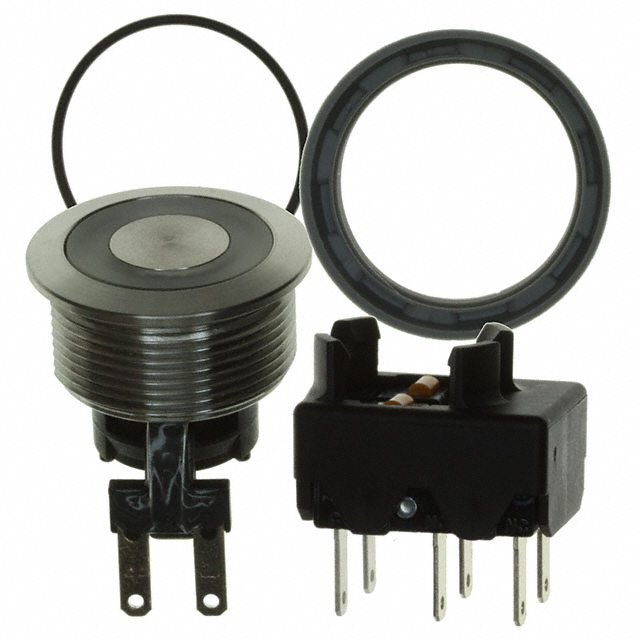

SWITCH PUSHBUTTON DPDT 5A 125V
| Part | Electrical Life | Mechanical Life | Current Rating (Amps) | Type | Switch Function | Color - Actuator/Cap | Termination Style | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Marking | Illumination Voltage (Nominal) | Actuator Type | Panel Cutout Dimensions [diameter] | Circuit | Voltage Rating - AC | Illumination Type, Color | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 200000 Cycles | 1500000 Cycles | 5 A | Anti-Vandal Illuminated | On-Mom | Silver | Quick Connect - 0.110" (2.8mm) | IP40 | 85 °C | -25 °C | No Marking | 24 V | Button Flush Round | 22.1 mm | DPDT | 125 V | Green LED | Panel Mount Front |
 SCHURTER Inc. | 200000 Cycles | 1500000 Cycles | 5 A | Anti-Vandal Illuminated | On-Mom | Silver | Quick Connect - 0.110" (2.8mm) | IP40 | 85 °C | -25 °C | No Marking | 24 V | Button Flush Round | 22.1 mm | DPDT | 125 V | LED Red | Panel Mount Front |
