M80-561 Series

Catalog

CONNECTOR, PLUG, 26POS, 2ROW, CRIMP ROHS COMPLIANT: YES

Part	Pitch [x]	Pitch [x]	Connector Type	Wire Type	Color	Number of Positions	Contact Finish	Contact Type	Mounting Type	Number of Rows [custom]	Row Spacing	Row Spacing	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Features
Harwin Inc. M80-5612605	0.079 in	2 mm	Header	Discrete	Black	26	Gold	Male Pin	Free Hanging (In-Line)	2	2 mm	0.079 in	Crimp	0.25 Ám	10 Áin	24 AWG	28 AWG	Jackscrews

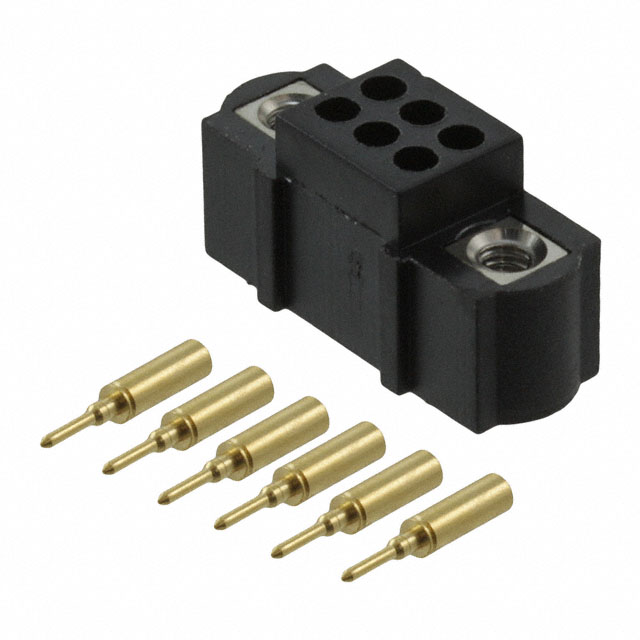

Harwin Inc. M80-5610605	0.079 in	2 mm	Header	Discrete	Black	6	Gold	Male Pin	Free Hanging (In-Line)	2	2 mm	0.079 in	Crimp	0.25 Ám	10 Áin	24 AWG	28 AWG	Jackscrews

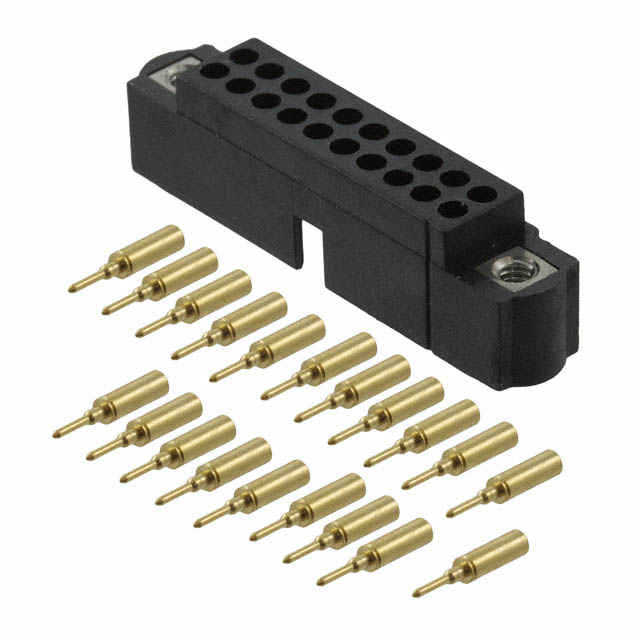

Harwin Inc. M80-5612005	0.079 in	2 mm	Header	Discrete	Black	20	Gold	Male Pin	Free Hanging (In-Line)	2	2 mm	0.079 in	Crimp	0.25 Ám	10 Áin	24 AWG	28 AWG	Jackscrews

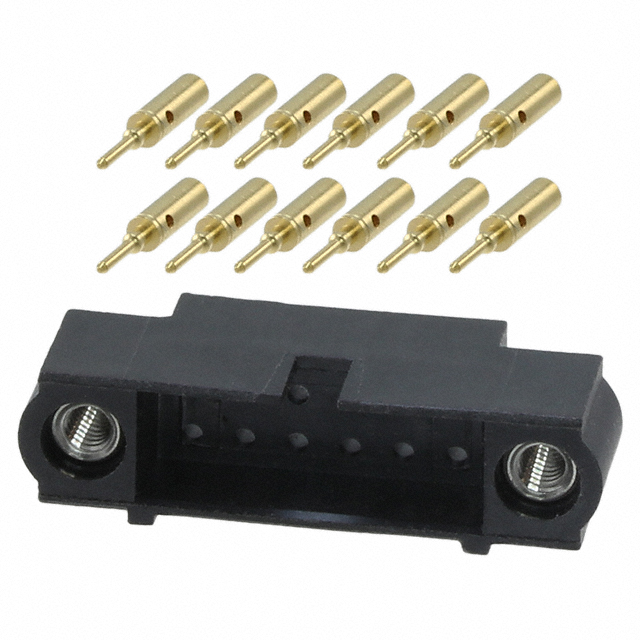

Harwin Inc. M80-5611205	0.079 in	2 mm	Header	Discrete	Black	12	Gold	Male Pin	Free Hanging (In-Line)	2	2 mm	0.079 in	Crimp	0.25 Ám	10 Áin	24 AWG	28 AWG	Jackscrews
Harwin Inc. M80-5614205	0.079 in	2 mm	Header	Discrete	Black	42	Gold	Male Pin	Free Hanging (In-Line)	2	2 mm	0.079 in	Crimp	0.25 Ám	10 Áin	24 AWG	28 AWG	Jackscrews
