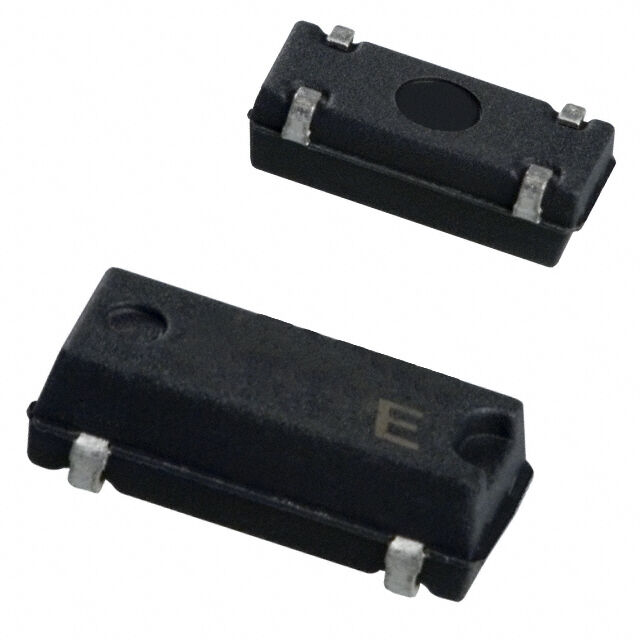

MC-306 Series

Manufacturer: EPSON

Catalog

MC-306 32.7680KF-AC: ROHS SMD T/

Part	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Supplier Device Package	Type	Operating Mode	Frequency Tolerance	Frequency	Load Capacitance	Mounting Type
EPSON MC-306 32.7680KF-AC ROHS	35 kOhms 50 kOhms	0.1 in	2.54 mm	8 mm	0.126 in	3.2 mm	0.315 in	85 °C	-40 C	4-SOJ	5.5 mm	4-SOJ	kHz Crystal (Tuning Fork)	Fundamental	10 ppm	0.032768 MHz	9 pF	Surface Mount
EPSON MC-306 32.7680KB-C5 PURE SN	35 kOhms 50 kOhms	0.1 in	2.54 mm	8 mm	0.126 in	3.2 mm	0.315 in	85 °C	-40 C	4-SOJ	5.5 mm	4-SOJ	kHz Crystal (Tuning Fork)	Fundamental	50 ppm	0.032768 MHz	18 pF	Surface Mount
EPSON MC-306 32.7680KF-E0 PURE SN	35 kOhms 50 kOhms	0.1 in	2.54 mm	8 mm	0.126 in	3.2 mm	0.315 in	85 °C	-40 C	4-SOJ	5.5 mm	4-SOJ	kHz Crystal (Tuning Fork)	Fundamental	10 ppm	0.032768 MHz	6 pF	Surface Mount
EPSON MC-306 32.7680K-T5 ROHS	35 kOhms 50 kOhms	0.1 in	2.54 mm	8 mm	0.126 in	3.2 mm	0.315 in	85 °C	-40 C	4-SOJ	5.5 mm	4-SOJ	kHz Crystal (Tuning Fork)	Fundamental	20 ppm	0.032768 MHz	13 pF	Surface Mount
EPSON MC-306 32.7680KB-E5 ROHS	35 kOhms 50 kOhms	0.1 in	2.54 mm	8 mm	0.126 in	3.2 mm	0.315 in	85 °C	-40 C	4-SOJ	5.5 mm	4-SOJ	kHz Crystal (Tuning Fork)	Fundamental	50 ppm	0.032768 MHz	6 pF	Surface Mount
EPSON MC-306 32.7680K-K5 ROHS	35 kOhms 50 kOhms	0.1 in	2.54 mm	8 mm	0.126 in	3.2 mm	0.315 in	85 °C	-40 C	4-SOJ	5.5 mm	4-SOJ	kHz Crystal (Tuning Fork)	Fundamental	20 ppm	0.032768 MHz	10 pF	Surface Mount
EPSON MC-306 32.7680K-TX ROHS	35 kOhms 50 kOhms	0.1 in	2.54 mm	8 mm	0.126 in	3.2 mm	0.315 in	85 °C	-40 C	4-SOJ	5.5 mm	4-SOJ	kHz Crystal (Tuning Fork)	Fundamental	20 ppm	0.032768 MHz	13 pF	Surface Mount
EPSON MC-306 32.7680KF-WX ROHS	35 kOhms 50 kOhms	0.1 in	2.54 mm	8 mm	0.126 in	3.2 mm	0.315 in	85 °C	-40 C	4-SOJ	5.5 mm	4-SOJ	kHz Crystal (Tuning Fork)	Fundamental	10 ppm	0.032768 MHz	12 pF	Surface Mount
EPSON MC-306 32.7680KF-AJ0 ROHS	35 kOhms 50 kOhms	0.1 in	2.54 mm	8 mm	0.126 in	3.2 mm	0.315 in	85 °C	-40 C	4-SOJ	5.5 mm	4-SOJ	kHz Crystal (Tuning Fork)	Fundamental	10 ppm	0.032768 MHz	8 pF	Surface Mount
EPSON MC-306 32.7680K-G5 ROHS	35 kOhms 50 kOhms	0.1 in	2.54 mm	8 mm	0.126 in	3.2 mm	0.315 in	85 °C	-40 C	4-SOJ	5.5 mm	4-SOJ	kHz Crystal (Tuning Fork)	Fundamental	20 ppm	0.032768 MHz	20 pF	Surface Mount
