VAOL-3 Series

Manufacturer: Visual Communications Company - VCC

Catalog

LED WHITE CLEAR T/H

Part	Viewing Angle	Lens Style	Voltage - Forward (Vf) (Typ)	Mounting Type	Lens Transparency	Color	Configuration	Lens Color	Current - Test	Millicandela Rating	Package / Case	Height (Max) [z]	Lens Size [diameter]	Wavelength - Dominant	Supplier Device Package	Wavelength	Operating Temperature [Min]	Operating Temperature [Max]	Type	Orientation	Current - DC Forward (If) (Max)	Height (Max) [z]

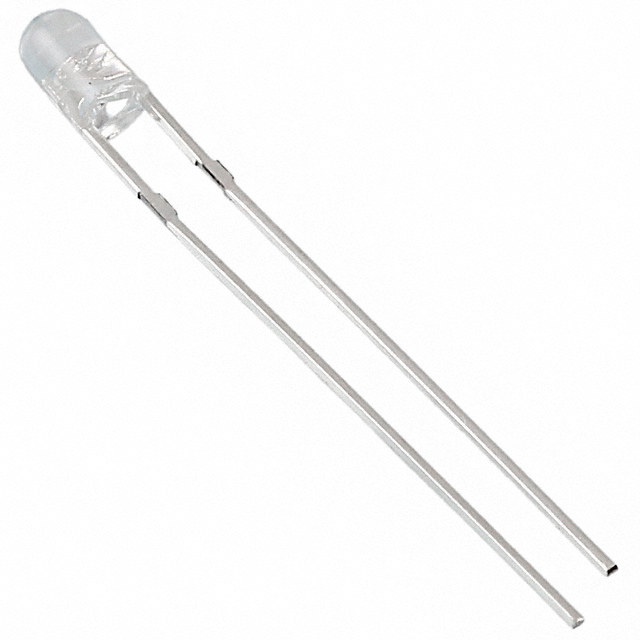

Visual Communications Company - VCC VAOL-3LWY4	60 °	Round with Domed Top	3.5 V	Through Hole	Clear	White	Standard	Colorless	20 mA	2500 mcd	Radial	5.55 mm	2.9 mm

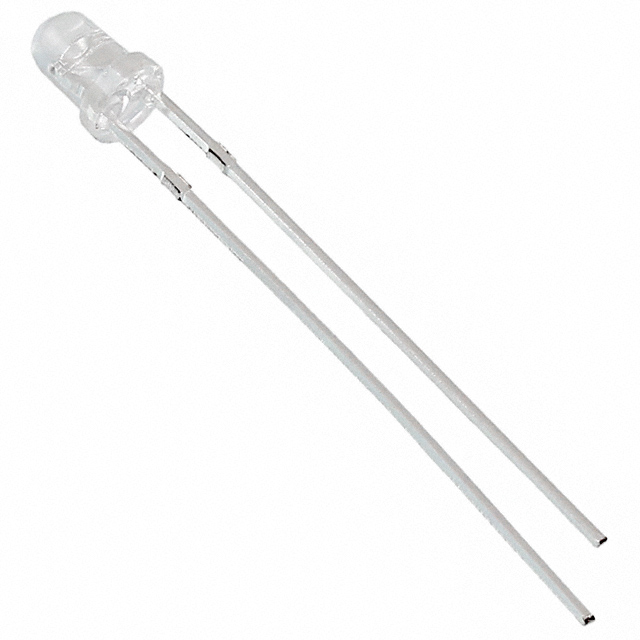

Visual Communications Company - VCC VAOL-3GSBY4	30 °	Round with Domed Top	3.5 V	Through Hole	Clear	Blue	Standard	Colorless	20 mA	2500 mcd	Radial	5.55 mm	2.9 mm	470 nm

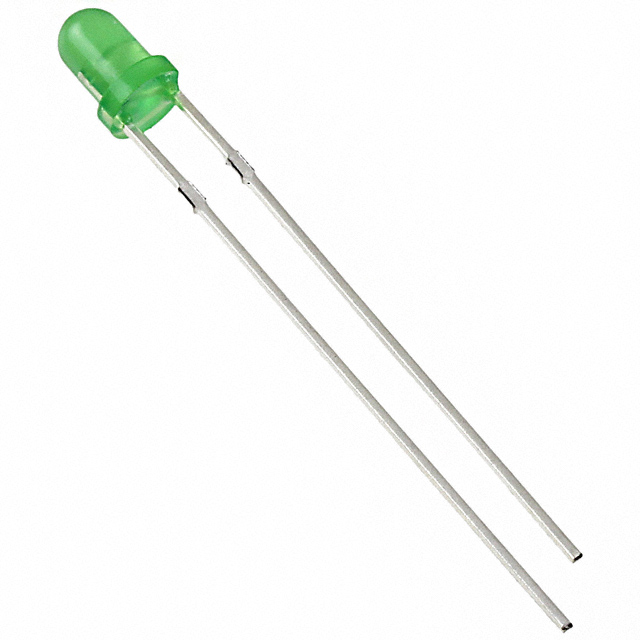

Visual Communications Company - VCC VAOL-3LDE2	60 °	Round with Domed Top	2.2 V	Through Hole	Diffused	Green	Standard	Green	20 mA	80 mcd	Radial	5.55 mm	2.9 mm	570 nm

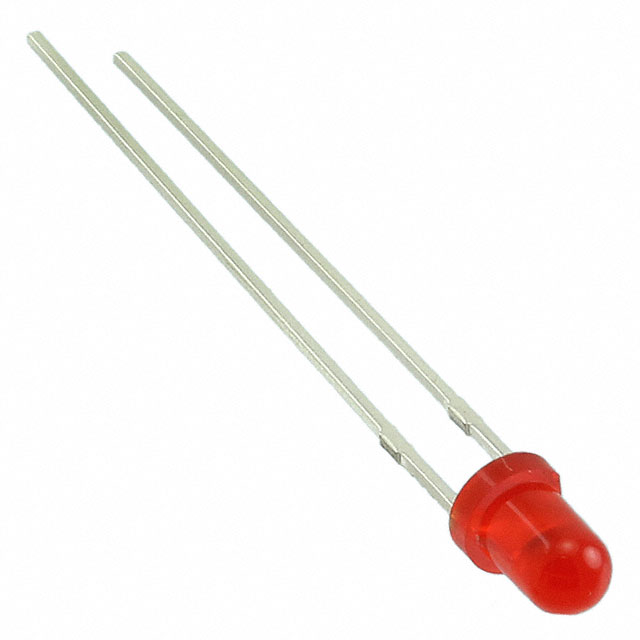

Visual Communications Company - VCC VAOL-3LAE2	60 °	Round with Domed Top	1.8 V	Through Hole	Diffused	Red	Standard	Red	20 mA	80 mcd	Radial	5.55 mm	2.9 mm	640 nm	Radial Lead

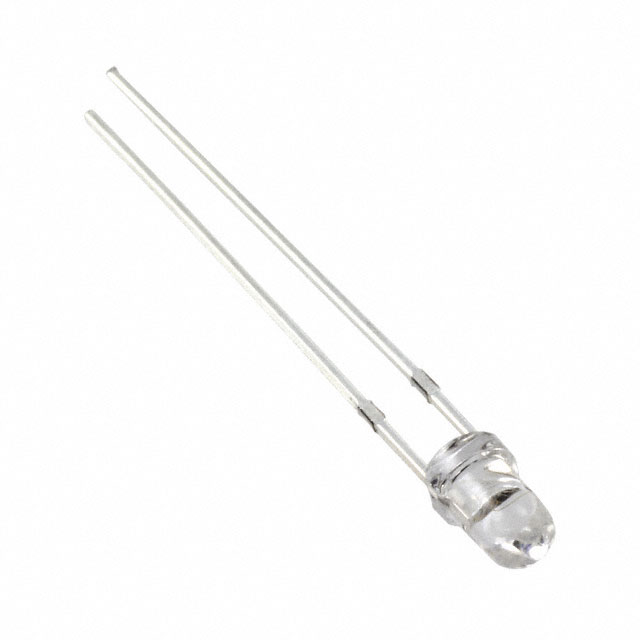

Visual Communications Company - VCC VAOL-3GUV0Y4	60 °		3 V	Through Hole							Radial					405 nm	-20 °C	80 °C	Ultraviolet (UV)	Top View	30 mA

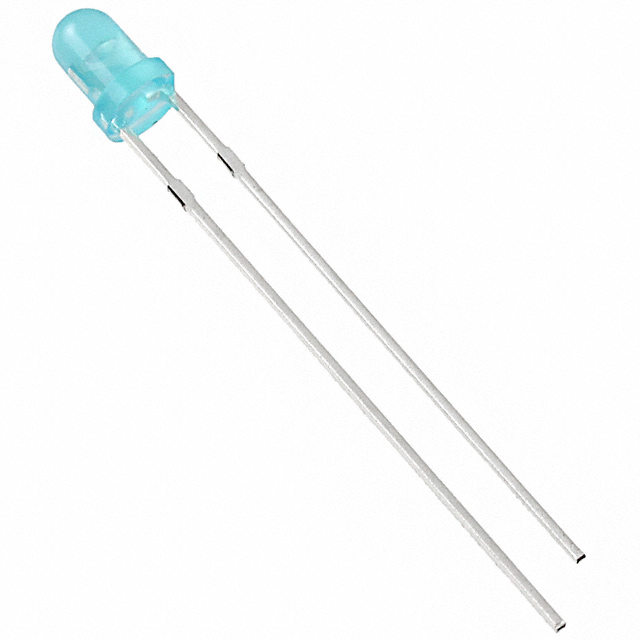

Visual Communications Company - VCC VAOL-3LSBY1	60 °	Round with Domed Top	3.5 V	Through Hole	Diffused	Blue	Standard	White	20 mA	1200 mcd	Radial	5.55 mm	2.9 mm	470 nm

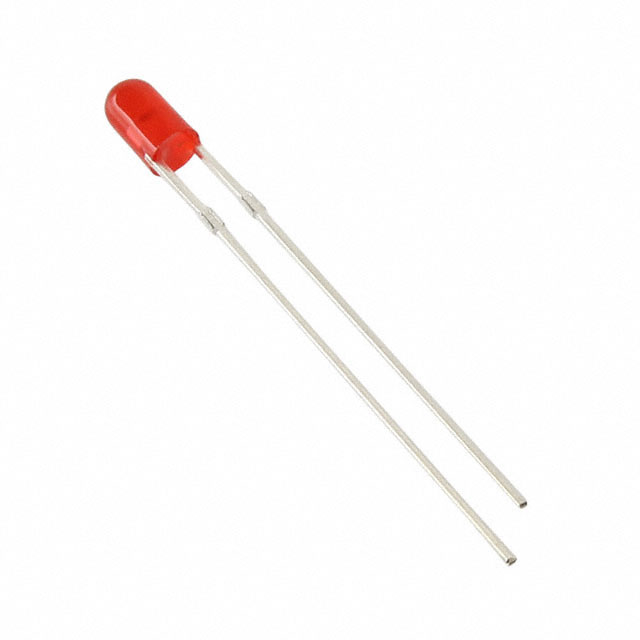

Visual Communications Company - VCC VAOL-3MAE2		Round with Domed Top	1.8 V	Through Hole	Diffused	Red	Standard	Red	20 mA	80 mcd	Radial		3 mm	640 nm								5.1 mm

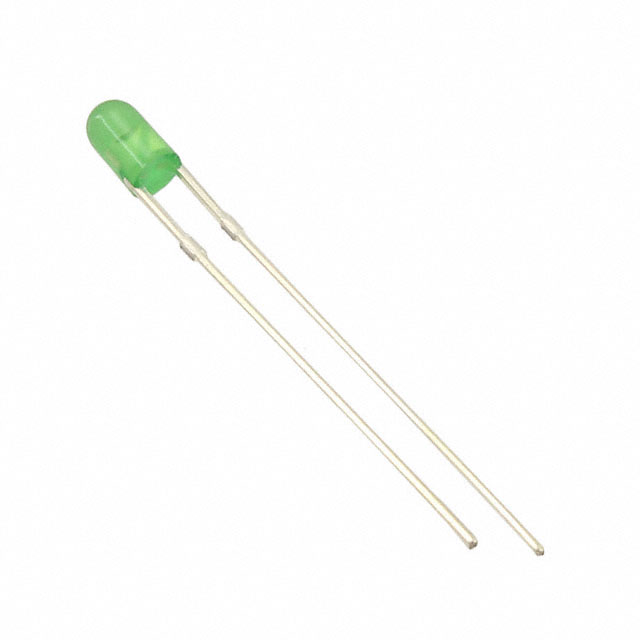

Visual Communications Company - VCC VAOL-3MDE2		Round with Domed Top	2.2 V	Through Hole	Diffused	Green	Standard	Green	20 mA	80 mcd	Radial		3 mm	570 nm								5.1 mm

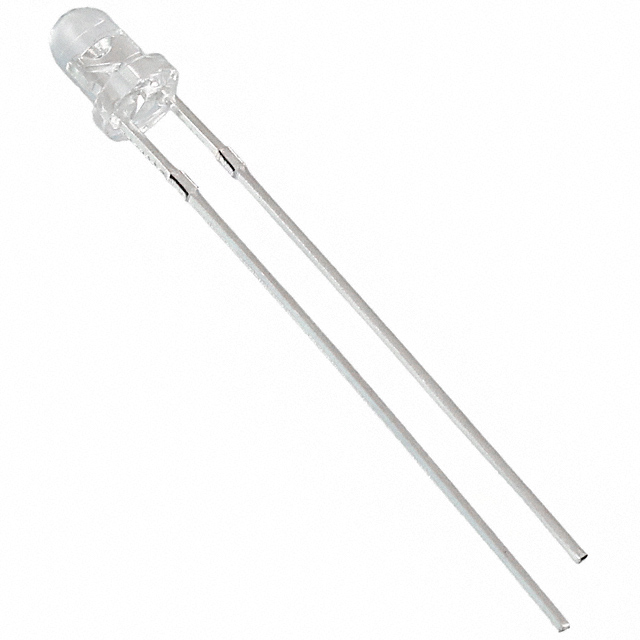

Visual Communications Company - VCC VAOL-3GWY4	30 °	Round with Domed Top	3.5 V	Through Hole	Clear	White	Standard	Colorless	20 mA	3500 mcd	Radial	5.55 mm	2.9 mm
Visual Communications Company - VCC VAOL-3MWY4	60 °	Round with Domed Top	3.5 V	Through Hole	Clear	White	Standard	Colorless	20 mA	2500 mcd	Radial	5.25 mm	3 mm
