222D121 Series

Catalog

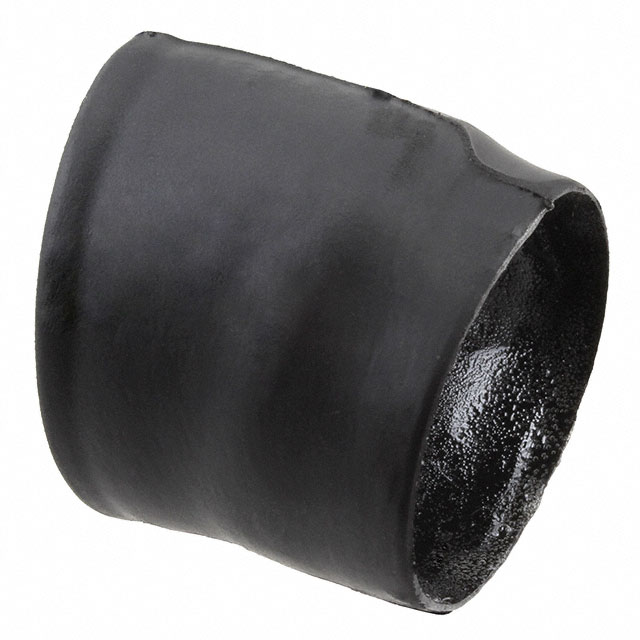

HEATSHRINK BOOT R/A SZ21 BLACK

Part	Shell Size - Insert	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Small Recovered Length	Small Recovered Length	Large Recovered Length	Large Recovered Length	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Material	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Color	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Type
TE Connectivity Aerospace, Defense and Marine 222D121-4/42-0	21	10.39 mm	0.409 in	0.579 "	14.71 mm	0.89 in	22.61 mm	0.921 in	23.39 mm	Polyolefin (PO) Flexible	23.39 mm	0.921 in	Black	5.59 mm	0.22 "	Boot - 90°
TE Connectivity Aerospace, Defense and Marine 222D121-12-0-CS5354
TE Connectivity Aerospace, Defense and Marine 222D121-100/180-0	21	10.41 mm	0.41 in	0.58 in	14.73 mm	0.89 in	22.61 mm			Polyolefin (PO) Semi-Flexible Halogen Free	13.97 mm	0.55 in	Black	5.59 mm	0.22 "	Boot - 90°
TE Connectivity Aerospace, Defense and Marine 222D121-25-0	21	10.39 mm	0.409 in	0.579 "	14.71 mm	0.89 in	22.61 mm	0.921 in	23.39 mm	Elastomer Fluid Resistant	23.39 mm	0.921 in	Black	5.59 mm	0.22 "	Boot - 90°
TE Connectivity Aerospace, Defense and Marine 222D121-4-60/42-0-CS5078
TE Connectivity Aerospace, Defense and Marine 222D121-3-0	21	10.39 mm	0.409 in	0.579 "	14.71 mm	0.89 in	22.61 mm	0.921 in	23.39 mm	Polyolefin (PO) Semi-Rigid	23.39 mm	0.921 in	Black	5.59 mm	0.22 "	Boot - 90°
