TR9KG4000 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

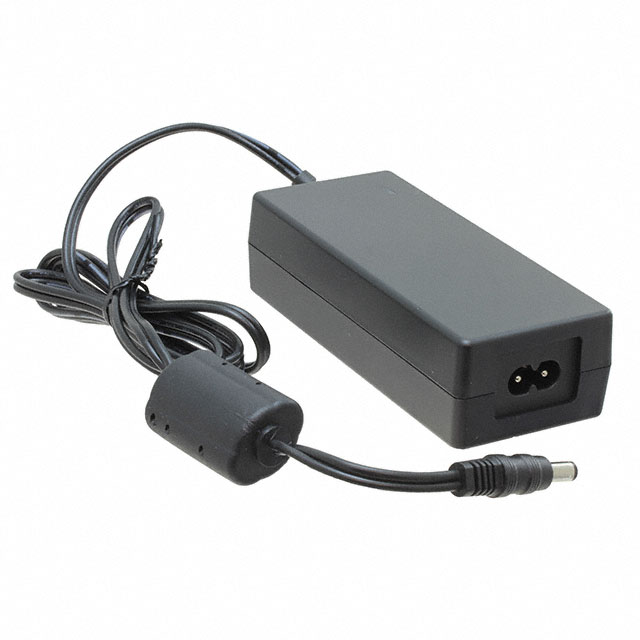

AC/DC DESKTOP ADAPTER 15V 60W
| Part | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output (Max) [Max] | No Load Power Consumption | Output Connector [diameter] | Output Connector | Output Connector [x] | Polarization | Form | Voltage - Output | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Applications | Power (Watts) | Approval Agency | Efficiency | Input Type | Input Connector | Standard Number | Cord Length | Cord Length | Region Utilized |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | 264 VAC | 90 VAC | 4 A | 150 mW | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | Positive Center | Desktop (Class II) | 15 V | 40 °C | 0 °C | 1.3 in | 121 mm | 4.76 " | 2.05 in | 33 mm | 52 mm | Household Appliances ITE (Commercial) | 60 W | CB CCC CE cULus EAC FCC GS LPS PSE RCM UkrSEPRO VCCI | Level VI | Cord (Sold Separately) | IEC 320-C8 | 60335-1 60950-1 | 1.2 m | 47.2 in | International |
