DA03-11 Series

Catalog

DISPLAY 7-SEG 0.3" DBL RED 10DIP

Part	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Display Type	Wavelength - Peak	Current - Test	Number of Characters	Power Dissipation (Max) [Max]	Color	Millicandela Rating	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Forward (Vf) (Typ)
Kingbright DA03-11SURKWA	Common Anode	7.62 mm	0.3 in	7-Segment	645 nm	20 mA	2	75 mw	Red	47 mcd	10-DIP (0.400" 10.16mm)	15 mm	7.2 mm	0.61 in	15.5 mm	0.591 in	0.283 in	1.95 V
Kingbright DA03-11SYKWA	Common Anode	7.62 mm	0.3 in	7-Segment	590 nm	20 mA	2	75 mw	Yellow	54 mcd	10-DIP (0.400" 10.16mm)	15 mm	7.2 mm	0.61 in	15.5 mm	0.591 in	0.283 in	2 V
Kingbright DA03-11SRWA	Common Anode	7.62 mm	0.3 in	7-Segment	660 nm	20 mA	2	75 mw	Red	15 mcd	10-DIP (0.400" 10.16mm)	15.5 mm	15 mm	0.283 "	7.2 mm	0.61 in	0.591 in	1.85 V

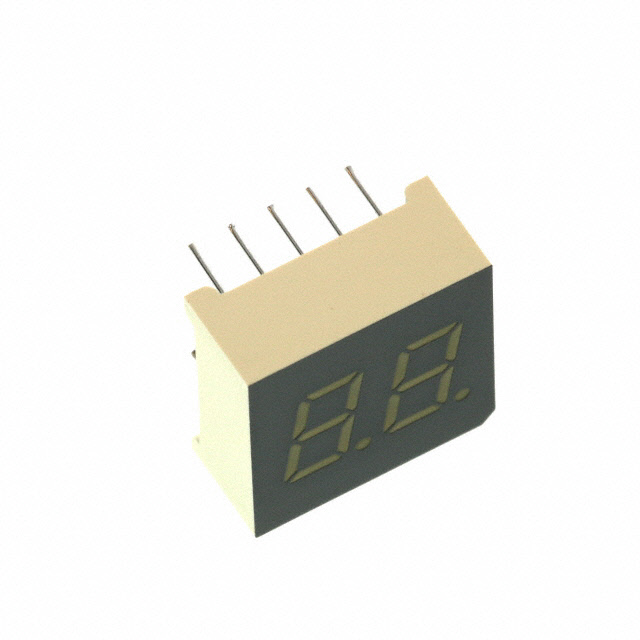

Kingbright DA03-11EWA	Common Anode	7.62 mm	0.3 in	7-Segment	627 nm	20 mA	2	75 mw	Red	3.1 mcd	10-DIP (0.400" 10.16mm)	15.5 mm	15 mm	0.283 "	7.2 mm	0.61 in	0.591 in	2 V
Kingbright DA03-11YWA	Common Anode	10 mm	0.39 in	7-Segment	590 nm	20 mA	2	75 mw	Yellow	2.2 mcd	10-DIP (0.400" 10.16mm)	15.5 mm	15 mm	0.283 "	7.2 mm	0.61 in	0.591 in	2.1 V
Kingbright DA03-11CGKWA	Common Anode	7.62 mm	0.3 in	7-Segment		20 mA	2	75 mw	Green	16 mcd	10-DIP (0.400" 10.16mm)	15 mm	7.2 mm	0.61 in	15.5 mm	0.591 in	0.283 in	2.1 V
