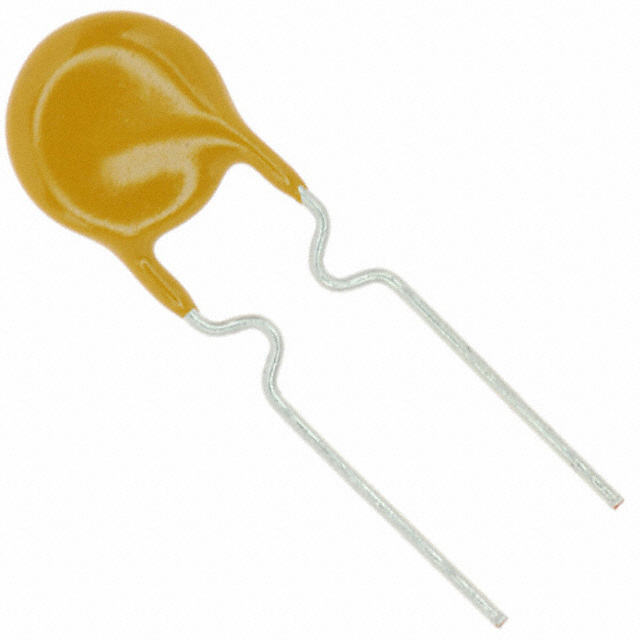

MF-R050 Series

Catalog

PTC RESET FUSE 60V 500MA RADIAL

Part	Approval Agency	Resistance - Initial (Ri) (Min) [Min]	Current - Max [Max]	Current - Hold (Ih) (Max) [Max]	Resistance - Post Trip (R1) (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Type	Lead Spacing	Lead Spacing	Voltage - Max [Max]	Current - Trip (It)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Time to Trip	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
Bourns Inc. MF-R050-AP-99	cURus TUV	410 mOhms	40 A	500 mA	1.17 Ohms	7.9 mm	0.122 in	0.311 in	3.1 mm	Polymeric	0.201 in	5.1 mm	60 V	1 A	0.539 in	13.7 mm	4 s	Disc Radial	85 °C	-40 C	Through Hole
Bourns Inc. MF-R050-0-99	cURus TUV	410 mOhms	40 A	500 mA	1.17 Ohms	7.9 mm	0.122 in	0.311 in	3.1 mm	Polymeric	0.201 in	5.1 mm	60 V	1 A	0.539 in	13.7 mm	4 s	Disc Radial	85 °C	-40 C	Through Hole
