AO42 Series

Manufacturer: Alpha & Omega Semiconductor Inc.

Catalog

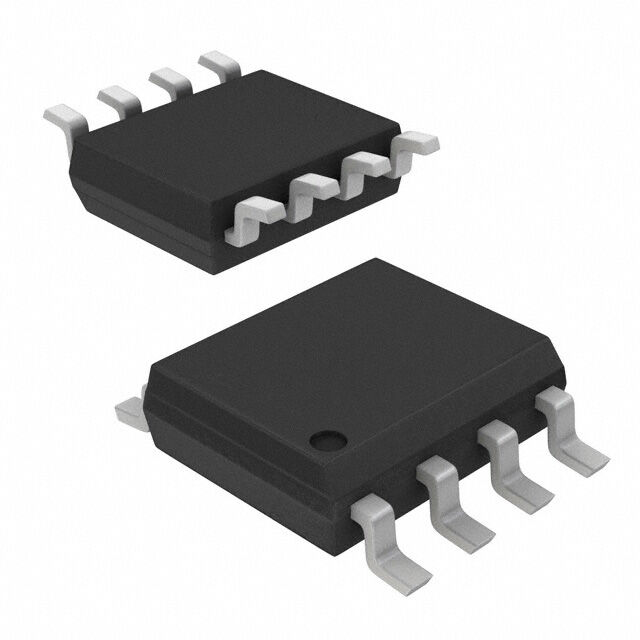

MOSFET N-CHANNEL 60V 16.5A 8SO

Part	Drive Voltage (Max Rds On, Min Rds On)	Gate Charge (Qg) (Max) @ Vgs	Mounting Type	Package / Case	Package / Case	Package / Case	Vgs (Max)	Supplier Device Package	Technology	Input Capacitance (Ciss) (Max) @ Vds	FET Type	Operating Temperature [Max]	Operating Temperature [Min]	Power Dissipation (Max)	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]
Alpha & Omega Semiconductor Inc. AO4262E	4.5 V 10 V	25 nC	Surface Mount	0.154 in	8-SOIC	3.9 mm	20 V	8-SO	MOSFET (Metal Oxide)	1652 pF	N-Channel	150 °C	-55 °C	3.1 W	2.2 V	60 V	16.5 A	6.5 mOhm
Alpha & Omega Semiconductor Inc. AO4268	4.5 V 10 V		Surface Mount	0.154 in	8-SOIC	3.9 mm	20 V	8-SOIC	MOSFET (Metal Oxide)		N-Channel	150 °C	-55 °C	3.1 W	2.3 V	60 V	19 A	4.8 mOhm	2500 pF	65 nC
Alpha & Omega Semiconductor Inc. AO4202	4.5 V 10 V		Surface Mount	0.154 in	8-SOIC	3.9 mm	20 V	8-SOIC	MOSFET (Metal Oxide)		N-Channel	150 °C	-55 °C	3.1 W	2.3 V	30 V	19 A	5.3 mOhm		35 nC
Alpha & Omega Semiconductor Inc. AO4260	4.5 V 10 V	100 nC	Surface Mount	0.154 in	8-SOIC	3.9 mm	20 V	8-SOIC	MOSFET (Metal Oxide)		N-Channel	150 °C	-55 °C	3.1 W	2.4 V	60 V	18 A	5.2 mOhm	4940 pF
Alpha & Omega Semiconductor Inc. AO4290A	4.5 V 10 V	95 nC	Surface Mount	0.154 in	8-SOIC	3.9 mm	20 V	8-SOIC	MOSFET (Metal Oxide)	4525 pF	N-Channel	150 °C	-55 °C	3.1 W	2.3 V	100 V	15.5 A	6.4 mOhm
Alpha & Omega Semiconductor Inc. AO4296	4.5 V 10 V	60 nC	Surface Mount	0.154 in	8-SOIC	3.9 mm	20 V	8-SOIC	MOSFET (Metal Oxide)		N-Channel	150 °C	-55 °C	3.1 W	2.3 V	100 V	13.5 A	8.3 mOhm	3130 pF
Alpha & Omega Semiconductor Inc. AO4266E	4.5 V 10 V		Surface Mount	0.154 in	8-SOIC	3.9 mm	20 V	8-SO	MOSFET (Metal Oxide)		N-Channel	150 °C	-55 °C	3.1 W	2.2 V	60 V	11 A	13.5 mOhm	755 pF	10 nC
Alpha & Omega Semiconductor Inc. AO4266	4.5 V 10 V	30 nC	Surface Mount	0.154 in	8-SOIC	3.9 mm	20 V	8-SOIC	MOSFET (Metal Oxide)	1340 pF	N-Channel	150 °C	-55 °C	3.1 W	2.5 V	60 V	10 A	15 mOhm
