CE2 Series
Manufacturer: JAE Electronics
Beta
⌘K
AUTOMOTIVE CONNECTORS SM COAXIAL CONN W/COAXIAL CBL
| Part | Pin or Socket | Contact Termination | Contact Finish | Type | Insulation Height [z] | Insulation Height [z] | Features | Number of Positions | Contact Finish - Mating | Number of Positions Loaded | Fastening Type | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Style | Contact Shape | Insulation Material | Insulation Color | Contact Length - Post | Contact Length - Post | Contact Type | Termination | Contact Material | Mounting Type | Shrouding | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

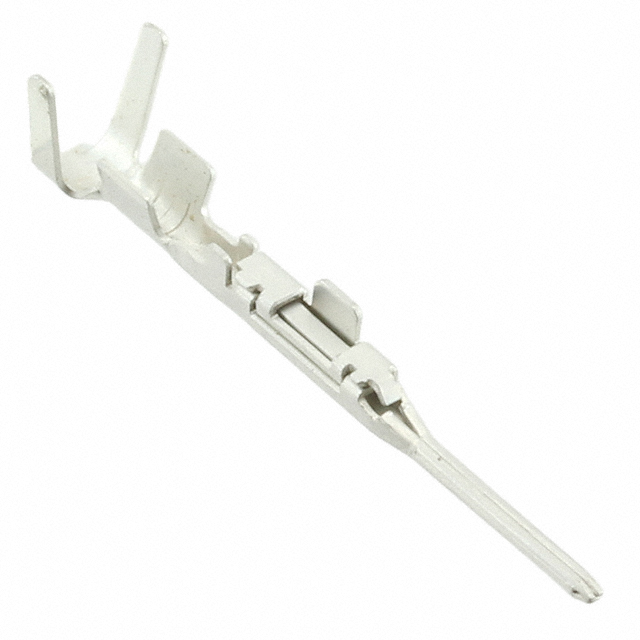

 JAE Electronics | Pin | Crimp | Tin | Power | ||||||||||||||||||||||
 JAE Electronics | 11.45 mm | 0.451 in | Board Guide Bracket | 1 | Gold Tin | All | Latch Holder | Header | -30 ░C | 70 °C | Board to Cable/Wire | Circular | Polybutylene Terephthalate (PBT) Glass Filled | Gray | 0.118 in | 3 mm | Coaxial Male Pin | Solder | Copper Alloy | Right Angle Through Hole | Shrouded - 4 Wall | Tin |
