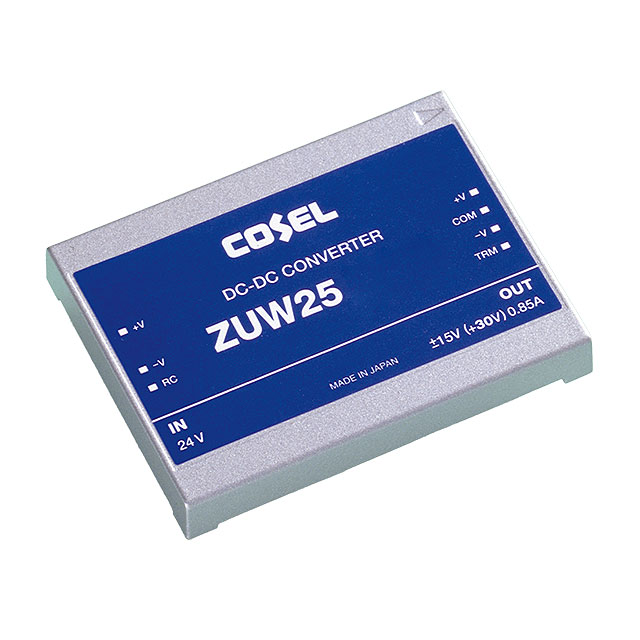

ZUW252412 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
DC DC CONVERTER +/-12V 24V 25W
| Part | Voltage - Output 1 | Mounting Type | Current - Output (Max) | Operating Temperature [Min] | Operating Temperature [Max] | Type | Efficiency | Number of Outputs | Power (Watts) | Package / Case | Voltage - Input (Max) [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Applications | Voltage - Input (Min) [Min] | Voltage - Output 2 | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 12 V | Through Hole | 1.05 A | -20 °C | 71 °C | Isolated Module | 85 % | 2 | 25 W | 7-DIP Module | 36 V | 50 mm | 1.97 in | 8.5 mm | 2.56 in | 0.33 in | 65 mm | ITE (Commercial) | 18 V | -12 V | 500 V |
