DI048N04 Series

Catalog

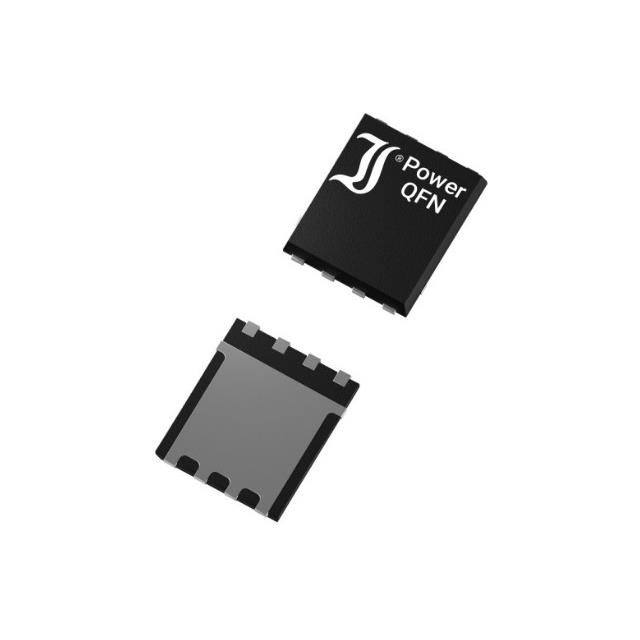

MOSFET, POWERQFN 5X6, 40V, 48A,

Part	Package / Case	Configuration	Power - Max [Max]	Mounting Type	Technology	Grade	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds	Qualification	Supplier Device Package	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Max]	Operating Temperature [Min]	Rds On (Max) @ Id, Vgs
Diotec Semiconductor DI048N04PQ2-AQ	8-PowerVDFN	2 N-Channel (Dual)	27 W	Surface Mount	MOSFET (Metal Oxide)	Automotive	2.5 V	40 V	48 nC	2270 pF	AEC-Q101	TDSON-8-4	48 A	150 °C	-55 °C	9.6 mOhm
