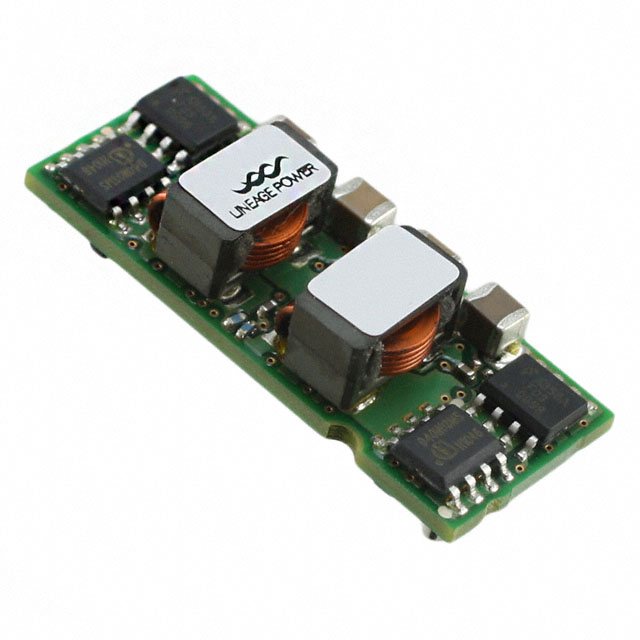

ATH030 Series
Non-Isolated DC/DC Converters 0.8-3.63Vout 30A SMT 4.5-5.5Vin CrntShare
Manufacturer: OmniOn Power™
Catalog
Non-Isolated DC/DC Converters 0.8-3.63Vout 30A SMT 4.5-5.5Vin CrntShare
Beta
⌘K
Non-Isolated DC/DC Converters 0.8-3.63Vout 30A SMT 4.5-5.5Vin CrntShare
Non-Isolated DC/DC Converters 0.8-3.63Vout 30A SMT 4.5-5.5Vin CrntShare
Non-Isolated DC/DC Converters 0.8-3.63Vout 30A SMT 4.5-5.5Vin CrntShare
| Part | Mounting Type | Number of Outputs | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Current - Output (Max) [Max] | Applications | Voltage - Input (Min) [Min] | Package / Case | Power (Watts) | Efficiency | Type | Control Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Features | Voltage - Output 1 [Max] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | Surface Mount | 1 | 0.8 V | 3.63 V | 30 A | ITE (Commercial) | 4.5 V | Module | 109 W | 92.2 % | Non-Isolated PoL Module | Active Low Enable | 85 °C | -40 C | 5.5 V | OCP OTP Remote On/Off UVLO | |||||||
OmniOn Power™ | Surface Mount | 1 | 0.8 V | 30 A | ITE (Commercial) | 4.5 V | 10-SMD Module | 100 W | 92.2 % | Non-Isolated PoL Module | Active Low Enable | 85 °C | -40 C | 5.5 V | OCP OTP Remote On/Off UVLO | 3.6 V | 33 mm | 1.3 in | 0.36 in | 9.1 mm | 0.53 in | 13.5 mm | |
OmniOn Power™ | Surface Mount | 1 | 0.8 V | 30 A | ITE (Commercial) | 4.5 V | 10-SMD Module | 100 W | 92.2 % | Non-Isolated PoL Module | Active Low Enable | 85 °C | -40 C | 5.5 V | OCP OTP Remote On/Off UVLO | 3.6 V | 33 mm | 1.3 in | 0.36 in | 9.1 mm | 0.53 in | 13.5 mm |
