430112 Series

Catalog

CONN BARRIER STRP 24CIRC 0.438"

Part	Operating Temperature	Material Flammability Rating	Terminal Screw Material	Material - Insulation	Mounting Type	Terminal Screw Finish	Current Rating (Amps)	Number of Circuits	Barrier Type	Wire Gauge [Max]	Wire Gauge [Min]	Pitch [x]	Pitch [x]	Features	Number of Rows	Terminal Block Type	Top Termination	Voltage Rating	Bottom Termination	Number of Wire Entries
Curtis Industries 430112-24-0	105 C	UL94 V-0	Brass	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	20 A	24	2 Wall (Dual)	22 AWG	12 AWG	0.438 in	11.12 mm	Flange	1	Barrier Block	Screws	600 V	PC Pin
Curtis Industries 430112-26-0	105 C	UL94 V-0	Brass	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	20 A	26	2 Wall (Dual)	22 AWG	12 AWG	0.438 in	11.12 mm	Flange	1	Barrier Block	Screws	600 V	PC Pin	26
Curtis Industries 430112-15-0	105 C	UL94 V-0	Brass	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	20 A	15	2 Wall (Dual)	22 AWG	12 AWG	0.438 in	11.12 mm	Flange	1	Barrier Block	Screws	600 V	PC Pin	15
Curtis Industries 430112-13-0	105 C	UL94 V-0	Brass	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	20 A	13	2 Wall (Dual)	22 AWG	12 AWG	0.438 in	11.12 mm	Flange	1	Barrier Block	Screws	600 V	PC Pin	13
Curtis Industries 430112-17-0	105 C	UL94 V-0	Brass	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	20 A	17	2 Wall (Dual)	22 AWG	12 AWG	0.438 in	11.12 mm	Flange	1	Barrier Block	Screws	600 V	PC Pin	17
Curtis Industries 430112-06-0	105 C	UL94 V-0	Brass	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	20 A	6	2 Wall (Dual)	22 AWG	12 AWG	0.438 in	11.12 mm	Flange	1	Barrier Block	Screws	600 V	PC Pin	6
Curtis Industries 430112-14-0	105 C	UL94 V-0	Brass	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	20 A	14	2 Wall (Dual)	22 AWG	12 AWG	0.438 in	11.12 mm	Flange	1	Barrier Block	Screws	600 V	PC Pin	14
Curtis Industries 430112-16-0	105 C	UL94 V-0	Brass	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	20 A	16	2 Wall (Dual)	22 AWG	12 AWG	0.438 in	11.12 mm	Flange	1	Barrier Block	Screws	600 V	PC Pin	16
Curtis Industries 430112-11-0	105 C	UL94 V-0	Brass	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	20 A	11	2 Wall (Dual)	22 AWG	12 AWG	0.438 in	11.12 mm	Flange	1	Barrier Block	Screws	600 V	PC Pin	11

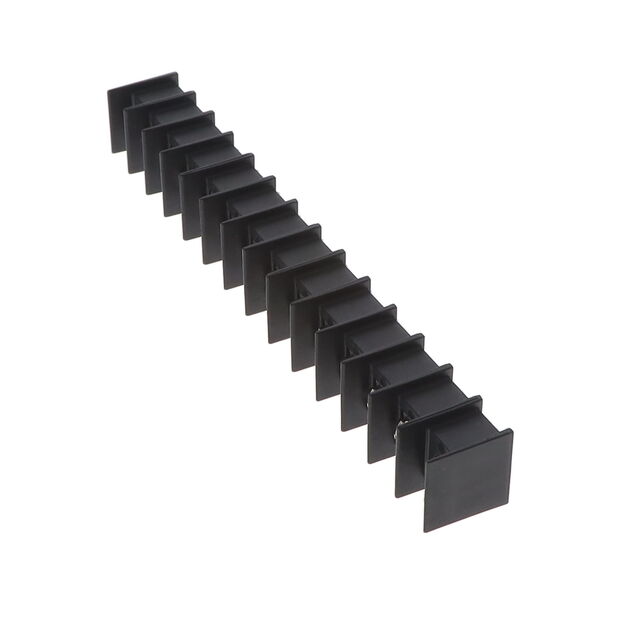

Curtis Industries 430112-12-0	105 C	UL94 V-0	Brass	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	20 A	12	2 Wall (Dual)	22 AWG	12 AWG	0.438 in	11.12 mm	Flange	1	Barrier Block	Screws	600 V	PC Pin	12
