3609-3 Series

Catalog

CONN PC PIN CIRC .080DIA GOLD

Part	Termination	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]	Contact Finish	Terminal Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Above Flange [x]	Length - Above Flange	Insulation	Contact Material	Length - Overall [x]	Length - Overall [x]	Terminal Style	Mounting Type	Pin Size - Above Flange	Pin Size - Above Flange [diameter]	Length - Below Flange [x]	Length - Below Flange [x]	Contact Finish Thickness	Contact Finish Thickness

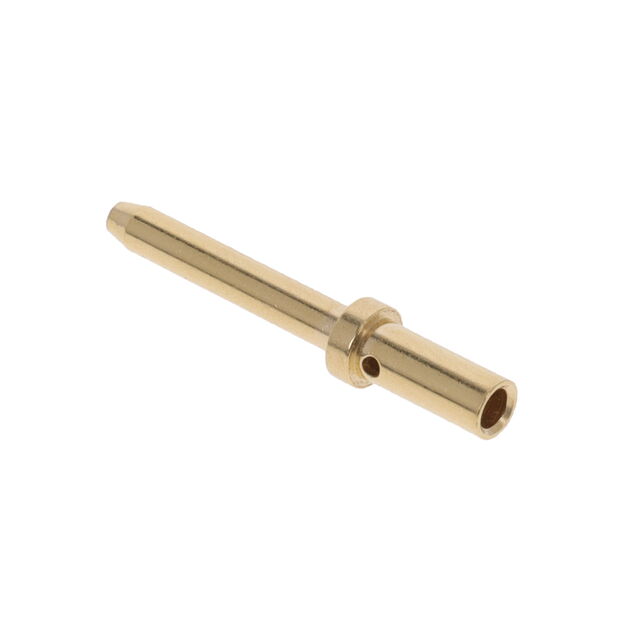

Mill-Max Manufacturing Corp. 3609-3-07-15-00-00-08-0	Crimp	0.103 in	2.62 mm	Gold	PC Pin	0.142 in	3.61 mm	0.5 in	12.7 mm	Non-Insulated	Brass Alloy	20.22 mm	0.796 in	Wire	Free Hanging (In-Line)	2.03 mm	0.08 in	6.35 mm	0.25 "	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 3609-3-07-80-00-00-08-0	Crimp	0.103 in	2.62 mm	Tin	PC Pin	0.142 in	3.61 mm	0.5 in	12.7 mm	Non-Insulated	Brass	20.22 mm	0.796 in	Wire	Free Hanging (In-Line)	2.03 mm	0.08 in	6.35 mm	0.25 "	5.08 Ám	200 Áin

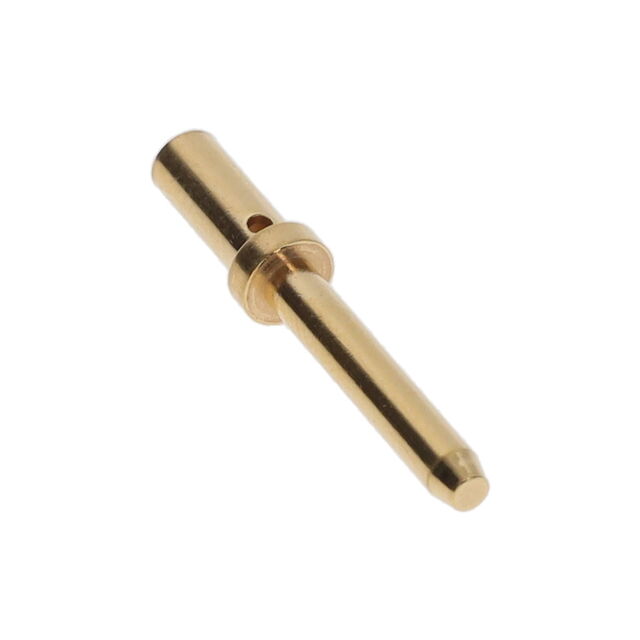

Mill-Max Manufacturing Corp. 3609-3-07-34-00-00-08-0	Crimp	0.103 in	2.62 mm	Gold	PC Pin	0.142 in	3.61 mm	0.5 in	12.7 mm	Non-Insulated	Brass Alloy	20.22 mm	0.796 in	Wire	Free Hanging (In-Line)	2.03 mm	0.08 in	6.35 mm	0.25 "	1.27 µm	50 µin
