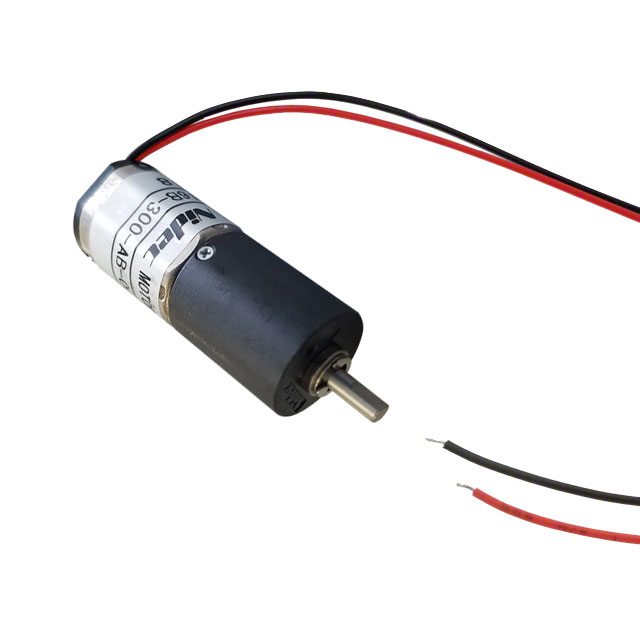

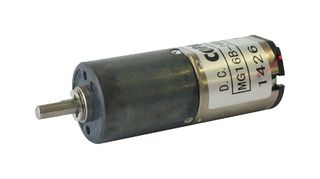

MG16B Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
DC GEARED MOTOR, 60:1, 213RPM, 60MN-M ROHS COMPLIANT: YES
| Part | Torque - Max Momentary (oz-in / mNm) [custom] | Torque - Max Momentary (oz-in / mNm) [custom] | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Size / Dimension [diameter] | Size / Dimension | Size / Dimension [diameter] | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Gear Reduction Ratio | RPM | Voltage - Rated | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Termination Style | Type | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 8.5 oz-in | 60 mNm | 10 mm | 0.394 " | 0.629 in | Round | 16 mm | 0.118 in | 3 mm | 0.433 in | 11 mm | 60 | 160 RPM | 6 VDC | 5.66 oz-in | 40 mNm | Wire Leads | DC Motor | ||
 Nidec Components Corporation | 10 mm | 0.394 " | 0.629 in | Round | 16 mm | 0.118 in | 3 mm | 0.433 in | 11 mm | 34 RPM | 12 VDC | 22.7 oz-in | 160 mNm | Wire Leads | DC Motor | 33.99 oz-in | 240 mNm | |||
 Nidec Components Corporation | 8.5 oz-in | 60 mNm | 10 mm | 0.394 " | 0.629 in | Round | 16 mm | 0.118 in | 3 mm | 0.433 in | 11 mm | 60 | 160 RPM | 12 VDC | 5.66 oz-in | 40 mNm | Wire Leads | DC Motor | ||
Nidec Components Corporation | 10 mm | 0.394 " | 0.629 in | Round | 16 mm | 0.118 in | 3 mm | 0.433 in | 11 mm | 34 RPM | 6 VDC | 22.7 oz-in | 160 mNm | Wire Leads | DC Motor | 33.99 oz-in | 240 mNm | |||
Nidec Components Corporation | 10 mm | 0.394 " | 0.629 in | Round | 16 mm | 0.118 in | 3 mm | 0.433 in | 11 mm | 120 | 100 RPM | 12 VDC | 8.5 oz-in | 60 mNm | Wire Leads | DC Motor | ||||
Nidec Components Corporation | 10 mm | 0.394 " | 0.629 in | Round | 16 mm | 0.118 in | 3 mm | 0.433 in | 11 mm | 30 | 380 RPM | 12 VDC | 2.83 oz-in | 20 mNm | Wire Leads | DC Motor | 4.25 oz-in | 30 mNm | ||
 Nidec Components Corporation | 10 mm | 0.394 " | 0.629 in | Round | 16 mm | 0.118 in | 3 mm | 0.433 in | 11 mm | 30 | 380 RPM | 6 VDC | 2.83 oz-in | 20 mNm | Wire Leads | DC Motor | 4.25 oz-in | 30 mNm | ||
Nidec Components Corporation | 10 mm | 0.394 " | 0.629 in | Round | 16 mm | 0.118 in | 3 mm | 0.433 in | 11 mm | 240 | 40 RPM | 12 VDC | Wire Leads | DC Motor | 25.49 oz-in | 180 mNm | ||||
Nidec Components Corporation | 10 mm | 0.394 " | 0.629 in | Round | 16 mm | 0.118 in | 3 mm | 0.433 in | 11 mm | 240 | 40 RPM | 6 VDC | Wire Leads | DC Motor | 25.49 oz-in | 180 mNm |
