DC0011/08 Series

Catalog

THERM PAD 19.05MMX12.7MM W/ADH

Part	Shelf Life	Shelf Life Start	Color	Outline [x]	Outline [y]	Thermal Conductivity	Shape	Type	Usage	Thickness	Thickness	Adhesive	Material	Backing, Carrier	Thickness

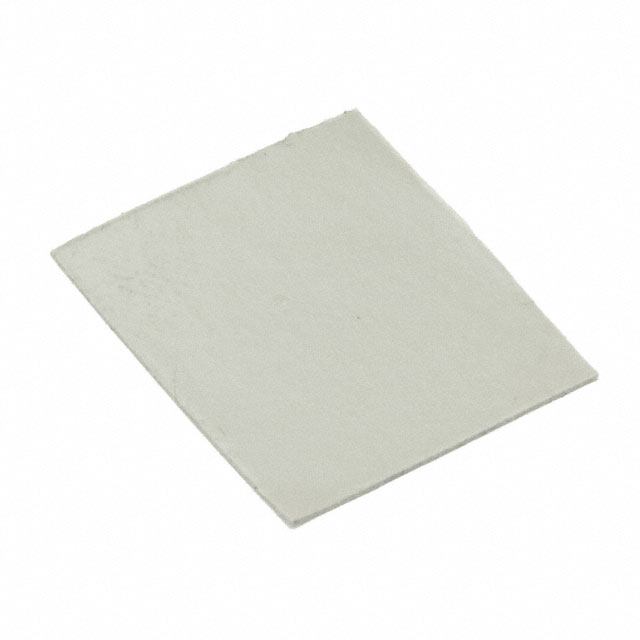

t-Global Technology DC0011/08-TG-A486G-0.3-2A	12 Months	Date of Purchase	Gray	19.05 mm	12.7 mm	6 W/m-K	Rectangular	Die-Cut Pad Sheet	TO-220	0.305 mm	0.012 in	Adhesive - Both Sides

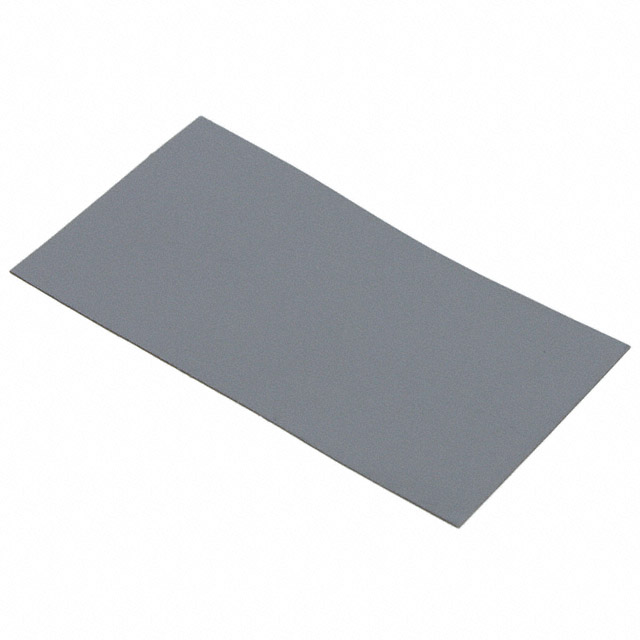

t-Global Technology DC0011/08-TI900-0.12-2A	24 Months		White	19.05 mm	12.7 mm	1.8 W/m-K	Rectangular	Die-Cut Pad Sheet	TO-220	5 mils	0.005 in	Adhesive - Both Sides	Silicone	Viscose
t-Global Technology DC0011/08-TG-A482K-0.1-0	24 Months	Date of Purchase	Red	19.05 mm	12.7 mm	2.3 W/m-K	Rectangular	Die-Cut Pad Sheet	TO-220	0.1 mm	0.0039 in		Silicone

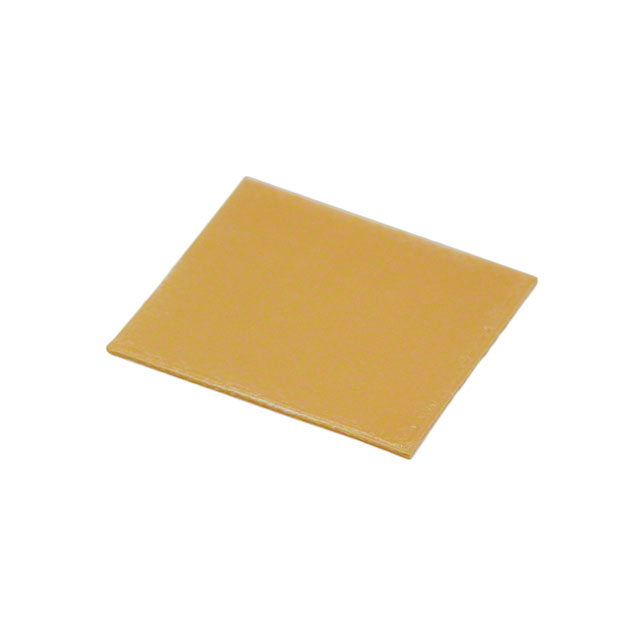

t-Global Technology DC0011/08-TG-A373F-0.25-2A	12 Months		Yellow	19.05 mm	12.7 mm	1.4 W/m-K	Rectangular	Die-Cut Pad Sheet	TO-220	10 mils		Adhesive - Both Sides			0.01 in
t-Global Technology DC0011/08-TI900-0.12-0	24 Months		White	19.05 mm	12.7 mm	1.8 W/m-K	Rectangular	Die-Cut Pad Sheet	TO-220	5 mils	0.005 in		Silicone	Viscose
